Ford Freestar HVAC Blower Motor Resistor Guide (2004-2007)
If your Freestar's fan only works on high, this guide explains the likely cause and how to fix it.
- The most likely cause for your Freestar's fan only working on high is a failed blower motor resistor.
- This is an easy and inexpensive DIY repair located behind the glove box.
- Always inspect the wiring connector for melting or damage; replace it with a pigtail kit if necessary.
- Consider replacing the blower motor at the same time if it's old or noisy to prevent repeat resistor failure.
Is Your Ford Freestar's Fan Acting Up?
A common and well-documented issue on the 2004-2007 Ford Freestar with manual climate controls is a problem with the HVAC fan. The most frequent complaint is that the fan will only blow air on the highest setting, while the lower speeds do nothing. 🎬 Watch: Troubleshooting a Ford fan that only works on certain speeds This is a classic sign that the blower motor resistor has failed. This component is responsible for regulating the fan's speed, and when it burns out, only the high-speed setting—which bypasses the resistor—will function.
Check the Wiring Harness, Too
When a blower motor resistor fails, it's often due to overheating. This heat can damage the electrical connector (pigtail) attached to it, causing it to melt or become brittle. Before ordering a new resistor, inspect the wiring harness. If it looks burnt, melted, or corroded, you should replace it at the same time. Many aftermarket brands offer kits that include both the resistor and a new pigtail harness.
Choosing the Right Aftermarket Resistor
For a vehicle like the Freestar, the difference between an OEM Motorcraft part and a quality aftermarket part is often minimal for a component like a resistor. The key is to avoid the cheapest, no-name options, as they may fail prematurely. Aftermarket brands offer a good balance of quality and value.
Brand Tiers for Your Consideration

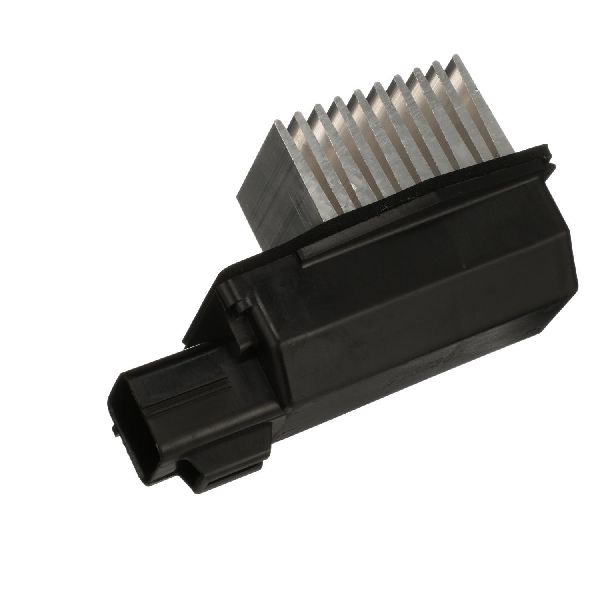

- Premium Aftermarket (e.g., Standard Motor Products, Dorman): These brands are well-regarded in the aftermarket industry. They often match OEM specifications and sometimes include improvements to the original design. Dorman, for example, frequently sells kits that include the wiring pigtail, which is a common failure point.

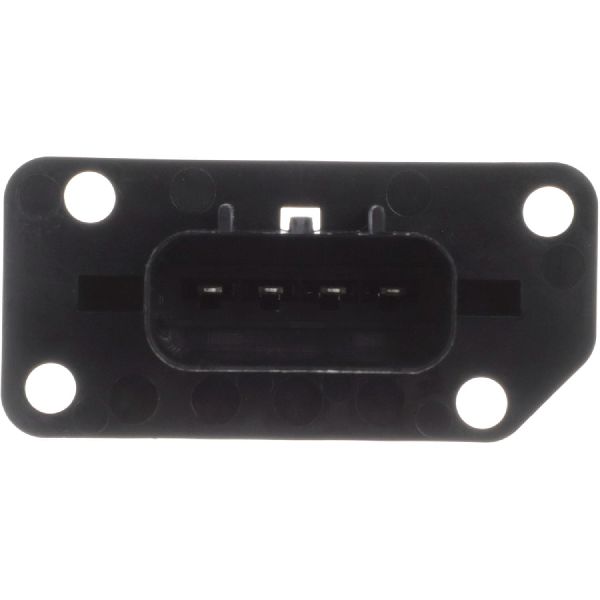

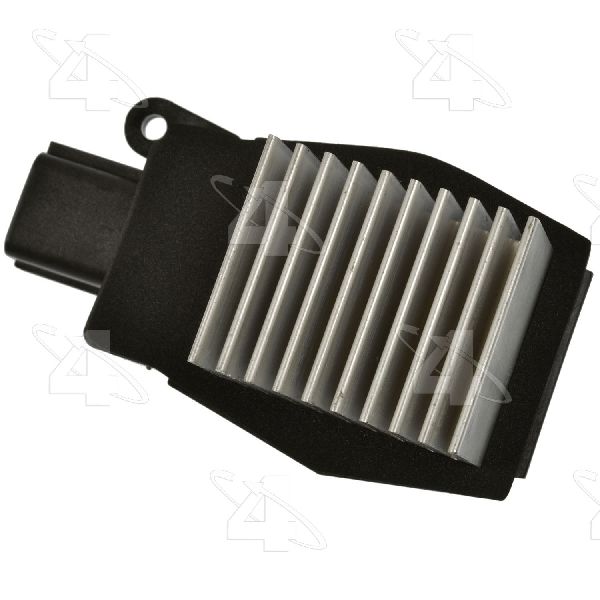

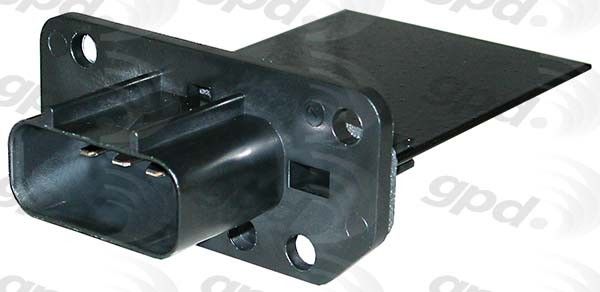

- Standard Aftermarket (e.g., Four Seasons, Global Parts, True Tech): These brands provide a reliable, budget-friendly alternative. They are a solid choice for a daily driver and are often readily available. While some forum users express mixed opinions on Four Seasons for more complex parts, for a simple resistor, they are generally considered adequate.
- OEM (Motorcraft): While this guide focuses on aftermarket, it's worth noting that the Motorcraft part is the original equipment. It guarantees a perfect fit and function but comes at a significantly higher price. For this specific part, a quality aftermarket option often provides better value.
| Part Category | Estimated Price Range |
|---|---|
| New Aftermarket Resistor | $27.18 - $75.00 |
| New Aftermarket Resistor & Pigtail Kit | $45.00 - $90.00 |
| New OEM (Motorcraft) Resistor | $37.00 - $71.00 |
| Shop Labor for Installation | $75.00 - $150.00 |
Pro Tip: Consider Replacing the Blower Motor
A failing blower motor can draw too much electrical current, causing the new resistor to overheat and fail prematurely. If your Freestar has high mileage or if the fan was noisy before it failed, it's wise to replace the blower motor at the same time as the resistor. This can save you from having to do the job twice.
🎬 Watch: Pro tips to prevent your new resistor from failing againFrequently Asked Questions (FAQ)
Why do my Freestar's fan speeds 1, 2, and 3 not work, but high does?
This is the most common symptom of a failed blower motor resistor. The lower speeds require the resistor to reduce electrical current. The highest speed sends full power directly to the fan, bypassing the resistor entirely. When the resistor burns out, only the direct, high-speed connection still works.
Is it difficult to replace the blower motor resistor on a 2004-2007 Ford Freestar?
No, this is considered an easy DIY repair. The resistor is located behind the glove box and is typically held in by two screws. You'll need to lower or remove the glove box for access. The entire job can usually be completed in under an hour with basic hand tools like an 8mm socket or wrench.
🎬 See this step-by-step walkthrough for replacing the blower motor resistorAre there any recalls for the Ford Freestar blower motor resistor?
There are no specific recalls for the blower motor resistor on the 2004-2007 Ford Freestar. Searches on the NHTSA database show recalls for blower motors on other Ford models like the Ranger and Expedition, but not for the resistor on the Freestar.
Should I buy the resistor alone or a kit with the wiring harness?
Always inspect the connector first. If you see any signs of melting, charring, or corrosion on the plastic connector or wires, buy the kit that includes a new pigtail harness. A bad connection will cause the new resistor to fail quickly. If the connector looks pristine, you can likely get by with replacing just the resistor.
Helpful Videos
Technical Specifications

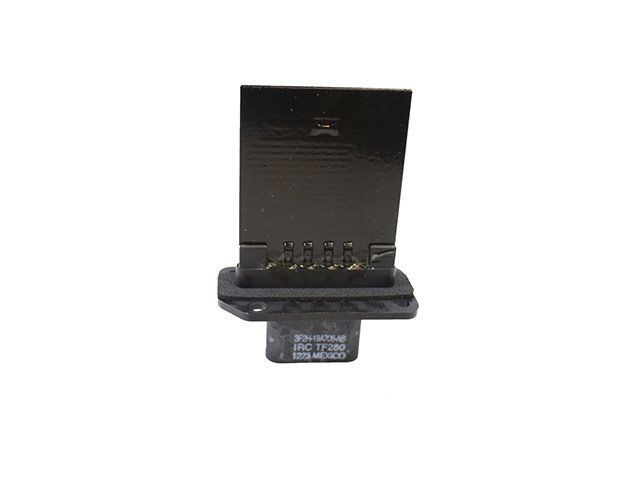

OEM Part Numbers: 3F2Z18591AA 3F2Z18591BA 4P1361 RU431
Controls fan speed for vehicles with manual A/C controls. Located in the passenger side dashboard behind the glove box.
