Ford Freestar Spark Plug Replacement Guide (2004-2007)
Everything you need to know about choosing and replacing the spark plugs in your V6 Freestar.
- The main difficulty is accessing the three rear spark plugs; removing the wiper cowl is necessary.
- Consider replacing spark plug wires and the ignition coil at the same time to avoid future labor.
- Using long-life iridium plugs is a good investment due to the high labor involved in the replacement.
- Motorcraft is the OEM brand, but NGK and Denso are highly recommended aftermarket alternatives.
Signs of a Bad Spark Plug in Your Freestar
Worn-out spark plugs can cause several noticeable problems. If you experience a rough idle, where the engine shakes or sputters when you're stopped, it could be a sign of a failing plug. You might also notice the engine hesitating or stumbling during acceleration. A common symptom is the check engine light coming on, often with a code indicating a misfire on one or more cylinders, like P0301, P0302, etc. Other signs include reduced fuel economy and difficulty starting the engine.

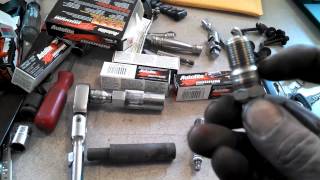

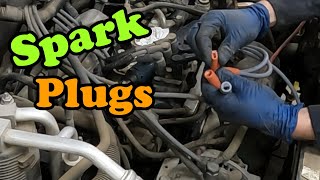

🎬 Watch a full step-by-step spark plug replacement and tune-up guide.The Biggest Challenge: Replacing the Rear Plugs
For 2004-2007 Ford Freestar models with the 3.9L or 4.2L V6 engine, the spark plug replacement job is famous for one thing: the difficult-to-access rear plugs. The front three plugs (cylinders 4, 5, and 6) are relatively easy to get to. However, the rear three plugs (cylinders 1, 2, and 3) are tucked away against the firewall, making them nearly impossible to reach without extra steps. To get the necessary clearance, you must remove the plastic wiper cowl assembly at the base of the windshield. 🎬 See how to remove the cowl to access the rear plugs. This involves taking off the wiper arms and several plastic clips and bolts, but it makes the job much more manageable.
Pro Tip: While You're In There
Since accessing the rear plugs is so labor-intensive, it's highly recommended to replace the spark plug wires and the ignition coil pack at the same time, especially if your van has over 75,000 miles. This can save you from having to do the same difficult job twice if another ignition component fails soon after.
Choosing the Right Aftermarket Spark Plugs
You have several good options for aftermarket spark plugs for your Freestar. Your choice often comes down to budget and how long you want the plugs to last.
- OEM-Equivalent Quality (Good): Motorcraft is Ford's own brand, and it's what your van came with from the factory. Brands like Autolite are also traditional choices for Ford vehicles and offer reliable performance. These are often platinum plugs that provide a good balance of performance and longevity.
- Enhanced Performance (Better): Brands like NGK and Denso are highly regarded in the aftermarket. Many owners and mechanics prefer NGK plugs, sometimes even over the OEM brand, for their reliability. They offer platinum and iridium options.
- Long-Life/High-Performance (Best): Iridium spark plugs from brands like NGK or Denso offer the longest service life, often up to 100,000 miles. Given the difficulty of changing the rear plugs on a Freestar, spending a little extra on long-life iridium plugs can be a smart investment to avoid the job for as long as possible.
Spark Plug Cost Overview
| Quality Tier | Common Brands | Price Range (Per Plug) |
|---|---|---|
| Good (Platinum) | Motorcraft, Autolite | $3.72 - $10.00 |
| Better (Double Platinum) | Bosch, Champion, NGK | $6.00 - $15.00 |
| Best (Iridium) | NGK, Denso | $12.00 - $20.64 |
Frequently Asked Questions (FAQ)
Do I really need to remove the wiper cowl to change the rear plugs?
Yes. While it might seem like a lot of extra work, nearly every owner and mechanic agrees that removing the cowl is the easiest and fastest way to get the space you need to work on the rear bank of cylinders.
Should I use anti-seize on the new spark plugs?
This is a topic of debate. Some mechanics recommend a small amount of copper-based anti-seize on the plug threads to make future removal easier. However, many modern spark plugs have a special plating that prevents seizing, and manufacturers like NGK advise against using anti-seize. If you do use it, apply only a tiny amount to the threads, avoiding the electrode.
What is dielectric grease for?
Dielectric grease should be applied to the inside of the spark plug wire boot before connecting it to the plug. It does not help conduct electricity; instead, it seals out moisture and prevents the boot from getting stuck to the spark plug's ceramic insulator.
Are there any recalls for Ford Freestar spark plugs?
No, there are no specific recalls issued by the NHTSA for spark plug-related issues on the 2004-2007 Ford Freestar. Some general Ford TSBs exist for diagnosing misfires, but none target the Freestar's spark plugs directly.
Helpful Videos
Technical Specifications
OEM Part Numbers: AGSF-32FM SP-432 AGSF-42FM AGSF-34N
The 2004-2007 Ford Freestar uses a 14mm thread spark plug with a tapered seat. The V6 engines (3.9L and 4.2L) require 6 spark plugs. The job requires a spark plug socket, extensions, and basic hand tools to remove the wiper cowl.
