A Guide to the 2004-2007 Mercury Monterey Power Steering Pressure Switch
Understanding why your Monterey may stall or leak fluid when you turn the steering wheel.
- Engine stalling when turning at low speeds is a primary symptom of a failing power steering pressure switch.
- Before suspecting a major component, check the switch and its electrical connector for power steering fluid leaks.
- Replacement is simple, inexpensive, and a common DIY repair for Monterey owners.
- Be aware of the separate, serious recall for the power steering pressure *hose* which can cause a fire hazard.
Is Your Monterey Stalling or Leaking Power Steering Fluid?
If you own a 2004-2007 Mercury Monterey, you have a hydraulic power steering system. This system uses fluid under high pressure to make steering easy. A common point of failure in this system is the power steering pressure switch. While a small part, a bad switch can cause some confusing symptoms that you might not immediately connect to your power steering.
Top Failure Symptoms
- Engine Stalling When Turning: The most common sign of a bad switch is the engine RPM dropping, stumbling, or stalling completely when you turn the steering wheel at idle or low speeds. This happens because the switch isn't telling the engine to compensate for the extra load.
- Fluid Leaking from the Switch: These switches are known to fail by leaking power steering fluid. The leak often comes directly through the body of the switch and out of the electrical connector. 🎬 Watch: See how a switch leaks through the connector You may notice a wet, oily area on the power steering lines or drips on the ground.
- Whining or Groaning Noises: If the switch leaks enough fluid, the power steering pump will run low. When air gets into the system, the pump will make a distinct whining or groaning noise that gets louder when you turn the wheel.
- Erratic Idle: Sometimes, a failing switch can send faulty signals, causing the engine idle to surge up and down unexpectedly as the computer tries to adjust.
Important Safety Warning: Related Power Steering Hose Recall
There is a critical safety recall (NHTSA Campaign ID: 03V457000) for some 2004 Mercury Monterey vans concerning the power steering pressure hose. This recall notes that the hose can detach, leaking power steering fluid onto hot exhaust components, which poses a significant fire risk. While this is not a recall for the switch itself, it is vital to have your vehicle checked to see if it is affected, especially if you notice any power steering fluid leaks. Contact a Ford or Lincoln/Mercury dealership with your VIN to check the status of this recall.
Choosing the Right Aftermarket Switch
When replacing the power steering pressure switch, you don't need to buy an expensive OEM part from the dealer. Quality aftermarket brands offer reliable replacements that meet or exceed original specifications. The key is choosing a brand with a good reputation.
- Professional-Grade Brands (Standard Ignition): Brands like Standard Motor Products (SMP) are well-regarded by professional mechanics. They are known for using high-quality materials and performing extensive testing to ensure their parts fit and function like the original. Choosing a brand like this is a good investment in reliability.
- Value-Oriented Brands (True Tech): True Tech is a brand offered by Standard that provides a more budget-friendly option. These parts offer a functional replacement at a lower price point, making them a good choice for drivers looking to save on repairs without sacrificing immediate function.
Pro Tip: A leaking power steering pressure switch is a very common issue on Ford and Mercury vehicles of this era. Before assuming a more expensive part like the power steering pump or rack and pinion has failed, carefully inspect the switch and its electrical connector for any signs of fluid wetness. This simple check can save you hundreds of dollars in unnecessary repairs.
Expected Replacement Costs
Replacing the power steering pressure switch is an affordable repair. The part itself is not expensive, and the labor is minimal due to its easy accessibility.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $32.25 - $64.92 |
| New OEM Switch | $40 - $70 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $82 - $165 |
Cost estimates are approximate and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Can I replace the power steering pressure switch myself?
Yes, this is a great DIY job for a beginner. The switch is typically screwed into the power steering line and can be replaced with a basic wrench. You will need to place a rag underneath to catch a small amount of fluid, unscrew the old switch, quickly screw the new one in, and reconnect the electrical plug. Afterwards, check and top off your power steering fluid.
🎬 See this replacement walkthrough for a similar Ford systemWhat happens if I ignore a bad power steering switch?
If the switch is causing stalling, it can be a safety hazard, especially in low-speed turns or parking lots. If it's leaking, you risk running the power steering pump dry, which can cause permanent damage to the pump, leading to a much more expensive repair. It's best to replace it as soon as you confirm it has failed.
How do I know it's the switch and not the power steering pump?
A bad pump typically causes a constant whining noise, bubbles in the fluid reservoir, and consistently stiff steering. A bad switch is more directly linked to engine stalling when turning or a specific fluid leak from the switch itself. If your steering is fine but the engine stumbles when you turn the wheel, the switch is the most likely culprit.
Will a bad power steering pressure switch turn on the Check Engine Light?

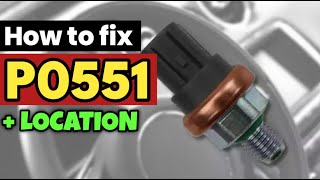

Yes, it can. If the vehicle's computer detects an irrational signal or a short in the switch's circuit, it may trigger the Check Engine Light. A common trouble code associated with this failure is P0551.

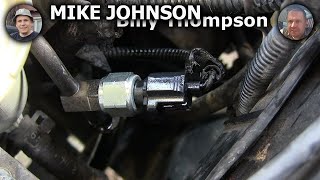

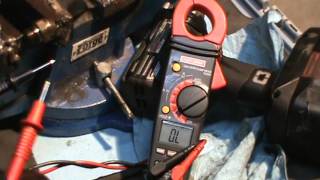

🎬 Watch: Understanding fault code P0551 and sensor issues explainedHelpful Videos
Technical Specifications
Connector Type: 2-Pin Rectangular. Aftermarket Part Numbers may include: Standard PSS4T, Carquest PSA1012.
