A Comprehensive Guide to the 2004-2008 Audi A6 Brake Light Switch
Solve common and confusing electrical problems by understanding this critical but inexpensive part in your A6.
- A faulty brake light switch is a very common cause of an illuminated EPC light on a 2004-2008 Audi A6.
- Symptoms extend beyond brake lights, often causing the inability to shift from Park and disabling cruise control.
- Replacement is a simple, low-cost DIY job that can be done in under an hour with basic tools.
- Choosing a quality aftermarket brand like Vemo or Rostra is a reliable and cost-effective alternative to OEM.
Symptoms of a Failing Brake Light Switch
When the brake light switch on a C6 generation Audi A6 begins to fail, it can cause a number of confusing problems. Recognizing these symptoms can save you from a difficult and expensive misdiagnosis.
- Dashboard Warning Lights: The most common and specific symptom for this Audi is the illumination of the EPC (Electronic Power Control) light on your dashboard. You may also see warning lights for the ABS and ESP (traction control) systems.
- Brake Light Issues: Your brake lights may not turn on when you press the pedal, which is a major safety hazard. Alternatively, they might stay on all the time, even when the car is off, which can drain your battery.
- Transmission Stuck in Park: The car has a safety feature called a shift interlock that prevents you from shifting out of Park unless the brake pedal is pressed. A bad switch won't send the signal, leaving you unable to shift into Drive or Reverse.
- Cruise Control Problems: The cruise control system may not engage at all, or it might shut off unexpectedly while you are driving.
The EPC Light Explained
The EPC light is a warning specific to Volkswagen and Audi vehicles. It signals a problem with the throttle system or other electronic sensors, like the brake light switch. If the engine computer gets a conflicting signal from the brake switch, it may trigger the EPC light and reduce engine power to protect the vehicle.
🎬 Watch: How to quickly diagnose and reset your Audi EPC light.Choosing the Right Aftermarket Part
For a critical electronic sensor like this, the quality of the replacement part matters. While an OEM part is always an option, several reputable aftermarket brands offer reliable replacements that meet or exceed original specifications. Given the high failure rate of the original part, a quality aftermarket unit is a smart choice.
Here’s a look at the available brands:
- Vemo: Often considered a premium aftermarket brand, Vemo specializes in electronics and sensors for German vehicles. They are known for producing parts to high-quality standards, sometimes marked with a 'Q+' seal indicating they are made to original equipment quality. This is a top-tier choice for this repair.
- Rostra Powertrain: Rostra is a certified manufacturer that produces parts for both original equipment and the aftermarket. They have a strong reputation for quality electronic components and sensors, making them a very reliable option.
- Standard Ignition (SMP): Standard is one of the largest and most established aftermarket parts producers in North America. They offer a wide range of reliable components that serve as a solid, dependable replacement.
- Facet: Facet is generally seen as a quality, budget-friendly option. User reviews are mostly positive, with many noting it as a perfect replacement part that solves their issues. They state their parts are designed to meet OE standards.
Pro Tip: Avoid unbranded, low-cost switches from online marketplaces. A faulty replacement can fail quickly and bring back the same frustrating electronic issues. Sticking with a recognized brand is worth the small extra cost for peace of mind.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or Technical Service Bulletins (TSBs) for a faulty brake light switch on the 2004-2008 Audi A6. However, owner forums and mechanic discussions frequently cite this switch as a common failure point responsible for EPC lights and other electrical gremlins.
Installation Overview
Replacing the brake light switch is a straightforward job that most DIYers can handle in under an hour with basic tools.
- Access the Switch: You will need to remove the lower dash panel located beneath the steering wheel. This is typically held in place by several 8mm bolts. 🎬 See this step-by-step walkthrough for replacing the brake light switch.
- Remove the Old Switch: The switch is located at the top of the brake pedal arm. First, unplug the electrical connector. Then, turn the switch (usually clockwise) to release it from its mounting bracket and pull it out.
- Install the New Switch: Insert the new switch and turn it counter-clockwise until it clicks into place. Reconnect the electrical harness.
- Reassemble and Test: Reinstall the lower dash panel. Before starting the car, have someone confirm that the brake lights work correctly when you press the pedal. Start the car and check that all warning lights have turned off.
Cost of Replacing the Brake Light Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $21.77 - $65.03 |
| New OEM Part | $70 - $120 |
| Shop Labor | $60 - $120 |
| Total (Aftermarket DIY) | $21.77 - $65.03 |
| Total (Aftermarket Installed) | $82 - $185 |
Frequently Asked Questions
Can I replace the brake light switch myself?
Yes, this is a very DIY-friendly repair. It requires basic hand tools, like an 8mm socket and a screwdriver, and can typically be completed in under an hour. The main challenge is working in the tight space 🎬 Watch: A visual guide to accessing the brake pedal sensor. of the driver's footwell.
Why did my EPC light come on from a bad brake light switch?
Your Audi's engine computer uses the brake switch signal to manage engine power and other systems. If the signal is missing or incorrect, the computer sees a conflict, assumes there is a serious fault in the power control system, and illuminates the EPC light as a precaution.
Is an OEM switch better than an aftermarket one for my A6?
Not necessarily. The original OEM switches are known to fail. A high-quality aftermarket part from a reputable brand like Vemo or Rostra can be just as reliable, if not more so, and is more cost-effective. The key is to choose a good brand, not just the cheapest part available.
What happens if I ignore a bad brake light switch?
Ignoring it is a bad idea. At best, you will be annoyed by warning lights and the inability to use cruise control. At worst, your brake lights won't work, creating a serious safety risk for you and other drivers, or you could be stranded when you can't shift the car out of Park.
Helpful Videos

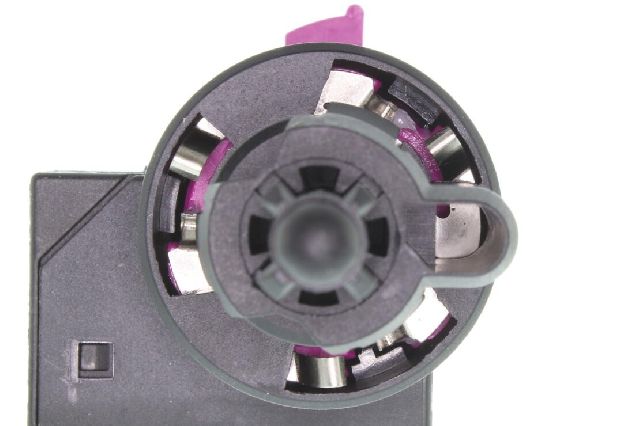

Technical Specifications
OEM Part Numbers: 3B0945511C
Typically a 4-pin, pushrod-style switch located on the brake pedal bracket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
