Chevrolet Optra Starter Motor Guide for 2004-2008 Models
Diagnose and choose the right replacement starter to fix starting problems on your 2004-2008 Chevrolet Optra.
- A single, loud click with no engine crank is the most common sign of a bad starter on the Optra.
- Always test the battery first, as a weak battery is the most frequent cause of starting issues.
- Replacement is difficult due to the starter's location on the back of the engine; professional installation is recommended for most owners.
- A new aftermarket starter from a reputable brand provides the best combination of cost and reliability for this vehicle.
Is Your Optra's Starter Failing?
When a starter motor begins to fail, it gives several warning signs. For the 2004-2008 Chevrolet Optra, the most common symptom is a single, loud click from the engine bay when you turn the key, but the engine doesn't crank. This happens because the starter's solenoid is engaging, but the motor itself isn't turning. Don't confuse this with a rapid, fast clicking sound, which almost always points to a weak or dead battery.
🎬 Watch: Learn how to identify common symptoms of a bad starter.Before you decide to replace the starter, it's critical to rule out other issues. A weak battery is the number one cause of starting problems. Always test your battery and check that the battery terminals are clean and tight. 🎬 See this easy way to diagnose a failing starter motor. Also, inspect the electrical cables going to the starter for corrosion or looseness.
Common Ordering Mistakes & Vehicle Notes
Pro Tip: The 2004-2008 Chevrolet Optra shares its platform with the Suzuki Forenza (2004-2008) and Suzuki Reno (2005-2008). This means that starters listed for these Suzuki models are often the exact same part and will fit your Optra. This can expand your options when searching for a replacement.
🎬 Watch: This Suzuki starter replacement walkthrough applies to your Optra.Choosing a New Aftermarket Starter
For a vehicle like the 2004-2008 Optra, a new aftermarket starter offers a great balance of value and reliability. The original GM starter has likely been in the car for over a decade, and modern aftermarket parts often meet or exceed original specifications. Brands like MPA are designed to provide OE-level fit and function. When shopping, you don't need the most expensive option, but avoid the absolute cheapest parts from unknown sellers, as quality can be inconsistent. A new part from a reputable aftermarket brand like MPA provides peace of mind with a fresh service life and no core charge hassles.
Known Issues, Recalls, or TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA or General Motors related to the starter motor for the 2004-2008 Chevrolet Optra. Starting problems on these cars are typically due to normal wear and tear on components like the starter, battery, or alternator.
Cost for Chevrolet Optra Starter Replacement
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket (MPA, etc.) | $108 - $166 | $180 - $300 | $288 - $466 |
| New OEM (GM Genuine) | $250 - $400+ | $180 - $300 | $430 - $700+ |
| Remanufactured | $90 - $150 | $180 - $300 | $270 - $450 |
Cost estimates are for reference only and may vary based on location, part availability, and vehicle condition.
Frequently Asked Questions (FAQ)
Where is the starter located on a 2004-2008 Chevy Optra?
The starter motor is located on the back of the engine, near the firewall. Its position makes replacement challenging, as the top mounting bolt can be difficult to reach without the right tools.
Can a bad starter drain my battery?
Yes. A failing starter with an internal short circuit or one that is struggling to turn the engine can draw excessive current from the battery. This can drain the battery quickly and even cause the starter to overheat, sometimes producing a burning smell.
Is it hard to replace the Optra starter myself?
Yes, this is considered a difficult DIY job for a beginner. While the steps are straightforward (disconnect battery, remove cables, unbolt starter), the tight access on the back of the engine makes it frustrating. A professional mechanic can typically complete the job in 1.5 to 2.5 hours.
My lights come on but the car won't start. Is it the starter?
It's a strong possibility. If the dashboard lights and radio work normally but the engine won't crank at all (or you just hear a single click), the starter is a primary suspect. This indicates the battery has power, but the starter isn't using it to turn the engine.
Helpful Videos
Technical Specifications

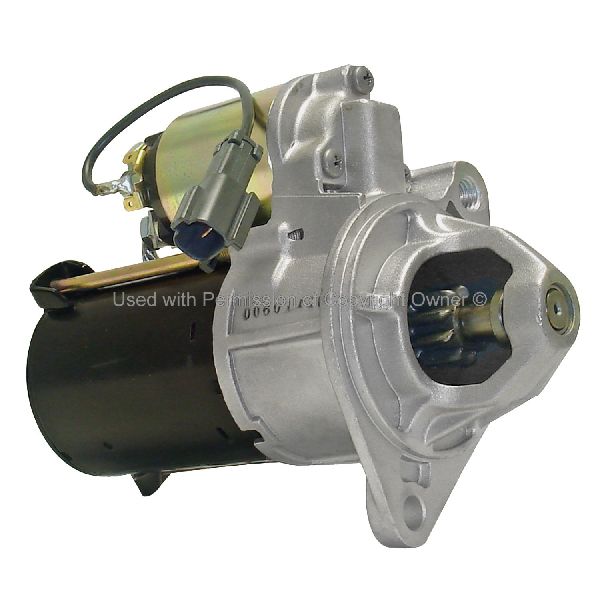

OEM Part Numbers: 96450547 96473777 31100-85Z00
Voltage: 12V, Power Rating: 1.2 kW or 1.4 kW, Rotation: Clockwise, Number of Teeth: 9.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
