A Ford Mechanic's Guide to the 2004-2008 E-150 Econoline Ignition Coil
Diagnose and choose the right replacement ignition coil for your 4.6L or 5.4L Econoline van.
- A flashing check engine light means stop driving as soon as safely possible to prevent expensive catalytic converter damage.
- To save money without sacrificing quality, choose Denso-branded coils, as they are often the OEM manufacturer for Motorcraft.
- Always use compressed air to clean out the spark plug wells before removing old coils to prevent misfires from trapped moisture.
- Replacing all eight coils at once is recommended on higher-mileage vans to save on future labor and ensure consistent performance.
Is Your E-150's Ignition Coil Failing?
Ignition coil failures are common on the Ford Triton engines (4.6L and 5.4L) used in these vans. The symptoms are usually easy to spot. You'll likely feel a stumble or hesitation from the engine, especially when you're accelerating or climbing a hill. This is called a misfire. Other signs include a rough idle, poor fuel economy, and the Check Engine Light coming on.
🎬 Watch: A breakdown of common ignition coil failure symptomsFlashing Check Engine Light: If your check engine light is flashing, it signals a severe misfire. This can quickly overheat and destroy your expensive catalytic converters. If you see a flashing light, reduce your speed and avoid heavy acceleration until you can get it repaired.
Diagnosing the Bad Coil
A code scanner is the fastest way to find the problem. Codes like P0301, P0302, through P0308 point to a misfire in a specific cylinder (P0301 is cylinder #1, P0302 is cylinder #2, and so on). A code like P0351 directly indicates a problem with the ignition coil circuit for cylinder #1. A simple DIY diagnostic trick is to swap the suspected bad coil with a coil from a different cylinder. For example, if you have a P0302 code, swap the coil from cylinder #2 with the coil from cylinder #1. Clear the codes and drive the van. If the code changes to P0301, you've confirmed the coil is the problem.
🎬 See how to diagnose and fix a P0301 misfire codeOEM vs. Aftermarket Coils for Your Econoline
When shopping for a replacement, you'll find a wide range of quality and price. For these Ford vans, the brand you choose matters.

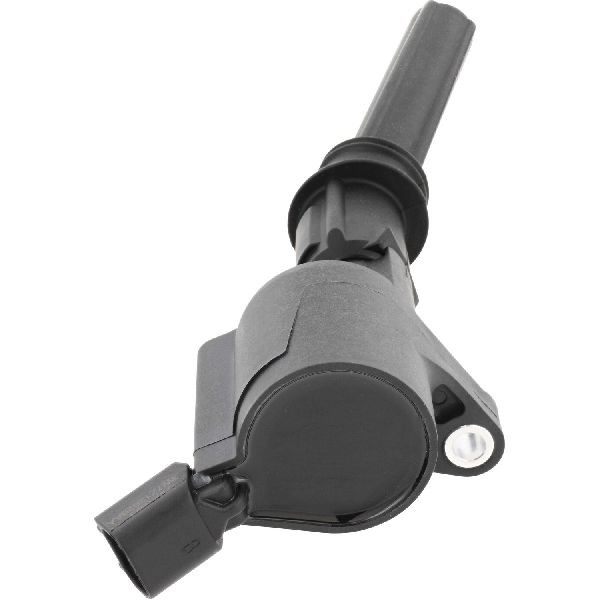

- Tier 1 - OEM & OEM-Equivalent: The original factory coils are Motorcraft, which are known for their reliability but are the most expensive option. However, many sources indicate that Denso is the original manufacturer for the Motorcraft DG508 coil. Buying a Denso-branded coil often gets you the exact same part as the Motorcraft, but for a much lower price.

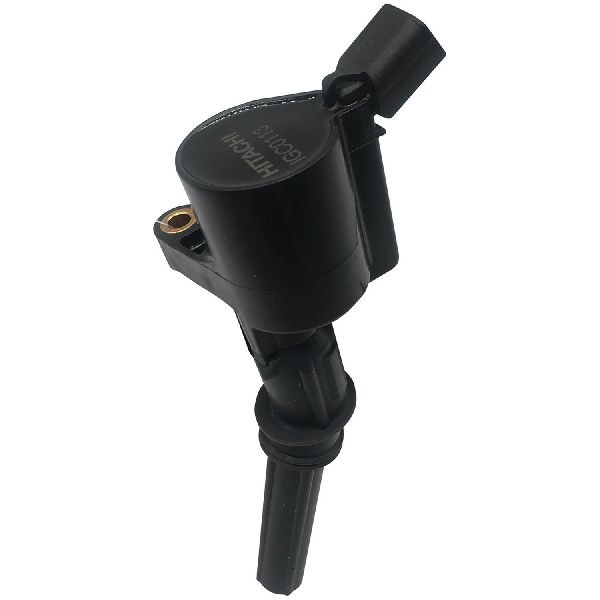

- Tier 2 - Reputable Aftermarket: Brands like Delphi, Hitachi, and Standard Ignition (SMP) have a strong reputation. Delphi is a major OEM supplier and their coils are well-regarded for quality and durability. Hitachi is also an OEM supplier, primarily for Japanese vehicles, and generally makes quality parts. Standard Motor Products is a long-time aftermarket manufacturer; their standard red-box parts are generally considered reliable, though their budget 'T-Series' line has more mixed reviews.
- Tier 3 - Value Brands: This category includes brands like Spectra, Edelbrock, Holstein, WAI Global, and Walker Products. While the low price is tempting, especially when buying a full set of eight, quality can be inconsistent. Some owners report premature failures with value-priced coils, leading to repeated repairs. If your budget is tight, these can get you back on the road, but they may not last as long as a higher-tier part.
Common Problems & Pro Tips
The ignition coils on the E-150 sit deep in the engine, making them prone to a specific issue. Moisture from rain, humidity, or even washing the engine can collect in the spark plug wells. This moisture can cause the spark to ground out, creating a misfire even if the coil itself is good.
Pro Tip: Whenever you replace a coil, use compressed air to blow any debris and moisture out of the spark plug well before removing the old coil. Apply a small amount of dielectric grease to the inside of the new coil's boot. This helps seal out moisture and makes future removal easier.
In rare cases, the engine wiring harness can rub against the metal EGR tube, causing a short that continuously powers the coil and melts it. If you find a melted coil, inspect the wiring harness near it for damage before installing a new one.
Cost to Replace Ignition Coils on a 2004-2008 Ford E-150
| Part / Service | Estimated Cost (Single Coil) | Estimated Cost (Set of 8) |
|---|---|---|
| OEM Motorcraft Coil | $50 - $80 | $400 - $640 |
| Tier 1/2 Aftermarket Coil (Denso, Delphi) | $35 - $60 | $280 - $480 |
| Tier 3 Aftermarket Coil (Value Brands) | $23 - $40 | $180 - $320 |
| Shop Labor | $75 - $150 | $150 - $300 |
Note: Costs are estimates and can vary based on your location and the specific retailer. Labor costs for a single coil are lower because the technician is already there.
Frequently Asked Questions (FAQ)
Should I replace all 8 ignition coils at once?
It's a good idea, especially if your van has over 100,000 miles. Ignition coils are exposed to the same heat and vibration, so when one fails, others are often not far behind. Replacing them all at once saves you from repeated repairs and can restore engine smoothness and efficiency. Given the labor involved in accessing the coils in a van, doing them all together is more time-efficient.
How difficult is it to replace the coils myself?
For a DIYer, this job is very feasible. The main tool you need is a ratchet with a long extension and a 7mm socket. The challenge in the E-150 is access. You'll need to remove the engine cover (the "doghouse") inside the van. The rearmost coils, especially on the passenger side, are tight to reach. It requires patience more than special skills.
🎬 Watch: The easy way to access and replace van coilsAre there any recalls for the ignition coils on these vans?
As of late 2023, there are no specific NHTSA safety recalls for ignition coil failure on the 2004-2008 Ford E-150 Econoline. Always check for the latest recall information using your vehicle's VIN on the NHTSA website.
What is the cylinder numbering on the 4.6L and 5.4L V8?
Standing at the front of the van, the passenger side cylinders are 1, 2, 3, and 4 (front to back). The driver's side cylinders are 5, 6, 7, and 8 (front to back).
Helpful Videos
Technical Specifications
OEM Part Numbers: DG508 3L3Z-12029-BA 3L3E-12A366-CA
Coil-on-Plug (COP) design, single 7mm bolt mount, 2-pin connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
