Ford Taurus Engine Timing Cover Gasket Set Guide (2004-2008)
Leaking oil or coolant from the front of your Taurus engine? This guide is for you.
- Leaks from the timing cover gasket are a very common issue on 2004-2008 Ford Taurus models, especially coolant leaks on the 3.0L Vulcan V6.
- This is a labor-intensive and expensive repair; the part is cheap but the labor can cost over $400.
- Always ask the mechanic to inspect the timing cover for corrosion; it may need to be replaced along with the gasket for a permanent fix.
- It is highly recommended to replace the water pump at the same time, as it has to be removed anyway for the repair.
Is Your 2004-2008 Ford Taurus Leaking?
If you own a 2004-2008 Ford Taurus, especially one with the common 3.0L Vulcan V6 engine, you might eventually notice a leak from the front of the engine. One of the most frequent culprits is a failed engine timing cover gasket. This isn't just a simple drip; it can be a sign of a well-known issue with these engines. The original paper-style gaskets can break down over time, and corrosion can form between the aluminum timing cover and the iron engine block.
Symptoms of a Failing Timing Cover Gasket
The signs of a bad timing cover gasket are usually easy to spot, but what you see depends on what is leaking.
- Oil Leaks: The most common symptom is engine oil dripping from the front of the engine, onto the ground. You may see oil residue on the front of the engine block or on the oil pan.
- Coolant Leaks (Vulcan V6): A very common failure on the 3.0L Vulcan engine is a coolant leak from the timing cover gasket. This happens because coolant flows through passages in the cover. The gasket fails, and you'll see coolant (usually green or orange) leaking from the passenger side of the engine.
- Low Fluid Levels: A constant leak will cause your oil or coolant levels to drop, requiring you to top them off frequently.
- Engine Overheating: If the leak is coolant and it's severe enough, your engine could overheat due to low coolant levels.
A Known Taurus Problem: Corrosion
The timing cover leak on the 3.0L Vulcan engine is a well-documented issue in owner forums. The problem often goes beyond the gasket itself. The aluminum timing cover can corrode where it meets the iron block, creating a pitted, uneven surface that a new gasket can't seal properly. In many cases, a professional repair involves replacing the entire timing cover along with the gasket set to ensure a lasting fix.
Choosing the Right Aftermarket Gasket Set
Since the labor for this job is expensive, choosing a quality gasket set is important. You don't want to do this job twice. Here’s a look at the brands available:
- Premium Brand (Victor Reinz / Reinz): Victor Reinz is known for making high-quality gaskets that often meet or exceed OEM specifications. They are a trusted supplier in the automotive industry. For a critical and labor-intensive job like this, choosing a premium brand like Reinz provides peace of mind that you're using a durable part designed for a perfect seal.
- Economy Brand (Apex): Apex is a budget-friendly option. While some users have had positive experiences, they are generally considered a standard replacement part rather than a premium one. If you are on a tight budget, it's an option, but for a repair this difficult, investing in a higher-quality gasket is often recommended.
Cost to Replace a Timing Cover Gasket Set
The cost of the gasket set itself is low, but the labor is where this job gets expensive. The repair requires removing many parts from the front of the engine.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $12 - $45 |
| Shop Labor | $400 - $1,000+ |
| Total Estimated Cost | $415 - $1,050+ |
*Costs are estimates and will vary based on your location, the shop's labor rate, and the specific engine in your Taurus. The higher end of the labor cost often includes replacing the water pump or the timing cover itself.
Frequently Asked Questions
Can I drive my Taurus with a leaking timing cover gasket?
If the leak is very minor, you might be able to drive for a short time, but you must check your oil or coolant levels daily. However, a significant oil leak can lead to engine damage, and a major coolant leak can cause catastrophic overheating. It is best to get the leak fixed as soon as possible.
Why is the repair so expensive if the part is cheap?
The high cost comes from the intensive labor. To access the timing cover, a mechanic has to drain fluids and remove the serpentine belt, pulleys, alternator, water pump, and sometimes even lift or tilt the engine for clearance. This process can take several hours.
Should I replace the water pump at the same time?
Yes, it is highly recommended. The water pump is mounted to the timing cover and must be removed to perform the repair. Since you are already paying for the labor to access that area, replacing the water pump at the same time with a new one is a smart and cost-effective move that can prevent a future failure.
Is this a DIY job?
For most home mechanics, this is a very difficult job. It requires significant disassembly of the engine, specialized tools like a harmonic balancer puller, and careful reassembly and torquing of components. Due to the complexity and the need to potentially lift the engine, this repair is best left to experienced professionals.
Are there any recalls for this issue?
No, there are no official recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA specifically for the timing cover gasket leak on the 2004-2008 Taurus. The issue is widely known among mechanics and owners from forum discussions and repair histories.

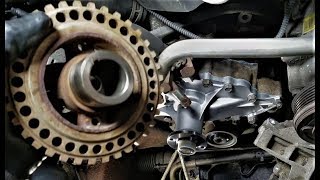

Helpful Videos
Technical Specifications
Set typically includes the main timing cover gasket, front crankshaft seal, and may include water pump gasket and other small seals. The 2004-2008 Taurus was primarily equipped with the 3.0L OHV Vulcan V6 or the 3.0L DOHC Duratec V6. Gaskets differ between engines.
