A Practical Guide to the 2004-2008 Mazda B3000 Drum Brake Wheel Cylinder
Keep your B3000's rear brakes working properly by understanding how to spot and fix a failing wheel cylinder.
- A soft/spongy brake pedal and fluid leaks at the rear wheels are the top signs of failure.
- Always replace wheel cylinders in pairs to ensure balanced braking.
- If the cylinder has leaked, you must also replace the brake shoes as they are contaminated.
- Confirm if your truck has 9-inch or 10-inch rear drums before ordering parts.
Is Your B3000's Wheel Cylinder Failing?
A bad wheel cylinder is a serious safety issue. Because it deals with hydraulic pressure, a failure can lead to a significant loss of braking power. The most common problem is leaking brake fluid, which can happen as the internal rubber seals wear out over time. Sometimes, the pistons inside can also get stuck or seize due to rust and corrosion.
Key Failure Symptoms:
- Spongy or Soft Brake Pedal: This is the most common sign. If the pedal feels mushy or sinks toward the floor when you hold it down, you're likely losing hydraulic pressure, possibly from a leaky wheel cylinder.
- Visible Brake Fluid Leak: Look for wetness on the inner side of your rear tires or on the backing plate behind the wheel. Leaking fluid will often be covered in road grime and dust.
- Truck Pulls to One Side: If one wheel cylinder fails, it can cause a braking imbalance, making your truck pull to the left or right when you hit the brakes.
- Dragging or Overheating Rear Brakes: A seized wheel cylinder can prevent the brake shoes from retracting, causing them to drag against the drum. This can create a burning smell from the rear wheels.
Choosing the Right Aftermarket Wheel Cylinder
For a 2004-2008 Mazda B3000, you don't necessarily need to buy an expensive OEM part from a dealer. Several reputable aftermarket brands offer quality replacements that meet or exceed original specifications. Since the B3000 is a rebadged Ford Ranger, parts are widely available and competitively priced.
Aftermarket Brand Tiers:
- Good - Dorman, Centric: These brands are widely available and offer a direct-fit, budget-friendly solution. Centric is a common choice for general repairs. While some mechanics express caution about Dorman's long-term reliability for certain parts, their wheel cylinders are a standard replacement option.

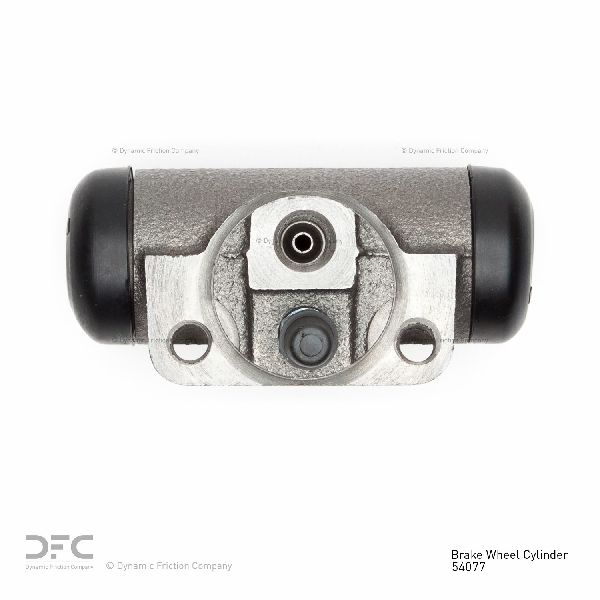

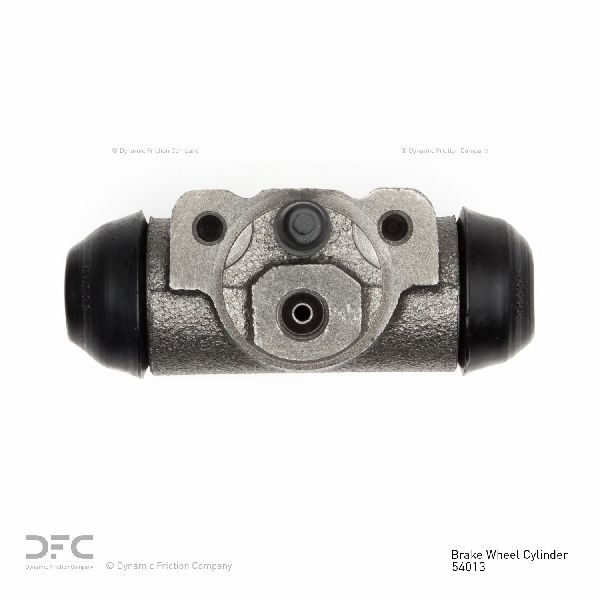

- Better - Dynamic Friction (DFC): DFC has a growing reputation for producing quality brake components, including rotors and pads that are well-regarded. They are known for being a legitimate and competitively priced option.

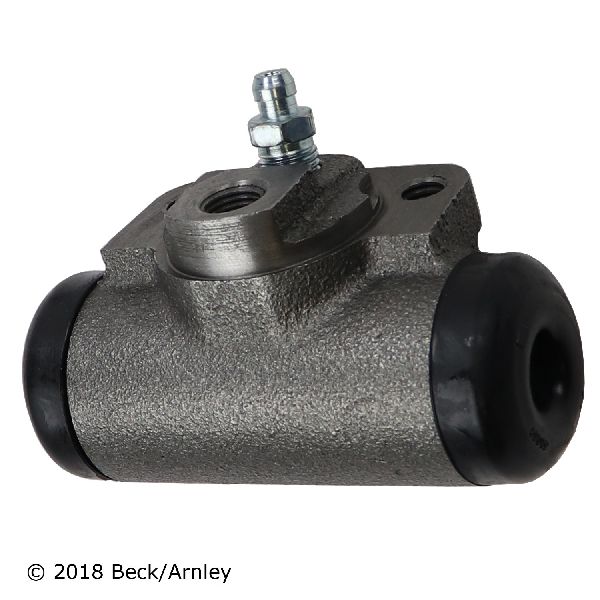

- Best - Beck Arnley: Beck Arnley has a long-standing reputation as a parts sourcer that often re-packages components from the original equipment manufacturers. While their sourcing can vary, they are generally considered a higher-quality aftermarket choice with low return rates for hydraulic parts.
Common Ordering Mistakes
The biggest mistake when ordering for your B3000 is getting the wrong size. These trucks came with either 9-inch or 10-inch rear drum brakes. There is no way to know for sure without measuring the inside diameter of your brake drum. Check your truck's specifications or measure before you order to avoid getting the wrong part.
Frequently Asked Questions (FAQ)
Do I need any special tools for this job?
While most of the job can be done with standard wrenches and sockets, a set of brake spring pliers and a line wrench (or flare nut wrench) for the brake line fitting are highly recommended. A line wrench grips the fitting on more sides than a standard wrench, reducing the risk of rounding it off.
Do I have to bleed the brakes after replacing a wheel cylinder?
Yes, absolutely. Any time you open the hydraulic system, air gets in. You must bleed the brakes to remove all air bubbles, or your brake pedal will feel spongy and the brakes won't work correctly. You should at least bleed the two rear brakes, starting with the one furthest from the master cylinder.
What are the torque specs for the wheel cylinder bolts?
For the Ford Ranger (which shares the same parts), the two bolts holding the wheel cylinder to the backing plate should be torqued to 11 ft-lbs. Be careful not to overtighten them.
Are there any recalls for the B3000 wheel cylinder?
No. There are no active recalls or widespread Technical Service Bulletins (TSBs) from Mazda or Ford specifically for wheel cylinder failure on the 2004-2008 B3000 or Ranger.
Technical Specifications
Available for 9-inch and 10-inch rear drum brake systems. The correct size must be verified on the vehicle before ordering.
