A Guide to Replacing Fuel Injectors on the 2004-2008 Subaru Impreza
Everything you need to know before buying new aftermarket fuel injectors for your Impreza, WRX, or STI.
- Crucially, you must identify if your Impreza needs 'top-feed' (non-turbo, 06-08 WRX) or 'side-feed' (04-05 WRX, 04-06 STI) injectors; they are not interchangeable.
- For reliability, choose an OEM-equivalent brand like Hitachi. Beck Arnley is also a trusted choice for imports.
- Always replace all four fuel injectors as a matched set to ensure balanced engine performance and prevent future failures.
- On turbo models (WRX/STI), replacement is a complex job that may require removing the intake manifold; budget for higher labor costs.
Is Your Impreza's Fuel Injector Failing?
A bad fuel injector can cause problems that range from annoying to serious. Because they are a critical part of the fuel system, any issue will be felt in how your car drives. 🎬 Watch: How to test and identify a failing fuel injector Common signs of a failing fuel injector include a rough idle, engine hesitation, and poor fuel economy.
Symptoms of a Bad Fuel Injector:
- Engine Misfires or Stumbling: The engine may sputter or vibrate, especially during acceleration. This happens when a cylinder doesn't get the right amount of fuel.
- Rough Idle: Your car may shake or vibrate when stopped, and the RPM needle on your tachometer might bounce around.
- Check Engine Light: A failing injector will often trigger the check engine light. Common codes include P0300 (random misfire) or codes for specific cylinders, like P0301, P0302, P0303, or P0304.
- Poor Fuel Economy: If you're filling up your gas tank more often than usual, a leaky or inefficient injector could be dumping too much fuel into the engine.
- Fuel Smell: A strong smell of gasoline from the engine bay can indicate a leaking injector or fuel line. For 2004 WRX models specifically, there was a recall for fuel lines that could leak in very cold weather, which can also cause a fuel smell.
Choosing the Right Aftermarket Fuel Injector
When shopping for new injectors for your 2004-2008 Impreza, the most important factor is your car's specific model (base, WRX, or STI). This determines the type of injector you need.
⚠️ Important: Top-Feed vs. Side-Feed Injectors
The 2004-2008 Impreza generation used two different types of fuel injectors depending on the engine:
- Top-Feed Injectors: Used on non-turbo Impreza models and later WRX models (2006-2008). Fuel enters through the top of the injector. These are the most common and generally less expensive type.
- Side-Feed Injectors: Used on early turbo models in this generation, including the 2004-2005 WRX and 2004-2006 WRX STI. Fuel enters through the side of the injector body.
These two types are not interchangeable. Ordering the wrong type is the most common mistake. Always verify which style your specific year and model uses before purchasing.
Aftermarket Brand Quality Tiers
For a critical component like a fuel injector, quality matters. While aftermarket parts can offer significant savings, not all brands are created equal.
- Tier 1: OEM-Equivalent (Hitachi): Hitachi was an Original Equipment Manufacturer (OEM) for many Japanese vehicles from this era. Choosing Hitachi is the closest you can get to buying the part from a Subaru dealer. They offer guaranteed fit and performance, making them a top choice for reliability.
- Tier 2: Quality Import Specialist (Beck Arnley): Beck Arnley specializes in parts for import vehicles and has a reputation for sourcing components from the same factories that supply the original automakers. They are a trusted option that often provides OE-quality parts in their own box, balancing cost and reliability.
- Tier 3: Standard Aftermarket (Standard Ignition, GBR): Brands like Standard Ignition (SMP) are large aftermarket producers that offer a more budget-friendly option. While they can be a good value, some user reviews suggest a higher chance of receiving a faulty part out of the box compared to OEM. GBR Fuel Injection is primarily a remanufacturer, offering a low-cost alternative.
Pro Tip: Replace as a Set
It is highly recommended to replace all four fuel injectors at the same time. Fuel injectors wear out at a similar rate. If one has failed, the others are likely not far behind. Replacing them as a matched set ensures that each cylinder receives the same amount of fuel, which is critical for a smooth-running engine and proper tuning.
Cost of Replacing Subaru Impreza Fuel Injectors
The total cost depends on the parts you choose and whether you do the work yourself. The job is much more difficult on turbo WRX and STI models, which increases labor costs significantly.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Injector (Single) | $200 - $350 |
| New Aftermarket Injector (Single) | $57 - $180 |
| Shop Labor (Non-Turbo) | $150 - $300 |
| Shop Labor (Turbo WRX/STI) | $300 - $600+ |
Frequently Asked Questions (FAQ)
Do I need to replace all four injectors at once?
Yes, it is strongly recommended. Fuel injectors are flow-matched from the factory. Replacing just one can cause an imbalance in fuel delivery between the cylinders, leading to a rough idle and poor performance. Since they all have the same amount of wear, if one fails, the others may soon follow.
What's the difference between top-feed and side-feed injectors?
It refers to how fuel enters the injector. Top-feed injectors receive fuel from the top via a fuel rail that sits above them. Side-feed injectors sit inside the fuel rail, and fuel enters through an opening in the side. Turbocharged Imprezas from 2004-2005 (WRX) and 2004-2006 (STI) use side-feed, while non-turbo and later turbo models use top-feed. They are not interchangeable.
Are aftermarket injectors reliable for my Subaru?
They can be, but brand selection is key. A high-quality aftermarket brand like Hitachi (an OEM supplier) will provide the same performance and reliability as the original part. Other brands like Beck Arnley are also well-regarded for imports. Cheaper, lesser-known brands can have inconsistent quality control, which may lead to problems.
Is replacing fuel injectors a DIY job?
It depends on your engine and experience. On a non-turbo Impreza, it is a manageable job for an experienced DIY mechanic. On a WRX or STI, the job is much more complex and often requires removing the intake manifold, making it difficult and time-consuming. If you are not comfortable depressurizing the fuel system and removing major engine components, it's best to leave this job to a professional.

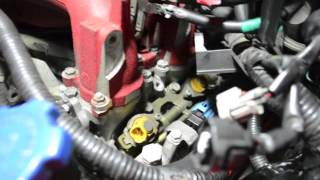

🎬 Watch this walkthrough on how to replace Subaru fuel injectorsHelpful Videos
Technical Specifications
Injector Type: Top-Feed (Non-Turbo models, 2006-2008 WRX) or Side-Feed (2004-2005 WRX, 2004-2006 WRX STI). Flow rates differ between non-turbo, WRX, and STI models. Always verify the correct part for your specific engine.
