Engine Timing Belt Essentials for the 2004-2008 Suzuki Forenza
Everything a Forenza owner needs to know about replacing a worn or broken timing belt.
- The Forenza has an interference engine; a broken timing belt will cause catastrophic engine damage.
- The replacement interval is critical: 60,000 miles or 4 years, whichever comes first.
- Always replace the timing belt, tensioner, and idler pulleys as a kit. It is also best practice to replace the water pump.
- A known TSB addresses a rubbing noise from a warped timing belt cover contacting the cam sprockets.
Is Your Suzuki Forenza's Timing Belt About to Fail?
A failing timing belt gives very few warnings before it breaks. However, you might hear a ticking noise from the engine area, which could be the only sign of a problem before it's too late. 🎬 Watch: Common signs of a failing timing belt If the belt has already slipped, you may experience rough idling, engine misfires, a loss of power, or a check engine light. In some cases, you might notice oil leaking from the front of the engine near the timing belt cover, which can damage the belt and speed up its failure.
Critical Failure Warning
The 2004-2008 Suzuki Forenza has an interference engine. This means if the timing belt breaks, the pistons will hit the valves, causing catastrophic and expensive engine damage. Do not ignore the recommended replacement schedule. A belt failure has been reported in as few as 40,000 miles.
Choosing the Right Aftermarket Timing Belt

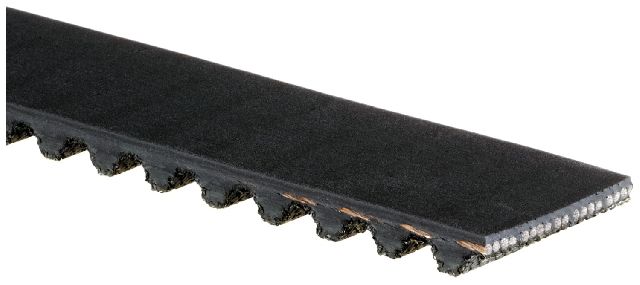

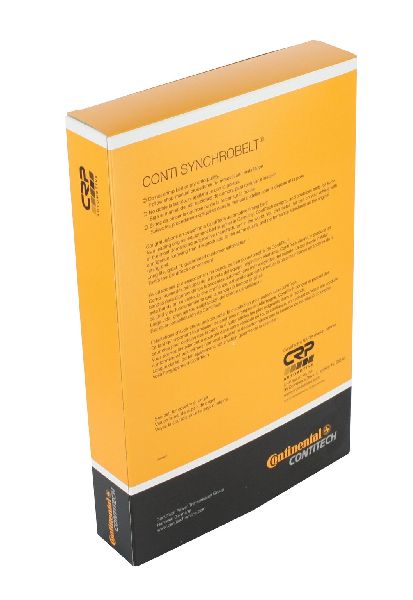

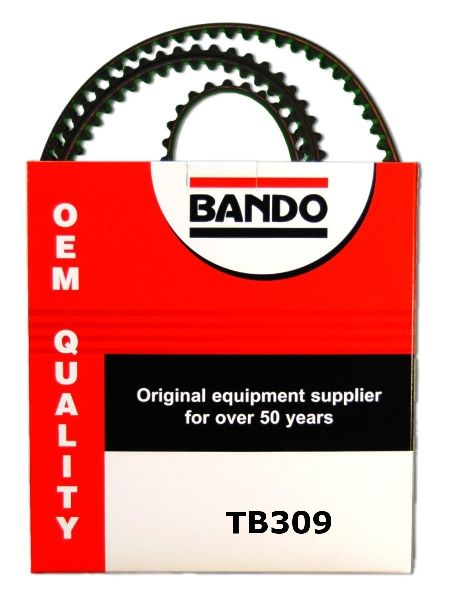

Since Suzuki no longer operates in the US, aftermarket parts are the most common choice for repairs. For a critical part like the timing belt, quality is key. Brands like Gates, Dayco, and Continental are well-regarded OEM suppliers for many car manufacturers and are considered reliable choices. Bando is also noted as a major OEM manufacturer of drive belts.
Pro Tip: Replace More Than Just the Belt
When replacing the timing belt, it is highly recommended to replace the tensioner, idler pulleys, and the water pump at the same time. These components are part of the same system and have a similar service life. Since the labor to access the timing belt is significant, replacing these parts together saves you from paying for the same job twice. 🎬 See this step-by-step timing belt and water pump replacement Many brands offer complete kits (like Gates TCK309) that include the belt, pulleys, and sometimes the water pump (TCKWP309).
Known Issues and Bulletins
Suzuki issued a Technical Service Bulletin (TSB #TS 21 03259) for the 2004-2008 Forenza. The issue involves a rubbing noise from the front of the engine. This is caused by a slightly warped timing belt cover making contact with the cam sprockets. The official fix is to remove the cover and grind down the contact area, not to replace the cover itself. There have been no safety recalls directly related to the timing belt for this vehicle.
Aftermarket Timing Belt Cost for 2004-2008 Suzuki Forenza
| Part Type | Estimated Cost |
|---|---|
| Aftermarket Timing Belt Only | $25 - $50 |
| Aftermarket Timing Belt Kit (with Pulleys) | $46.18 - $75.58 |
| Aftermarket Timing Belt & Water Pump Kit | $70 - $150+ |
| Shop Labor | $400 - $1200+ |
Frequently Asked Questions
What is the replacement interval for the Forenza timing belt?
The recommended service interval is every 60,000 miles or 48 months (4 years), whichever comes first. Due to the age of these vehicles and the risk of severe engine damage, it is critical to adhere to this schedule.

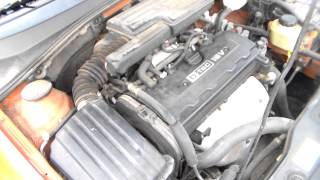

🎬 Watch: How to inspect your timing belt for wearIs the Suzuki Forenza engine interference or non-interference?
It is an interference engine. A broken timing belt will cause the pistons and valves to collide, resulting in major engine damage.
Should I buy a timing belt kit or just the belt?
Always buy a complete kit. A kit should include the belt, the tensioner pulley, and the idler pulleys. It is also best practice to replace the water pump at the same time, as it is driven by the timing belt and requires the same amount of labor to access. Component failure, like a seized tensioner pulley, can cause the new belt to fail.
Are aftermarket timing belts as good as the OEM Suzuki belt?
Yes, high-quality aftermarket brands like Gates, Dayco, Continental, and Bando are often original equipment suppliers to many automakers and meet or exceed OEM specifications. Given the age of the Forenza, a quality aftermarket kit is a reliable and cost-effective choice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1276185Z01
Teeth: 169, Width: 0.945 in (24mm), Tooth Profile: Round
