Audi A4 Brake Light Switch Guide for Model Years 2004-2009
Seeing an EPC or ABS warning light on your dash? A faulty brake light switch is a common and inexpensive fix.
- Verify your model year carefully; 2004-2008 (B6/B7) and 2009 (B8) use different switches.
- An illuminated EPC light, along with ABS/ESP lights, is a primary symptom of a failing brake light switch.
- This is a known weak point, but the replacement is simple, inexpensive, and can be done at home in under an hour for 2004-2008 models.
- Driving with a faulty switch is unsafe due to potential brake light failure and disabled safety systems.
If you own a 2004-2009 Audi A4, a glowing EPC light on your dashboard is a common sight that often points to a failing brake light switch. This is a frequent issue, but the good news is that it's a straightforward and affordable repair you can often do yourself. This guide will walk you through the symptoms, how to choose the right aftermarket part, and what to expect during replacement.
Is This The Right Switch For Your A4? (2004-2008 vs. 2009)
CRITICAL FITMENT NOTE: The 2004-2009 year range covers three different Audi A4 generations (B6, B7, and B8).
- If you have a 2004-2008 model (B6/B7 chassis), the common 4-pin switch with part number 1K2945511RDW is the correct part.

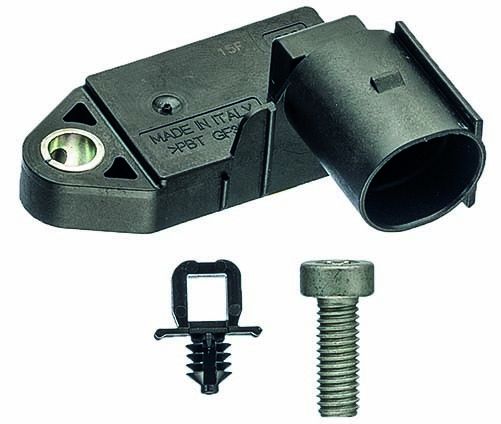

- If you have a 2009 model (B8 chassis), you have a different body style and require a different brake light switch. The installation for the 2009 model is also different. Always verify the part fits your specific vehicle before purchasing.
Common Symptoms of a Failing Brake Light Switch
A bad brake light switch sends confusing signals to your car's computers. You will likely notice one or more of the following issues:
- Brake Lights Don't Work or Stay On: Your brake lights may not light up when you press the pedal, or they might stay on continuously, even when the car is off.
- EPC Light is On: The Electronic Power Control (EPC) light illuminating on your dash is one of the most common symptoms.
- ABS, ESP, or Traction Control Lights: The switch communicates with the braking and stability systems, so a failure can trigger these warning lights.
- Cruise Control Inoperable: The cruise control system will not engage or will shut off unexpectedly because it isn't getting a reliable signal from the brake pedal.
- Can't Shift Out of Park: Automatic transmission vehicles require a signal that the brake is pressed to allow the shifter to move out of Park.
Choosing Your Aftermarket Replacement Part
For a part like the brake light switch, you don't necessarily need to pay dealer prices for an OEM part. Several reputable aftermarket brands offer quality replacements. While some owners have had issues with the cheapest no-name parts, a good aftermarket switch should perform reliably.
Here's a look at the available brands:
- Standard Ignition (SMP): Generally considered a top-tier aftermarket manufacturer with a reputation for producing reliable electronic parts and switches.

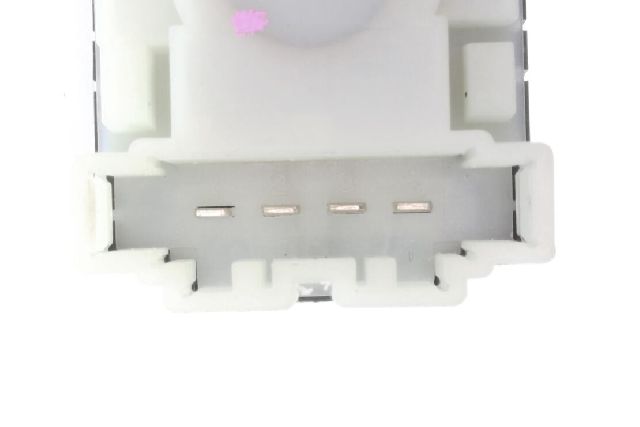

- Vemo: A brand that often provides a budget-friendly alternative to OEM parts. For a simple switch, it can be a cost-effective choice.

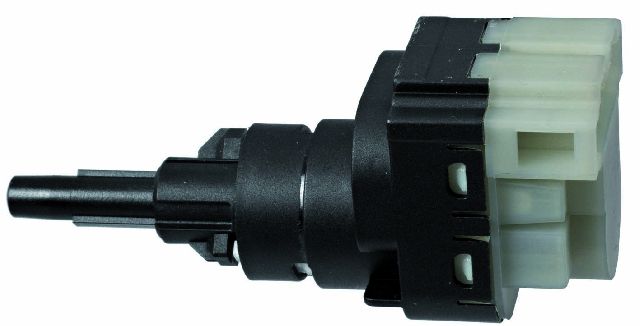

- Facet: An established aftermarket brand from Italy offering a wide range of electronic components. Their switches are a common replacement option.
- Rostra Powertrain: Another aftermarket supplier offering a variety of automotive parts.
Pro Tip: Given the low cost of the part and the importance of its function, choosing a recognized brand like Standard Ignition can provide extra peace of mind. However, for this specific component, brands like Vemo and Facet are generally considered adequate by the repair community.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $21.77 - $57.79 |
| New OEM | $25 - $45 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Why did the EPC light turn on?
The EPC system controls the throttle and other engine functions. It relies on the brake light switch to know when you're braking. If the switch sends a bad signal (or no signal), the computer gets confused, assumes there's a critical problem, and turns on the EPC light as a safety precaution.
🎬 Watch: How to fix and reset your Audi EPC light fast.Can I replace the brake light switch myself?
Yes, for the 2004-2008 models, this is a very DIY-friendly job. The switch is located above the brake pedal. You'll need to remove a lower dash panel for access, unplug the connector, twist the old switch 45 degrees to remove it, and then reverse the process for the new one. 🎬 Watch this step-by-step replacement walkthrough for B6 models. The entire job typically takes less than an hour.
Is it safe to drive with a bad brake light switch?
It is not recommended. If your brake lights are not working, other drivers won't know you are slowing down, which is a major safety hazard. If the lights are stuck on, it can drain your battery. Additionally, systems like ABS and stability control may be disabled, compromising your car's safety features.
I have a 2009 A4. Will this part fit?
No. The 2009 Audi A4 is part of the B8 generation and uses a different brake light switch and a different installation method. You must purchase a switch specifically listed for the 2009 model year.
🎬 See how to replace the switch on a 2009 B8 model.Helpful Videos
Technical Specifications
OEM Part Numbers: 1K2945511RDW 7L6945511 6Q0945511
4-pin connector. Fits B6 and B7 chassis (2004-2008 models).
