Guide to Replacing the Door Lock Actuator on a 2004-2009 Cadillac SRX
If your SRX door locks are acting up, making noise, or not working at all, a bad door lock actuator is the likely cause.
- A single non-responsive door lock on your SRX, especially with buzzing or grinding noises, strongly indicates a failed actuator.
- Failure is a common wear-and-tear issue; no recalls have been issued for this specific part on the 2004-2009 SRX.
- Replacement is a feasible DIY project for those with basic tools, taking 1-2 hours per door.
- Actuators are door-specific (e.g., Front Left) and cannot be interchanged, so verify the correct position before purchasing.
Is Your Cadillac SRX Door Lock Failing?
A bad door lock actuator is a frequent issue on the first-generation Cadillac SRX. The problem almost always affects a single door at first. If multiple doors stop working at the exact same time, you should check the power door lock fuse 🎬 Watch: How to diagnose a faulty door lock actuator. or relay before replacing any actuators. However, if the issue is isolated to one door, the actuator is the prime suspect.
Common Symptoms of a Bad Actuator
🎬 Watch: See common signs of a failing door lock actuator.- Door Won't Lock or Unlock Electronically: This is the most obvious sign. You press the button, and one door doesn't respond while the others do. You'll have to use the physical key or manual lock knob for that door.
- Strange Noises From the Door: A buzzing, grinding, or rapid clicking sound from inside the door is a classic symptom. This is often the noise of stripped or worn plastic gears inside the actuator motor as it struggles to move the lock.
- Erratic or Random Operation: The door lock might seem to have a mind of its own, locking or unlocking randomly while you're driving or when the car is parked. This can point to an electrical failure within the actuator unit.
- Sluggish Movement: The lock may move very slowly or only partially, seeming weak compared to the other doors.
Choosing the Right Aftermarket Actuator
When replacing a failed actuator on your SRX, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For a vehicle of this age, a quality aftermarket part can offer the best balance of price and reliability.
- OEM Parts: These are the same parts the vehicle was built with. They guarantee a perfect fit but are the most expensive option.
- Aftermarket Parts: These are made by other companies. Quality can vary, so it's important to choose a reputable brand.
- Standard Ignition (SMP): A well-known and established brand in the aftermarket industry, often considered a reliable alternative to OEM. They emphasize quality control and direct-fit designs.
- Skyward Automotive: This is often a more budget-focused brand. While it can save you money, there is less information available about its long-term reliability compared to more established brands.
Pro Tip: Check the Part Number
Door lock actuators are specific to each door—Front Left, Front Right, Rear Left, and Rear Right. They are not interchangeable. Always confirm you are buying the correct part for the specific door you are repairing.
Cost to Replace a 2004-2009 Cadillac SRX Door Lock Actuator
The cost can vary depending on the part brand and whether you do the work yourself or hire a mechanic.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $50 - $207 |
| Shop Labor | $98 - $143 |
| Total Professional Replacement | $148 - $350 |
Note: Prices are estimates and can vary by location and supplier. The aftermarket part price reflects the provided inventory range.
Known Issues, Recalls, and Service Bulletins
There are no specific recalls or Technical Service Bulletins (TSBs) from GM or the NHTSA for door lock actuator failure on the 2004-2009 Cadillac SRX. This type of failure is considered a normal wear-and-tear item. While not related to the door locks, it's worth noting that these vehicles were part of a major recall for the ignition switch, which could cause the engine to shut off while driving (NHTSA Campaign: 14V394000).
Frequently Asked Questions (FAQ)
Is it difficult to replace the SRX door lock actuator myself?
For a DIYer with basic mechanical skills, this is a manageable project. The difficulty is moderate, estimated at 3 out of 5. 🎬 Watch: Step-by-step guide to replacing a Cadillac door lock actuator. The process involves removing the interior door panel, peeling back the weather shield, disconnecting some rods and electrical plugs, and unbolting the actuator assembly. You'll need common tools like a socket set, screwdrivers, and a trim removal tool.
Do I need to reprogram the car after installing a new actuator?
No. The door lock actuator is a simple electro-mechanical part and does not require any programming or calibration after installation. It is a plug-and-play component.
Why did more than one door lock stop working at once?
If multiple locks fail at the same time, it's unlikely that all the actuators broke simultaneously. The problem is more likely to be a blown fuse, a bad relay, or an issue with the driver's door master switch or Body Control Module (BCM).
Is a broken door lock actuator a safety issue?
It can be. A door that won't unlock could be a hazard in an emergency, while a door that won't lock creates a security risk for your vehicle and belongings. It is recommended to get a failing actuator fixed promptly.
Helpful Videos
Technical Specifications

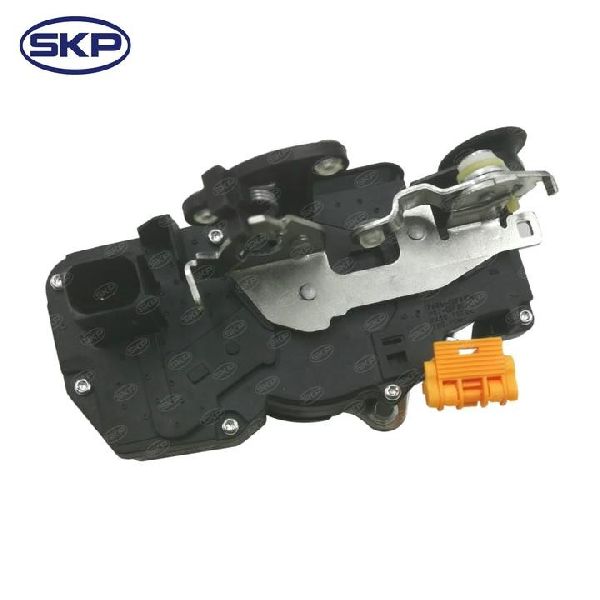

The actuator is an integrated motor and gear assembly within the door latch. It uses a 6-pin electrical connector for the front doors on the SRX. The assembly is typically held in place by three T30 Torx bolts.
