Cadillac XLR Oxygen Sensor Guide (2004-2009): Symptoms & Replacement
Learn to identify a failing oxygen sensor in your Cadillac XLR and choose the right aftermarket replacement.
- Your XLR has four O2 sensors; identify the correct one before buying.
- A check engine light and worse gas mileage are the most common signs of failure.
- Choose direct-fit sensors from OEM-equivalent brands like Delphi, Denso, or NGK for best results.
- Replacement is a feasible DIY job with the right tool (an O2 sensor socket), but sensors can be difficult to remove if seized.
Symptoms of a Failing Oxygen Sensor
When an oxygen sensor in your XLR begins to fail, it can cause noticeable issues. The most common sign is the check engine light illuminating on your dashboard. You might also experience a decrease in fuel economy, as the engine's computer may be receiving incorrect data and enriching the fuel mixture. Other symptoms include a rough idle, engine hesitation or misfires, and in some cases, a rotten egg smell from the exhaust.
🎬 Watch: A visual guide to common bad oxygen sensor symptoms.Choosing the Right Aftermarket Oxygen Sensor
For a vehicle like the Cadillac XLR, using a quality replacement part is important. The original manufacturer for many GM vehicles is Delphi, which is also available as an aftermarket brand. Choosing a direct-fit sensor with the correct electrical connector is crucial to avoid cutting and splicing wires. Universal sensors are not recommended for modern vehicles like the XLR.
Brand Quality Tiers
- Tier 1: OEM-Equivalent Brands: These brands are known for making original equipment parts for car manufacturers. They offer the highest quality and compatibility. For your XLR, this includes Delphi, Denso, and NGK (also sold as NTK). Bosch is another top-tier brand with a strong reputation in the aftermarket.
- Tier 2: Quality Aftermarket Brands: These brands provide a good balance of quality and value. They are reliable replacements that meet or exceed OEM specifications. This tier includes Walker Products and Spectra.
- Tier 3: Economy Brands: Brands like DriveWire offer a budget-friendly option. While functional, they may not have the same longevity or precise calibration as higher-tier brands.
Aftermarket Oxygen Sensor Cost
| Part Tier | Price Range (Per Sensor) |
|---|---|
| Tier 1 (Delphi, Denso, NGK, Bosch) | $70 - $250 |
| Tier 2 (Walker, Spectra) | $50 - $120 |
| Tier 3 (DriveWire, etc.) | $35 - $75 |
Pro Tip: Prices vary between upstream and downstream sensors. Upstream sensors (also called Air/Fuel Ratio sensors) are often more complex and expensive.
Frequently Asked Questions
How many oxygen sensors does a 2004-2009 Cadillac XLR have?
All Cadillac XLR models, including the base and XLR-V, are equipped with four oxygen sensors. There are two upstream sensors (Bank 1 Sensor 1 and Bank 2 Sensor 1) located before the catalytic converters, and two downstream sensors (Bank 1 Sensor 2 and Bank 2 Sensor 2) located after them.
What is the difference between an upstream and a downstream sensor?
Upstream sensors (pre-catalytic converter) provide the primary feedback for adjusting the engine's air-fuel mixture. Downstream sensors (post-catalytic converter) primarily monitor the efficiency of the catalytic converters themselves. A failure in either can trigger a check engine light.
Can I replace just one oxygen sensor?
Yes. You only need to replace the specific sensor that has failed. A diagnostic scan tool can read the trouble code (e.g., P0159) which will identify the exact sensor that needs replacement. 🎬 Watch this walkthrough of a Cadillac oxygen sensor replacement. However, since sensors age at a similar rate, some mechanics recommend replacing them in pairs (e.g., both upstream sensors) if the vehicle has high mileage.
Do I need a special tool to replace an oxygen sensor?
A special oxygen sensor socket is highly recommended. This socket has a slit on the side to accommodate the sensor's wire. While a standard wrench might work, the sensors are often in tight spaces and can be seized in the exhaust pipe, making the special socket a valuable tool for providing leverage without damaging the part.

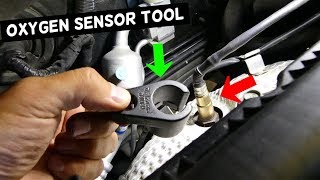

🎬 See how to properly use an oxygen sensor socket set.Are there any recalls for the Cadillac XLR oxygen sensor?
No, there are no specific recalls or common Technical Service Bulletins (TSBs) from GM or the NHTSA for oxygen sensor failure on the 2004-2009 Cadillac XLR.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12597875 12567073 213-1560 213-3630
The 2004-2009 Cadillac XLR uses heated, 4-wire oxygen sensors. Upstream sensors are often wideband (Air/Fuel Ratio) sensors, while downstream are typically narrowband. Connectors and wire lengths are specific to location (Bank 1/2, Sensor 1/2), so confirm fitment for your vehicle's specific engine (4.6L Northstar V8 or 4.4L Supercharged V8).
