Chevrolet Camaro Vehicle Speed Sensor Guide (1998-2002)
Having issues with your speedometer or automatic shifting? Your Vehicle Speed Sensor might be the problem.
- A bad VSS on a 1998-2002 Camaro primarily causes erratic speedometer readings and harsh automatic shifting.
- This is a DIY-friendly repair, typically requiring only basic hand tools and safe access to the underside of the vehicle.
- Always check the wiring and connector for damage before replacing the sensor itself.
- Reputable aftermarket brands like Delphi or Standard Ignition offer a reliable and cost-effective alternative to OEM parts for this repair.
Is Your Camaro's Speed Sensor Failing?
A bad Vehicle Speed Sensor (VSS) on a 1998-2002 Camaro can cause some very noticeable problems. Because the VSS provides data for the speedometer, transmission, and cruise control, its failure directly impacts how your car drives. You'll often know you have a problem when you see the Check Engine Light, but other symptoms can appear first.
Symptoms of a Bad VSS
| Symptom | Description |
|---|---|
| Erratic or Dead Speedometer | The most obvious sign is a speedometer that jumps around, reads incorrectly, or doesn't move at all. One owner noted their speedometer would jump to 100mph during rapid acceleration when the car was only going 80mph. |
| Harsh or Incorrect Shifting (Automatic Transmission) | The car's computer uses speed data to decide when to shift gears. A bad sensor can lead to delayed, hard, or jerky shifts. In some cases, the transmission may not shift out of a lower gear. |
| Cruise Control Not Working | If the computer doesn't know how fast the car is going, it can't maintain a set speed. As a result, the cruise control will not engage. |
| Check Engine Light | A failing VSS will almost always trigger a Check Engine Light and store diagnostic trouble codes 🎬 Watch how to diagnose and test a failing speed sensor. like P0500, P0502, or P0503. |
Choosing the Right Aftermarket VSS
For a vehicle like the 4th Generation Camaro, aftermarket parts offer a good balance of quality and value. The original GM part may be harder to find or more expensive. Aftermarket brands often meet or exceed original specifications and are a reliable choice for this repair.
Brand Quality Tiers:
- Premium Aftermarket (e.g., Delphi): Delphi was an original parts supplier for GM, and their aftermarket parts are generally considered high quality and reliable. They are often a top choice for electronic components.
- Standard Aftermarket (e.g., Standard Ignition, Walker Products): These brands are well-known in the aftermarket and offer a solid balance of price and performance. Standard Motor Products (SMP) has a long history, though some users note quality can vary depending on the specific part line. Walker Products is another established name for sensors and engine management components.
- Economy Brands: While not listed, be cautious with unbranded or store-brand "economy" parts. For a critical sensor like the VSS, sticking with a reputable manufacturer is recommended to avoid premature failure and drivability issues.
Pro Tip: Check the Wiring First
Before replacing the sensor, inspect the wiring harness and connector. The sensor is located on the transmission, exposed to road debris and heat. A damaged wire or corroded connector can cause the same symptoms as a failed sensor and is a cheaper fix. Also, check for metal shavings on the magnetic tip of the old sensor when you remove it, as this could indicate a more serious internal transmission problem.
Cost of Replacing a Vehicle Speed Sensor on a 1998-2002 Camaro
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $26 - $45 |
| Shop Labor | $75 - $150 |
| Estimated Total (DIY) | $26 - $45 |
| Estimated Total (Installed at Shop) | $101 - $195 |
(Cost estimates are for parts and labor and may vary based on location and vehicle condition.)
Frequently Asked Questions
Where is the Vehicle Speed Sensor located on my Camaro?
On the 1998-2002 Chevrolet Camaro, the VSS is located on the tail-shaft (the rear section) of the transmission. For automatic transmissions, it may be on the driver's or passenger's side depending on the specific model year and transmission type. For manual T56 transmissions, it is also on the rear of the transmission case. You will need to safely raise the vehicle to access it.
Is this a difficult repair to do myself?
For a DIY mechanic with the right tools, this is a relatively easy repair. It involves safely lifting and supporting the vehicle, disconnecting the electrical connector, removing a single bolt, and swapping the sensor. The most difficult part is often accessing the sensor, which may require removing an exhaust hanger.
Are there any recalls for this part?
There are no specific recalls for the Vehicle Speed Sensor on the 1998-2002 Chevrolet Camaro. However, there was a recall on some other GM vehicles from the same era for issues with wheel speed sensors causing unwanted ABS activation, but this did not apply to the Camaro's transmission-mounted VSS.
What do the trouble codes P0500, P0502, and P0503 mean?
These are all related to the Vehicle Speed Sensor circuit. P0500 indicates a general malfunction in the VSS circuit. P0502 indicates the sensor circuit has low input, meaning the signal is weak or non-existent. P0503 points to an intermittent, erratic, or high signal from the sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24232088 10456568

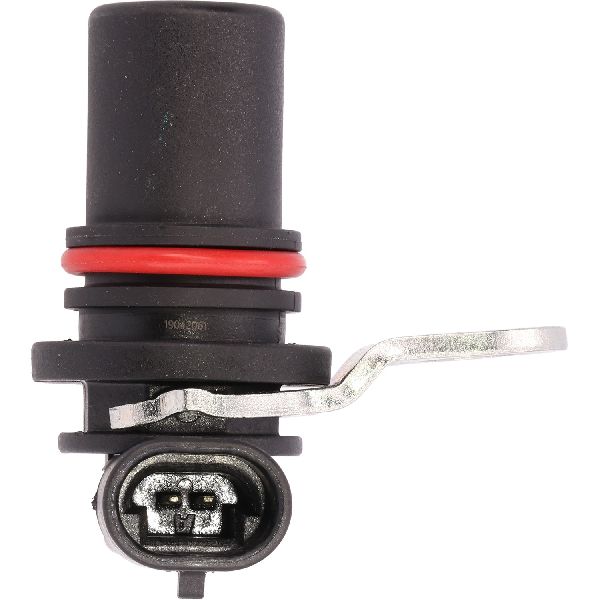

The VSS for the 1998-2002 Camaro is a magnetic sensor that mounts to the transmission tail-shaft housing. It generates a signal based on the rotation of an internal reluctor wheel. The sensor is secured by a single bolt.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
