Chevrolet Express 2500 Intake Air Temperature Sensor Guide (2004-2009)
Is your work van running rough or getting bad gas mileage? A faulty intake air temperature sensor could be the problem.
- A bad IAT sensor commonly causes a Check Engine Light, poor gas mileage, and rough running on your Express 2500.
- The most frequent trouble code is P0113, which usually points to a bad connection or a failed sensor.
- Replacement is simple and can be done at home with basic tools in under 30 minutes.
- Quality aftermarket brands like Standard Ignition are a reliable alternative to OEM parts for this repair.
Is Your Intake Air Temperature Sensor Failing?
A bad intake air temperature (IAT) sensor can cause noticeable problems in your 2004-2009 Chevrolet Express 2500. Because the engine's computer relies on this sensor for correct fuel mixture, a bad signal can throw everything off. You're not just losing performance; you're likely wasting fuel every time you drive.
Common Symptoms of a Bad IAT Sensor

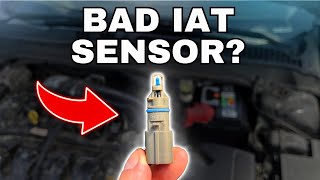

🎬 Watch: A visual guide to common IAT sensor failure symptoms.- Check Engine Light: This is often the first sign. You may see trouble codes like P0113, which is common for a high voltage signal in Chevy vehicles.
- Poor Fuel Economy: If the sensor tells the computer the air is colder than it is, the engine will run rich, wasting gas.
- Rough Idle: The engine may idle unevenly or even stall because the air-fuel mixture is incorrect.
- Hard Starting: Especially when the engine is cold, the wrong fuel mixture can make the van difficult to start.
- Sluggish Performance: You might feel a lack of power, hesitation when you press the gas, or slow acceleration.
- Increased Emissions: An incorrect fuel mixture can lead to black smoke from the exhaust and failed emissions tests.
A Note on Diesel Engines
For Express vans with the 6.6L Duramax diesel engine, a failing IAT sensor can sometimes trigger a "reduced power" message on the dash. These engines may have more than one temperature sensor, so it's important to diagnose the correct one.
Choosing the Right Aftermarket IAT Sensor
When replacing the IAT sensor on your Express 2500, you have a choice between OEM (Original Equipment Manufacturer) from a dealer and aftermarket parts. For a straightforward sensor like this, a quality aftermarket part offers a reliable repair without the high dealer price tag.
Brand Spotlight: Standard Ignition
Standard Ignition (also known as Standard Motor Products or SMP) is a well-regarded aftermarket brand. They manufacture parts that are designed to be direct-fit replacements for the original, ensuring an easy installation. Standard states their sensors undergo extensive testing to ensure reliability and are made from high-quality materials to withstand engine heat. Customer reviews for their IAT sensors are generally positive, with users noting they are easy to install and solve common engine problems.
Pro Tip: Check Your Connections First
Sometimes the sensor itself is fine. A trouble code like P0113 (IAT Sensor Circuit High Input) often points to an open circuit. This could be a loose connector, a corroded pin, or a wire that has been damaged. Before buying a new part, always inspect the sensor's wiring and connector for any obvious issues.
Cost of Replacing an IAT Sensor (2004-2009 Express 2500)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $88.74 |
| New OEM (GM / ACDelco) | $52 - $85 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the IAT sensor located on a 2004-2009 Chevy Express 2500?
The IAT sensor is typically located in the air intake path after the air filter. On many GM V8 engines of this era, it is integrated directly into the Mass Airflow (MAF) sensor housing, which is the first electronic component on the plastic tube after the air filter box. In some configurations, it may be a separate sensor that screws or pushes into the intake duct or the intake manifold itself. Always visually confirm the location on your specific engine before ordering.
Can I replace the IAT sensor myself? 🎬 Watch this walkthrough for replacing the sensor on a Chevy Express.
Yes, this is a very DIY-friendly job. If it's a standalone sensor, it usually involves unplugging the electrical connector and unscrewing or unclipping the sensor. If it's part of the MAF sensor, you will replace the entire MAF assembly, which is also typically held on with a couple of screws and a hose clamp. The job requires basic hand tools and can usually be done in under 30 minutes.
Are there any recalls for this part?
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Chevrolet or the NHTSA for the intake air temperature sensor on the 2004-2009 Express 2500.
What does the code P0113 mean? 🎬 See how to diagnose and fix a P0113 trouble code.
P0113 stands for "Intake Air Temperature Sensor 1 Circuit High Input." This means the engine's computer is seeing a voltage from the sensor that is higher than the normal operating range. This is almost always caused by an open circuit—meaning the sensor is unplugged, the wiring is broken, or the sensor itself has failed internally. On a scan tool, this fault often shows up as an impossibly cold temperature reading, like -40°F.
Helpful Videos
Technical Specifications
OEM Part Numbers: 97381182 12625041 55569992
The sensor is a thermistor, which is a resistor that changes its electrical resistance based on temperature. It typically has a 2-terminal blade-style connector and screws or clips into the intake system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
