Chrysler Pacifica Catalytic Converter Guide (2004-2009)
Everything you need to know before replacing the catalytic converter on your first-generation Pacifica.
- Always diagnose and fix the root cause of the failure (e.g., misfires, oil leaks) before installing a new converter.
- Verify if your Pacifica requires an EPA (Federal) or a more expensive CARB-compliant converter based on your state's laws.
- Codes P0420 and P0430 almost always mean the converter needs replacement, but faulty oxygen sensors should be checked first.
- Premium aftermarket brands like MagnaFlow and Walker offer better longevity than economy options.
Is Your Pacifica's Catalytic Converter Failing?
If you're reading this, you've likely been hit with a Check Engine Light and the dreaded P0420 or P0430 error codes. These codes point directly to "catalyst system efficiency below threshold," 🎬 See how a professional performs a complete P0420/P0430 diagnosis. meaning your converter isn't cleaning the exhaust as it should. Other signs include a rotten egg smell from the exhaust, a rattling noise from under the car, or a noticeable drop in engine power and fuel economy. 🎬 Watch: Learn more about common symptoms of a failing converter. A severely clogged converter can even cause your engine to stall or fail to start.
Don't Ignore the Root Cause
A catalytic converter doesn't just fail on its own. It's almost always killed by another problem. Common culprits include engine misfires from bad spark plugs or ignition coils, oil or coolant leaking into the exhaust, or faulty oxygen sensors. If you don't fix the original problem, you will destroy your new converter in a short amount of time.
Choosing the Right Aftermarket Converter
When replacing the converter on your 2004-2009 Pacifica, you have options. The original Mopar part can be extremely expensive, often costing over $2,000. Aftermarket parts offer a more affordable solution, but quality varies. They can be grouped into three general tiers.

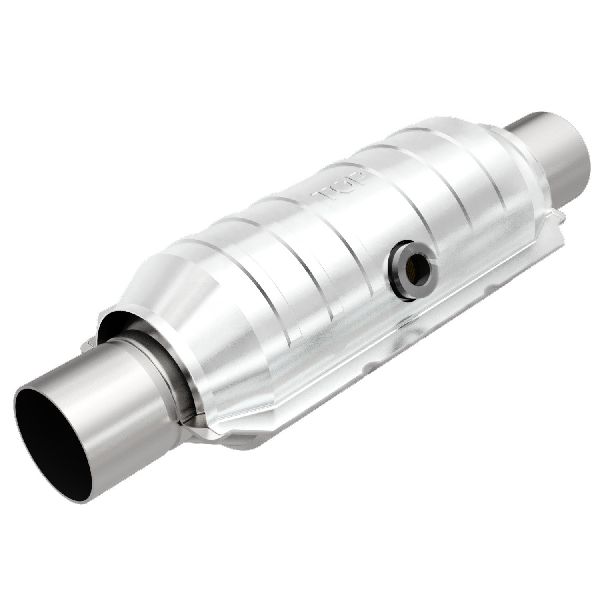

Tier 1: Premium Brands (MagnaFlow, Walker)
These are the top-tier aftermarket options. Brands like MagnaFlow and Walker are well-regarded for their quality and durability. They often use stainless steel construction and a higher loading of precious metals, which means they are more likely to perform correctly and keep the Check Engine Light off long-term. While they are the most expensive aftermarket choice, they offer the best chance of a one-and-done repair.

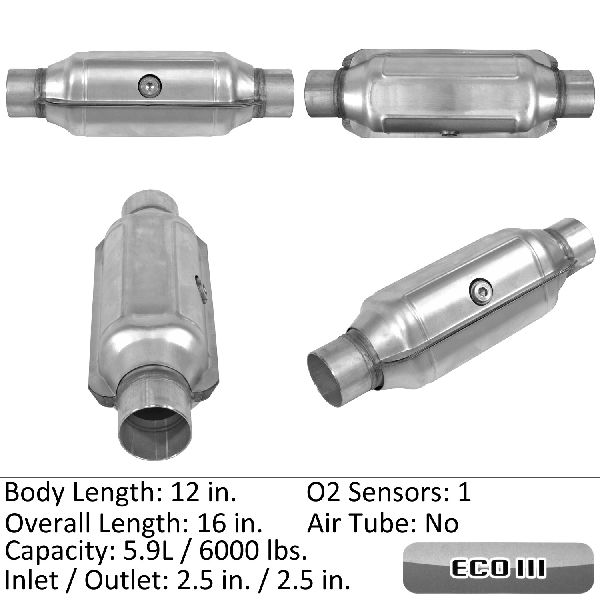

Tier 2: Mid-Grade Brands (Eastern Catalytic, AP Exhaust)
Brands like Eastern Catalytic and AP Exhaust offer a solid balance between price and performance. They are a popular choice for daily drivers where the owner wants a reliable part without the premium price tag. Fitment can sometimes be less precise than premium brands, but they generally provide good value and meet EPA emissions standards.

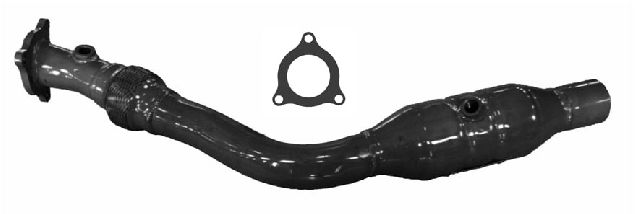

Tier 3: Economy Brands (Evan Fischer, Davico, Original Performance)
These are the most budget-friendly options. While they will get your vehicle back on the road and can clear an emissions code, their longevity is often shorter. They may use less robust materials and have a lower concentration of the precious metals needed for the chemical reaction. These are best suited for situations where the vehicle's remaining life is short or budget is the absolute primary concern.
EPA vs. CARB: A Critical Choice
You must install a converter that is legal in your state. Most states use EPA (Federal) standards. However, California, New York, Colorado, and Maine require CARB-compliant converters, which are more robust and more expensive. Check your vehicle's emissions label (usually under the hood) and local regulations before buying. Installing an EPA-rated part in a CARB state will result in a failed emissions test.
What Will It Cost?
Prices vary based on the brand, whether you need a Federal (49-State) or CARB-compliant part, and local labor rates. The 2004-2009 Pacifica has multiple converters, and you may need to replace the front (manifold), rear, or both.
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Dealer) Part | $2100 - $3000+ |
| New Aftermarket Part | $135 - $1302 |
| Shop Labor | $200 - $450 |
| Total Aftermarket Replacement | $335 - $1752 |
Frequently Asked Questions
What are the P0420 and P0430 codes?
P0420 indicates a problem with the catalytic converter on Bank 1 of the engine, while P0430 indicates a problem on Bank 2. On the V6 Pacifica, Bank 1 is the cylinder bank closer to the firewall (rear), and Bank 2 is closer to the radiator (front). These codes mean the converter's efficiency has dropped below the acceptable threshold.
Can I just clean my catalytic converter?
Generally, no. By the time a converter is inefficient enough to trigger a Check Engine Light, the internal catalyst materials are permanently damaged or coated. Fuel additives and cleaning services are temporary fixes at best and rarely solve the underlying issue. Replacement is the only reliable, long-term solution.
Do I need to replace my oxygen sensors too?
It's highly recommended. Oxygen sensors work with the converter to monitor its performance. A lazy or failing O2 sensor can mimic converter failure or even contribute to it. Replacing the upstream and downstream O2 sensors with the converter is a smart investment to ensure the entire system works correctly.
Is this a DIY job? 🎬 Watch this DIY tutorial to see the replacement process firsthand.
For an experienced DIY mechanic, it's possible. However, it can be a difficult job. Exhaust bolts are often severely rusted and seized, requiring cutting tools and a torch. You will need to lift the vehicle safely and may need to remove other components to gain access. For many, taking it to a professional exhaust shop is the better option.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4809660AE 4809660AF 4880670AC
The 2004-2009 Chrysler Pacifica was available with a 3.5L or 3.8L V6 engine. The exhaust configuration and catalytic converter part numbers differ between these engines and model years. Ensure you select the correct part for your specific vehicle configuration. Some models have converters integrated with the exhaust manifold, while others are located further downstream.
