A Guide to the Engine Intake Manifold Gasket Set for the 2004-2009 Chrysler Pacifica
Understanding the signs of a failing intake gasket and how to choose the right replacement for your Pacifica's V6 engine.
- A hissing or whistling noise may be a common intake manifold runner issue on 3.5L engines, not necessarily a bad gasket.
- Symptoms include rough idle, Check Engine Light (lean or misfire codes), and potential coolant leaks.
- It is critical to replace both the upper (plenum) and lower intake gaskets at the same time.
- Premium aftermarket brands like Fel-Pro and Victor Reinz are highly recommended for this repair due to the labor involved.
Is Your Pacifica's Intake Gasket Failing?
A failing intake manifold gasket can cause a range of engine problems. Because the gasket seals both air and, in some cases, coolant, the symptoms can vary. The most common issue is a vacuum leak, where outside air is sucked into the engine past the gasket. This throws off the computer's calculations and can lead to noticeable performance issues.
A Note on the 3.5L Engine Whistle
Many 2004-2006 Pacificas with the 3.5L V6 engine develop a distinct whistling or hissing sound from the engine bay. While this sounds like a vacuum leak from a gasket, it is often caused by a separate, known issue with the upper intake manifold itself. A control rod inside the manifold can become misaligned, creating a leak. This is not a gasket failure, but it's important to be aware of this common problem as it produces similar symptoms.
Symptoms of a Bad Intake Manifold Gasket
- Rough or Unstable Idle: The engine may vibrate or run unevenly when stopped.
- Hissing Sounds: A vacuum leak from a torn gasket can create a noticeable hissing or whistling noise.
- Check Engine Light: A vacuum leak will disrupt the air-fuel ratio, triggering codes like P0171 (System Too Lean) or misfire codes.
- Coolant Leaks or Low Coolant: If the gasket fails around a coolant port, you may see coolant leaking onto the top of the engine or notice your coolant level dropping.
- Engine Overheating: A significant coolant leak from the intake gasket can lead to the engine overheating.
- Reduced Engine Power and Poor Fuel Economy: An incorrect air-fuel mixture from a leak prevents the engine from running efficiently.
Choosing the Right Aftermarket Gasket Set
When replacing the intake manifold gaskets, you have a choice between OEM (Original Equipment Manufacturer) and several aftermarket brands. For a vehicle like the 2004-2009 Pacifica, high-quality aftermarket gaskets offer excellent performance, often at a better price than dealer parts.
Your Pacifica has two main intake gaskets: a lower set that seals the manifold to the cylinder heads, and an upper gasket (plenum gasket) that seals the two halves of the intake manifold. It is highly recommended to replace both at the same time.
Brand Quality Tiers
- Premium Aftermarket (Fel-Pro, Victor Reinz): These brands are well-respected and often used by professional mechanics. Fel-Pro is known for designing gaskets specifically for the repair environment, which may have slightly warped or imperfect surfaces. Victor Reinz is an OEM supplier for many car manufacturers and is considered a high-quality choice. For reliability, choosing a set from one of these brands is a sound investment.

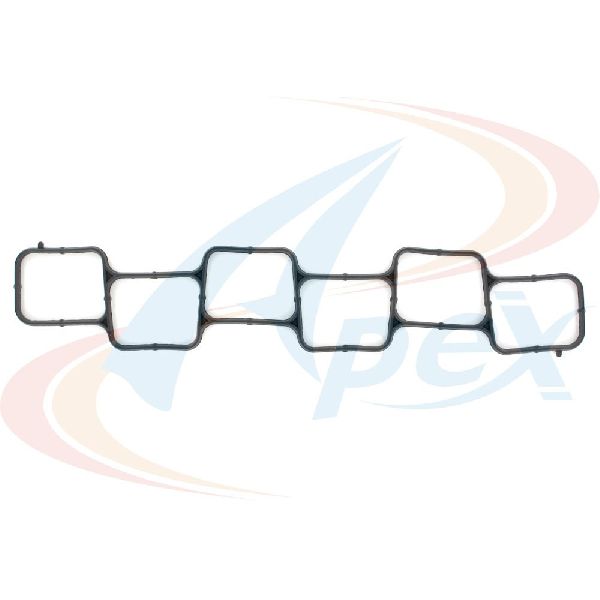

- Standard/Economy (Apex): Brands like Apex offer a more budget-friendly option. While they meet basic requirements, they may not have the advanced materials or design features of premium brands. For a critical and labor-intensive job like this, a premium gasket is often worth the small additional cost for peace of mind.
Pro Tip: While You're In There...
Replacing the intake manifold gaskets requires significant labor to remove the upper intake. This gives you direct access to other parts that are difficult to reach. Consider replacing the spark plugs, PCV valve, and even the knock sensors if they are original, as this will save you from paying for the same labor twice in the future.
Cost to Replace Chrysler Pacifica Intake Manifold Gaskets
The cost can vary depending on your location and the shop's labor rate. Estimates for the 2004-2009 Pacifica show a wide range, likely due to some quotes including the price of a new manifold itself, which is very expensive and usually not needed for a gasket job.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $200 - $450 |
| New Aftermarket Gasket Set | $10 - $65 |
| New OEM Gasket Set | $40 - $90 |
| Total Estimated Cost | $210 - $515 |
Note: Costs are estimates and can vary. This table reflects the cost for replacing the gaskets only, not the entire intake manifold assembly.
Frequently Asked Questions (FAQ)
Do I need to replace the upper and lower gaskets at the same time?
Yes. The intake manifold must be removed to access the lower gaskets. Since the upper plenum gasket must be removed in the process, it should always be replaced to ensure a proper seal when everything is put back together.
Is an OEM gasket better than aftermarket for my Pacifica?
Not necessarily. High-quality aftermarket brands like Fel-Pro and Victor Reinz are engineered for real-world repair conditions and are trusted by many professional shops. They provide an excellent seal and are often more affordable than OEM parts from a dealer.
Can a bad intake gasket cause my engine to misfire?
Yes. A vacuum leak allows unmetered air into a specific cylinder or bank of cylinders, which can lean out the air-fuel mixture and cause a misfire. This will often trigger a Check Engine Light with codes like P0300 (random misfire) or P0301-P0306 for a specific cylinder.
Are there any recalls for the intake manifold gasket on the 2004-2009 Pacifica?
No, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Chrysler for failing intake manifold gaskets on the 2004-2009 Pacifica. Failures are typically due to age and wear.
Technical Specifications
OEM Part Numbers: 4663852AB 4781580AA 4781034AB
The system uses a set of lower intake manifold gaskets and an upper plenum gasket. Gasket sets are specific to the 3.5L/4.0L V6 engines and the 3.8L V6 engine.
