Chrysler Pacifica Engine Oil Pressure Switch Guide for 2004-2009 Models
That flickering oil light on your Pacifica's dashboard is a common problem you shouldn't ignore.
- A flickering oil light on a 2004-2009 Pacifica is very often a bad oil pressure switch, not a bad engine.
- Never drive with the oil pressure light on; stop the vehicle immediately to prevent catastrophic engine failure.
- Replacement is a difficult job due to the switch's hidden location behind an engine pulley.
- Choosing a quality aftermarket brand is recommended, as the original part has a high failure rate.
Understanding the Oil Pressure Switch in Your Pacifica
If you own a 2004-2009 Chrysler Pacifica, you might eventually see the dreaded red oil warning light flicker or stay on. While this can mean your engine has a serious oil pressure problem, it's often just a failed engine oil pressure switch. This is a very common issue for these vehicles. The switch itself is a simple sensor that can wear out over time, leak oil, or send incorrect signals. It's important to figure out the cause right away, because ignoring a true low-oil-pressure situation can destroy your engine.
Symptoms of a Failing Oil Pressure Switch
Look out for these common signs of a bad oil pressure switch. Remember to check your oil level first; if the oil level is fine, the switch is the next logical suspect.
- Flickering Oil Light: The oil pressure light on your dash may flicker, especially at idle or during turns, and then go away as you accelerate.
- Oil Light Stays On: The warning light comes on and stays on, even though you've confirmed the engine has plenty of oil.
- Oil Leaks: The switch itself can develop a leak, causing oil to drip. You may see oil residue on or around the sensor.
Warning: Do Not Drive With the Oil Light On
Never assume the light is just a faulty sensor. An illuminated oil pressure light can mean your engine is not getting lubricated properly. Pull over to a safe place and shut off the engine immediately to prevent catastrophic engine damage.
Choosing the Right Aftermarket Switch
The original factory switches on these Pacificas are known to fail, so choosing a quality aftermarket part is a smart move. You don't need to pay dealership prices for a reliable replacement. Here’s a look at the brands available:
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard Ignition generally produces reliable sensors that meet or exceed original specifications. They are a solid choice for this repair.
- Vemo: A brand that offers a wide range of electronic parts. While not as well-known in the US market for Chrysler parts, they are an established European parts manufacturer.
- Crown Automotive: Crown is very well-known for Jeep parts. However, some user reviews in Jeep communities suggest their electronic components and gauges can sometimes be less reliable than other brands.
Given the difficulty of the replacement job, it's wise to spend a few extra dollars on a higher-quality switch from a brand like Standard Ignition to avoid having to do the job twice.
🎬 Watch a mechanic perform the full switch replacement step-by-step.Cost of Replacing the Oil Pressure Switch
The cost of the part is low, but labor can be significant due to the switch's difficult location.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $13 - $30 |
| New OEM (Mopar) Switch | $33 - $56 |
| Shop Labor | $150 - $300+ |
| Total Professional Replacement | $170 - $350+ |
Frequently Asked Questions
Is it hard to replace the Pacifica oil pressure switch myself?

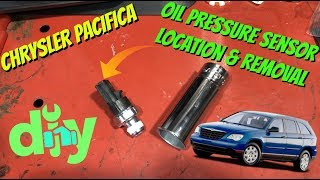

Yes, this is a challenging DIY job for the 3.5L engine. The switch is not near the oil filter as in most cars. It is located behind an idler pulley, requiring 🎬 Watch: See the exact location and removal process here. removal of the passenger front wheel, inner fender liner, serpentine belt, and the pulley itself for access. Many owners find it to be a very frustrating task due to the tight space. 🎬 See this walkthrough for an easier way to access the sensor. Unless you are an experienced DIY mechanic with the right tools (like a 1-1/16" oil pressure switch socket and long pliers), it may be best to leave this job to a professional.
Are there any recalls for this part?
No. As of early 2026, there are no specific NHTSA recalls or Technical Service Bulletins (TSBs) for a faulty engine oil pressure switch on the 2004-2009 Chrysler Pacifica.
My oil light is on, but my engine sounds fine. Is it safe to drive?
No. You should never drive with the oil pressure light on. Even if the engine sounds normal, it could be suffering from oil starvation which causes rapid, silent, and permanent damage. The risk of destroying your engine is too high.
Could the oil light mean my oil pump is bad?
Yes, it's possible. While the switch is the most common point of failure, the light is designed to warn of low pressure from any cause, including a failing oil pump. A mechanic can perform a manual oil pressure test to determine if the pump is working correctly before replacing the switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149098AA 4608303AB
Connector: 1-Blade Male Terminal. Socket Size: 1-1/16 inch.
