Chrysler Pacifica Spark Plug Guide for 2004-2009 Models
Keep your Pacifica's V6 engine running smoothly by understanding when and how to replace your spark plugs.
- The most difficult part of the job is replacing the three rear spark plugs, which requires removing the upper intake manifold.
- Choose high-quality iridium or double platinum plugs from brands like NGK, Champion, or Denso for the best longevity and performance.
- Always replace all six spark plugs at once to ensure balanced engine performance and avoid repeating the labor-intensive job soon after.
- Common symptoms of failure include a rough idle, poor acceleration, and a check engine light with misfire codes (P0300-P0306).
Is Your Pacifica Showing Signs of Bad Spark Plugs?
Worn-out spark plugs can cause noticeable problems in your 2004-2009 Chrysler Pacifica. One of the most common signs is a rough idle, where the engine shakes or sputters when you're stopped. You might also experience a loss of power and slower acceleration, making the vehicle feel sluggish. Many owners first notice a problem when the check engine light comes on, often with codes indicating a cylinder misfire (like P0300, P0301, P0302, etc.). Other symptoms include difficulty starting the engine, especially in cold weather, and a decrease in fuel economy.
🎬 Watch a detailed breakdown of common bad spark plug symptoms.A Note on Replacement Difficulty
The 2004-2009 Pacifica is equipped with a V6 engine (3.5L, 3.8L, or 4.0L). While replacing the front three spark plugs is straightforward, the rear three are located underneath the upper intake manifold (plenum). This manifold must be removed to access them, making the job significantly more complex and time-consuming for a DIY mechanic. If you're not comfortable with this level of disassembly, it's best to leave this job to a professional.
🎬 See how to replace spark plugs and the EGR valve.Choosing the Right Aftermarket Spark Plugs
When shopping for new spark plugs, you'll find several types and brands. The original Mopar plugs are typically made by Champion or NGK, so choosing these brands in the aftermarket is a safe bet for reliable, OEM-quality performance.
Here’s a breakdown of common plug types and trusted brands:
- OEM-Equivalent Brands (High Quality): NGK and Champion are often the original equipment manufacturers for Chrysler. They offer iridium and platinum plugs that provide long life and consistent performance. Denso is another top-tier Japanese brand known for excellent quality and durability. These are highly recommended for the best performance and longevity.
- Reliable Aftermarket Brands (Good Quality): Bosch and Autolite offer a wide range of platinum and iridium plugs that are a good balance of price and quality. They are a popular upgrade from standard copper plugs and perform well in the Pacifica's V6 engines.
- Standard/Budget Brands: Brands like ACDelco and Crown Automotive provide functional replacements that meet basic requirements. While often more affordable, they may not offer the same longevity as iridium or double platinum 🎬 Compare NGK and Champion iridium plugs to find your best fit. plugs from premium brands.
For the best results, choose an Iridium or Double Platinum spark plug. These materials are much harder than standard nickel/copper, allowing them to last longer (often up to 100,000 miles) and provide a more consistent spark.
| Category | Price Range (Set of 6) | Notes |
|---|---|---|
| New Aftermarket (Iridium/Platinum) | $40 - $140 | Price varies by brand (e.g., NGK, Bosch, Champion). |
| New Aftermarket (Copper) | $25 - $60 | Shorter lifespan, requires more frequent changes. |
| Shop Labor | $293 - $430 | Higher cost is due to the labor needed to remove the intake manifold for rear plug access. |
Pro Tip: Replace as a Full Set
Always replace all six spark plugs at the same time. This ensures even performance across all cylinders and saves you from having to repeat the difficult rear-plug replacement job a short time later. It's also a good time to inspect the ignition coils and spark plug wires (if applicable to your engine) for any signs of wear or damage.
Frequently Asked Questions
Are there any recalls for 2004-2009 Pacifica spark plugs?
No, there are no specific recalls for spark plugs on the 2004-2009 Chrysler Pacifica. Searches of the NHTSA database show recalls for later model year Pacifica hybrids related to battery packs, but nothing concerning spark plugs for this generation.
What is the correct spark plug gap for my Pacifica?
The recommended spark plug gap for the 3.5L and 4.0L V6 engines is typically 0.052 inches. However, most modern iridium and platinum plugs come pre-gapped. It is still a good practice to verify the gap with a feeler gauge before installation. Always confirm the exact specification for your specific year and engine model.
Should I use anti-seize on the new spark plugs?
Many modern spark plugs from brands like NGK have a special nickel plating that prevents seizing and does not require anti-seize compound. Applying anti-seize can alter the torque value, leading to over-tightening. Check the manufacturer's instructions on the box; if they don't recommend it, don't use it.
What's the difference between platinum and iridium spark plugs?
Iridium is a harder, more durable precious metal than platinum. Iridium spark plugs generally have a longer service life and provide a more focused, efficient spark. Double platinum plugs have platinum on both the center and ground electrodes for long life. For the Pacifica, either type is an excellent upgrade over standard copper plugs.
Helpful Videos
Technical Specifications

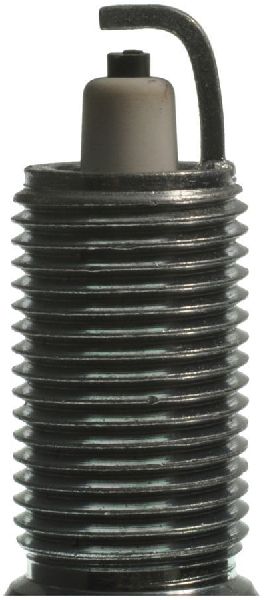

OEM Part Numbers: SZFR5LP13G
Engine compatibility: 3.5L V6, 3.8L V6, 4.0L V6. Recommended Plug Type: Iridium or Double Platinum. Recommended Gap: ~0.052 inches (verify for your specific engine).
