A Guide to the Electric Fuel Pump for the 2004-2009 Ford Expedition
Keep your Expedition running strong by understanding fuel pump failure and replacement.
- A failing fuel pump causes stalling, hesitation, and no-start conditions.
- Before replacing the pump, check the Fuel Pump Driver Module (FPDM) for corrosion, as it's a very common failure point that mimics a bad pump.
- Replacing the entire fuel pump module is recommended over just the pump motor to also replace the aging fuel level sender.
- This is a difficult DIY job that requires dropping the fuel tank; professional installation is recommended for most owners.
Is Your Expedition's Fuel Pump Failing?
A bad fuel pump rarely fails without giving some warning signs. If your Expedition suddenly stalls, struggles to start, or hesitates when you press the gas, the fuel pump could be the culprit. These symptoms happen because the engine isn't getting a steady supply of gasoline. You might also hear a loud whining or buzzing sound from the rear of the vehicle, near the fuel tank. This is the sound of the pump's electric motor working too hard as it begins to fail.
Common Problems and Known Issues
While there are no widespread recalls for the fuel pump on the 2004-2009 Ford Expedition, these vehicles have some known issues in the fuel delivery system that can seem like a bad pump.
Check This Before Replacing the Pump
A common failure point on this generation of Expedition is the Fuel Pump Driver Module (FPDM). This small electronic part controls the voltage to the fuel pump. It is mounted to the frame and can corrode, causing the engine to stall or not start. Always inspect the FPDM before 🎬 Watch: How to find and replace a corroded driver module condemning the fuel pump itself. Additionally, some models have an internal fuel pump relay inside the main fuse box that can fail, which may require replacing the entire fuse box.
🎬 See how a faulty fuse box can mimic pump failureFor 2009 models specifically, Ford issued Technical Service Bulletin (TSB) 13-2-8 for problems with an inaccurate fuel gauge and fluctuating distance-to-empty readings, which requires replacing the fuel pump module.
Choosing the Right Aftermarket Fuel Pump
When shopping for a replacement, you will see two main options: the pump motor itself or the complete fuel pump module assembly. The module includes the pump, the sending unit (which reads the fuel level), and the housing. For a vehicle of this age, replacing the entire module is usually the best choice to avoid future problems with the sending unit.
OEM vs. Aftermarket Quality:
- OEM (Motorcraft): Generally considered the most reliable option, but also the most expensive. If you plan to keep your Expedition for a long time, this is a safe bet.
- Premium Aftermarket (e.g., Delphi, Bosch): These brands have a strong reputation for quality and are often a good balance between price and reliability.
- Standard Aftermarket (e.g., US Motor Works): This tier offers significant cost savings. US Motor Works uses quality materials like corrosion-resistant sensors and durable plastics in their assemblies. User reviews are generally positive for the price, though some have reported issues with included accessories like strainers not fitting perfectly. They are a viable option for a budget-conscious repair.
- Economy Brands: The cheapest pumps available online often have very high failure rates. It is not recommended to use them, as replacing the fuel pump is a labor-intensive job you don't want to do twice.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft Assembly) | $250 - $450 |
| New Aftermarket (US Motor Works Pump) | $66.05 |
| Used OEM | $50 - $150 |
| Shop Labor | $275 - $410 |
Frequently Asked Questions
Is replacing the fuel pump a DIY job?
This is a difficult job for a beginner. It requires safely draining the fuel tank and then lowering the heavy, bulky tank from under the vehicle. It requires special tools to disconnect fuel lines and remove the lock ring. If you are not comfortable working with gasoline and heavy components, it is best left to a professional. The job can take 3-5 hours for an experienced DIYer.
🎬 Watch this step-by-step guide to removing the tank and pumpDo I need to replace the fuel filter at the same time?
Yes. A clogged fuel filter can strain a new pump and cause it to fail early. Always install a new fuel filter when you replace the fuel pump.
Why can't I fill my gas tank completely after a fuel pump replacement?
This is a common issue if the vent hose on the fuel tank was kinked or improperly reinstalled when the tank was put back in place. The tank will need to be lowered again to correct the hose position.
What is the inertia switch?
The inertia switch is a safety device that cuts power to the fuel pump in an accident. If your Expedition won't start after a sudden jolt or collision, you may need to reset this switch. It is typically located in the passenger-side footwell area behind a kick panel.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2L1Z-9H307-BF 2L1Z-9H307-BG 9L3Z-9H307-E

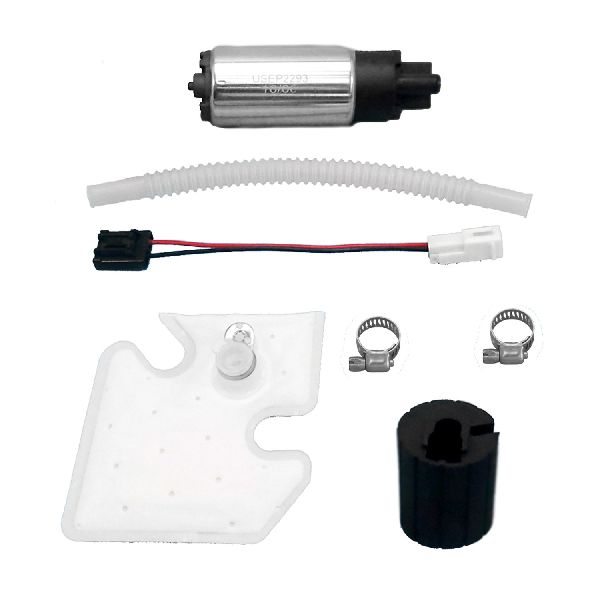

This part is the electric fuel pump motor. It is designed to fit inside the factory fuel pump module assembly. A new strainer is typically included.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
