Guide to Replacing Fuel Injectors on a 2004-2009 Isuzu NPR
Keep your NPR running strong by understanding when and how to replace your diesel fuel injectors.
- Symptoms like hard starting, rough idle, and black smoke are common signs of a failing fuel injector on an NPR.
- New injectors for diesel engines must be electronically coded to the vehicle's computer (ECM) with a scan tool.
- Fuel contamination is a major cause of injector failure; using clean fuel and changing filters is crucial.
- Verify your engine type (e.g., 5.2L Diesel vs. 6.0L Gas) before purchasing, as parts are not interchangeable.
Is Your Isuzu NPR Showing Signs of Fuel Injector Trouble?
A failing fuel injector in your 2004-2009 Isuzu NPR can cause a range of noticeable problems. Because these trucks often use the robust 4HK1 or similar diesel engines, injector issues can significantly impact performance and reliability. If you notice any of the symptoms below, it might be time to inspect your fuel system.
Common Symptoms of Bad Fuel Injectors:
- Rough Idle or Misfiring: The engine may shake or vibrate more than usual when stopped. This happens when an injector fails to deliver the correct amount of fuel, causing an imbalance.

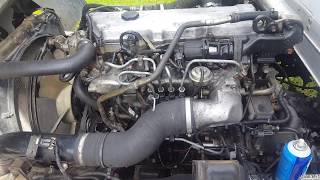

- Hard Starting: A classic sign, especially on diesel engines. Your truck may crank for a long time before starting, or it might not start at all without using starting fluid. 🎬 Watch this guide on troubleshooting Isuzu NPR hard start issues. This can be caused by an injector leaking pressure from the common rail.
- Loss of Power and Poor Acceleration: If your NPR feels sluggish or struggles to get up to speed, a clogged or failing injector could be starving the engine of fuel.
- Black or White Smoke from Exhaust: Excessive black smoke often points to unburned fuel from an injector that is stuck open or leaking. White smoke, particularly on startup, can also indicate an injector problem.
- Increased Fuel Consumption: If you're stopping for fuel more often, a faulty injector could be wasting fuel by delivering too much or spraying it inefficiently.
- Fuel Smell: A strong diesel fuel odor under the hood could mean an external leak from a cracked injector body or a bad seal, which is a serious fire hazard.
Symptoms & Severity
| Symptom | Description | Severity |
|---|---|---|
| Engine Misfire / Rough Idle | Shaking or stumbling, especially when the truck is not moving. | Moderate |
| Hard Start / No Start | Engine cranks but won't turn over, or requires starting fluid. | Serious |
| Black Smoke | Visible black smoke from the exhaust, especially during acceleration. | Moderate |
| Fuel Leak | Noticeable smell of diesel or visible fuel around the engine. | Critical |
Choosing the Right Aftermarket Fuel Injector
When replacing injectors on your NPR, you'll find both OEM and aftermarket options. The original injectors are often made by Denso. Aftermarket brands like Delphi and Standard Ignition offer alternatives that can provide a good balance of quality and cost.
Pro Tip: The 2004-2009 Isuzu NPR may have different engines, like the 5.2L 4HK1 diesel or a 6.0L V8 gas engine. Always verify your engine type before ordering parts, as the injectors are completely different.
Brand Quality Assessment

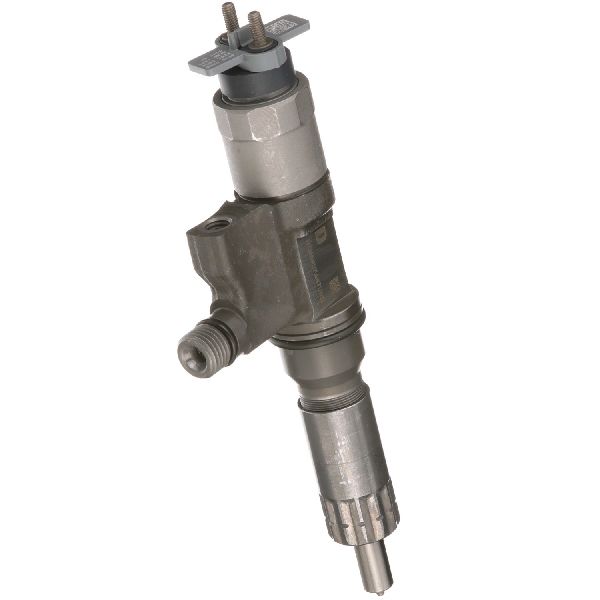

- Delphi: Delphi is a well-respected brand that is often an Original Equipment Manufacturer (OEM) for many car companies. They have a strong reputation in diesel systems, known for reliability and performance that often meets or exceeds factory specifications. For a commercial workhorse like the NPR, a Delphi injector is a solid choice.
- Standard Motor Products (Standard Ignition): A long-standing aftermarket brand, Standard offers parts that are designed to be reliable replacements for the original components. While sometimes more budget-friendly, they are a well-known quantity in the repair world.
Important: Programming New Injectors
Most modern common rail diesel injectors, including those on the 4HK1 engine, have a unique ID code (also called a trim code or QR code). This code must be programmed into the Engine Control Module (ECM) using a scan tool after installation. Skipping this step will cause the engine to run poorly, with rough idling and bad fuel economy, 🎬 Learn more about common rail injector failures and tech tips. because the ECM won't know the exact characteristics of the new injector.
Cost of Replacing Isuzu NPR Fuel Injectors
The cost can vary widely based on the brand and whether you do the work yourself. 🎬 See a breakdown of bad injector symptoms and replacement costs. Diesel injectors are more expensive than their gasoline counterparts.
| Part Type | Estimated Cost Range (per injector) |
|---|---|
| New OEM (Denso) | $350 - $600+ |
| New Aftermarket (Delphi, Standard) | $70 - $790 |
| Remanufactured | $100 - $350 |
| Used | $50 - $100 |
| Shop Labor | $400 - $800+ |
Frequently Asked Questions (FAQ)
Can I replace just one bad fuel injector?
Yes, you can replace a single failed injector. However, if one has failed due to high mileage, the others may not be far behind. For this reason, many mechanics recommend replacing them as a set to ensure balanced performance and avoid future labor costs.
Is replacing an NPR fuel injector a DIY job?
For an experienced mechanic, yes. The process involves removing fuel lines, the valve cover, and electrical connectors. However, it requires special care to keep dirt out of the high-pressure fuel system. The most critical step is programming the new injector's ID code into the ECM, which requires a professional-grade scan tool. For most owners, this job is best left to a qualified shop.
Were there any recalls for the 2004-2009 NPR fuel injectors?
Our search did not find any specific NHTSA recalls for fuel injectors on the 2004-2009 Isuzu NPR. However, Isuzu did issue a Technical Service Bulletin (TSB) for symptoms like hard starting, rough idle, and lack of power, which pointed to fuel contamination as a common cause of fuel system problems. Always ensuring clean fuel is used can extend the life of your injectors.
What is an injector sleeve and do I need to replace it?
The injector sleeve (or nozzle sleeve) is a metal tube in the cylinder head that the injector sits in. It can sometimes be a source of leaks. Replacing injectors on the 4HK1 engine does not always require sleeve replacement, but if the cylinder head is being serviced, it's a common procedure. Special tools are required for this job.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-98284393-0 8-97329703-5 8-97329703-2 8-97329703-3 8-97329703-4 8-97329703-6 8982843930 8982843931
Primarily for Isuzu 4HK1 5.2L common rail diesel engines. Also fits some 6.0L V8 gasoline engines, but parts are different. New injectors require programming of the ID code into the ECM.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
