Subaru Forester Engine Coolant Bypass Hose Guide (2004-2009)
Leaking coolant? This guide covers the common failure points of the engine coolant bypass hose on your 2004-2009 Forester.
- Failure is common due to age and heat, leading to leaks and potential overheating.
- While replacing the hose, inspect the connecting metal coolant pipes for rust, as they are also a known failure point.
- Quality aftermarket brands like Gates and Dayco offer reliable, OE-spec performance and are excellent choices for this repair.
- Always replace hose clamps with the hose and consider replacing other major coolant hoses at the same time as preventative maintenance.
Is Your Forester's Bypass Hose Failing?
The rubber hoses in your Forester's cooling system work in a tough environment. After more than a decade of heat cycles, the material becomes brittle, leading to cracks and leaks. The engine coolant bypass hose is no exception. A failure here can lead to coolant loss, overheating, and potentially severe engine damage like a blown head gasket. It's a critical part to inspect, especially on an older vehicle.
Symptoms of a Bad Engine Coolant Bypass Hose
- Coolant Leaks: This is the most common sign. You might see puddles of green or blue fluid under the engine. The bypass hose is often located near the thermostat housing or water pump, so check that area for drips or chalky residue. 🎬 Watch this guide on replacing a Subaru coolant bypass line.
- Sweet Smell: Leaking coolant has a distinct sweet odor. If you smell this around your car, especially when the engine is warm, a hose is the likely culprit.
- Engine Overheating: A significant leak will cause the coolant level to drop. If your temperature gauge starts climbing into the red, pull over immediately. Driving while overheating can cause catastrophic engine damage.
- Visible Hose Damage: Pop the hood and inspect the hoses. Look for cracks, splits (especially near the clamps), bulging, or soft, spongy spots. Any hose that doesn't feel firm and smooth should be replaced.
Check for Rusted Metal Pipes
On some Foresters, the rubber bypass hose connects to a metal pipe that runs under the engine. This pipe is known to rust severely, especially in regions that use road salt. When replacing a leaking bypass hose, always inspect the metal pipe it connects to. If the pipe is crusty or rusted, it should be replaced at the same time to prevent a future leak.

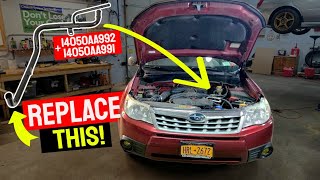

🎬 See how to replace a rusted Forester coolant bypass pipe.Choosing the Right Aftermarket Bypass Hose
For a vehicle like the 2004-2009 Forester, high-quality aftermarket hoses offer excellent value compared to dealer parts. The key is choosing a reputable brand that meets or exceeds original equipment (OE) specifications. All the brands listed below are known to produce reliable EPDM rubber hoses that are resistant to heat and chemical breakdown.
Brand Quality Tiers
- Tier 1 (Excellent Quality): Gates, Dayco. Both Gates and Dayco are major manufacturers that often supply original parts to carmakers. They are widely considered top-tier choices for aftermarket hoses, known for proper fitment and durability. Gates hoses are engineered to resist electrochemical degradation, a leading cause of hose failure.
- Tier 2 (Good Quality): ACDelco. While primarily GM's parts division, ACDelco offers parts for many makes and models. Their hoses are generally considered good quality, though some mechanics have a preference for Gates or Dayco for non-GM vehicles.
Pro Tip: Replace Your Hose Clamps
Always use new hose clamps when installing a new hose. The old spring clamps can lose their tension over time, and worm-gear clamps can damage the new hose if over-tightened. Gates specifically recommends replacing clamps with every new hose installation to ensure a leak-free seal.
Aftermarket Engine Coolant Bypass Hose Cost (2004-2009 Subaru Forester)
| Part Type | Price Range |
|---|---|
| New Aftermarket Engine Coolant Bypass Hose | $11.61 - $26.83 |
| Estimated Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Is replacing the engine coolant bypass hose a good DIY job?
Yes, for those with some mechanical experience. The main challenges are accessing the hose clamps, which can be in tight spaces, and properly draining and refilling the cooling system. You will need pliers for the clamps and a drain pan. If the hose is difficult to remove, hose clamp pliers can help break the seal without damaging the connecting pipes. The difficulty is around a 2 out of 5.
Should I replace other hoses at the same time?
Yes. If the bypass hose has failed due to age, the upper and lower radiator hoses, as well as the heater hoses, are likely near the end of their service life too. Replacing them all at once is a smart preventative measure that can save you from another breakdown. Complete hose kits are available for this purpose.
What kind of coolant should I use in my 2004-2009 Forester?
It is critical to use the correct coolant. For this generation of Forester, you should use Subaru Super Coolant (blue). This coolant comes pre-mixed and should not be diluted with water. Using the wrong type of coolant can lead to corrosion and damage to the cooling system.
Were there any recalls for this part?
No recalls were found for the engine coolant bypass hose on the 2004-2009 Subaru Forester. A recall for a leaking coolant pipe was issued for a small number of 2024 Foresters, but it does not apply to this generation.
Helpful Videos
Technical Specifications

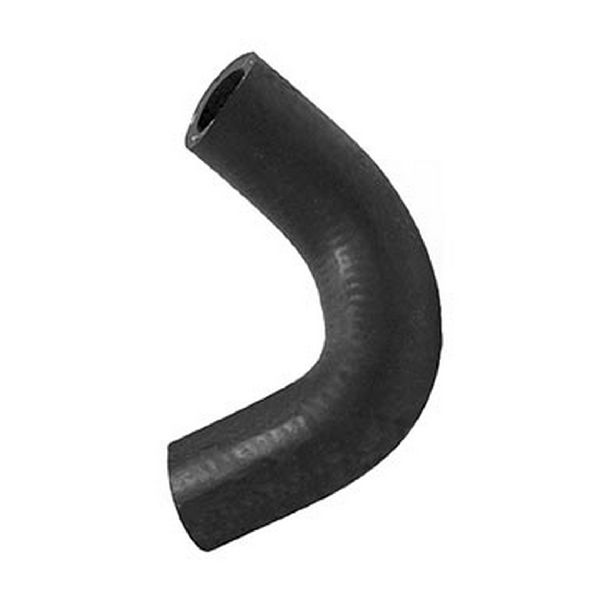

OEM Part Numbers: 14065AA121 807611090 99078AA450
Material: EPDM Rubber. Temperature Range: Approx. -40°F to 275°F.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
