A Guide to Transmission Filter Kits for the 2004-2010 BMW 525i (E60)
Keep your E60 525i's automatic transmission shifting smoothly by servicing it with the right parts and knowledge.
- The transmission filter is integrated into the oil pan; you must replace the entire pan to service the filter.
- BMW's "lifetime" fluid recommendation is misleading; service the transmission every 50,000-60,000 miles to ensure longevity.
- The fluid fill procedure is complex, requiring the fluid to be at a specific temperature (86-122°F) for an accurate level.
- While replacing the pan, it is highly recommended to also replace the Mechatronic sealing sleeve to prevent common leaks.
Understanding the "Lifetime Fluid" Myth
Many BMW owners have seen a sticker on their transmission stating the fluid is "lifetime" fill. However, this is misleading. In automotive terms, "lifetime" often refers to the manufacturer's tested service life, which for these transmissions is about 100,000 miles. Most experts and even the transmission manufacturer, ZF, recommend a service interval of every 50,000 to 60,000 miles to prevent premature wear, especially as the fluid can show significant contamination by that point. Ignoring this service can lead to serious transmission problems down the road.
Key Feature: Integrated Pan and Filter

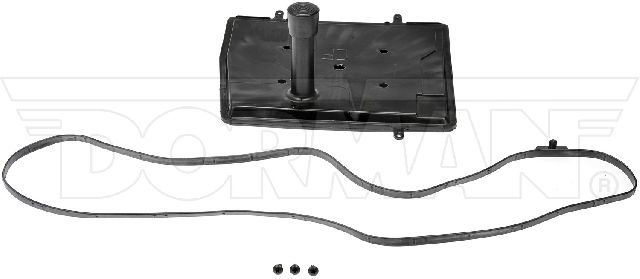

A critical point for the 2004-2010 BMW 525i is that the transmission filter is not a separate, drop-in part. It is integrated into the plastic oil pan. When you buy a "Transmission Filter Kit," you are actually buying a new pan with the filter built inside, along with a new gasket, drain plug, and bolts. You cannot service the filter without replacing the entire pan assembly.
Choosing the Right Aftermarket Transmission Filter Kit
Since the OEM part is made by ZF, a ZF-branded aftermarket kit is essentially an OEM-quality part without the BMW logo and often at a lower price. When considering other aftermarket brands, it's important to balance cost and quality, as a transmission is a component you don't want to risk with subpar parts.
Brand Quality Tiers
- OEM-Equivalent Brands (High Quality): Brands like ZF are the original equipment manufacturer, offering a direct replacement. Wix is also known for high-quality filtration products and is a reliable choice. These kits provide the best fit and material quality, ensuring a proper seal and filtration.
- Mid-Tier / Value Brands: Brands such as Beck Arnley, Vaico, and ATP often provide a good balance of quality and price. They are generally considered reliable for standard use. Some users have had good experiences with Vaico, though others prefer to stick with OEM for critical components.
- Budget-Friendly & Innovative Options: Dorman and URO Parts are known for providing cost-effective solutions. Dorman's pans are generally considered decent quality, though some past products had issues with paint coatings. URO Parts has a mixed reputation; some parts are excellent, while others can be problematic. URO offers an innovative aluminum pan with a replaceable filter, which could reduce long-term service costs, but sticking with the proven OEM plastic design from a top-tier brand is often the safest bet.
Pro Tip: Don't Forget the Fluid and Sleeves
Replacing the filter kit is the perfect time to also replace the Mechatronic sealing sleeve (a common leak point) and the four smaller tube seals. Accessing these requires removing the pan, so it's wise to do it all at once. Always use a fluid that meets BMW's specifications, such as ZF LifeguardFluid 6 or an equivalent approved fluid.
Cost of Replacing Your Transmission Filter Kit
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Transmission Filter Kit (Pan, Filter, Gasket, Bolts) | $28 - $637 |
| Transmission Fluid (6-7 quarts) | $100 - $200 |
| Shop Labor | $250 - $450 |
| Total Estimated Cost (Parts + Labor) | $378 - $1287 |
Frequently Asked Questions
How do I know if my transmission filter is clogged?
Symptoms include delayed or harsh shifting, a "Transmission Fault" warning on the iDrive screen, RPM surging between shifts, and in severe cases, the transmission going into "limp mode." You may also hear whining noises from the transmission.
Is replacing the transmission filter kit a DIY job?
It is possible for an experienced DIY mechanic. The process involves safely lifting the vehicle, draining the fluid, removing and replacing the pan, and refilling the fluid to the correct level at a specific temperature (86-122°F or 30-50°C). This temperature-specific filling procedure is critical and requires a diagnostic scanner or infrared thermometer. For many, professional installation is recommended.
Do I need to replace the bolts when I install a new pan?
Yes. The bolts are typically single-use aluminum or steel bolts designed to be torqued to a specific, low value (around 10 Nm or 7 ft-lb). Reusing old bolts can lead to improper sealing and leaks. Most quality kits include new bolts.
Are there any recalls for the 2004-2010 525i transmission?
There was a recall in 2004 for the transmission control module (TCM) on some 8 and 12-cylinder models, but this does not directly apply to the filter kit or most 525i models. There are no widespread recalls for the transmission filter or pan itself. Always check for recalls specific to your vehicle's VIN.
Technical Specifications
OEM Part Numbers: 24152333907 24117571217 24152333903
Fits ZF GA6HP19Z 6-speed automatic transmissions. The kit is an assembly including a plastic oil pan, integrated non-serviceable filter, pan gasket, drain plug, and fill plug.
