Cadillac SRX A/C Expansion Valve (2004-2010): A Costly Repair Explained
If your SRX's A/C is blowing warm, the expansion valve could be the cause, but be prepared for a labor-intensive repair.
- The main cost of this repair is labor, not the part. Replacing the front expansion valve requires removing the entire dashboard.
- Get a professional diagnosis before replacement. Symptoms are similar to other A/C failures like leaks or a bad compressor.
- Because the job is so labor-intensive, use a high-quality brand like Denso to minimize the chance of a repeat failure.
- Always replace the receiver-drier at the same time as the expansion valve to protect the A/C system.
Is Your 2004-2010 Cadillac SRX A/C Not Blowing Cold?
When the air conditioning in your first-generation Cadillac SRX stops working, a failed A/C expansion valve is a possible suspect. This component is critical for regulating refrigerant flow, and when it fails, your comfort is the first thing to go. While the part itself is not expensive, its location deep within the dashboard makes this a significant repair job for the 2004-2009 SRX models.
The High Cost of Labor
Be aware: replacing the front A/C expansion valve on the 2004-2010 SRX requires the complete removal of the dashboard. This makes the job extremely labor-intensive. Shop labor costs can easily exceed $1,000, making it one of the most expensive repairs relative to the low cost of the part itself. Because of this, it is critical to get an accurate diagnosis before proceeding.
Symptoms of a Failing A/C Expansion Valve
A bad expansion valve can cause several noticeable issues with your A/C system. Look out for these common signs:
- Warm Air from Vents: The most common symptom is the A/C system blowing warm or room-temperature air, even when set to the coldest temperature. This happens when the valve is stuck closed, preventing refrigerant from reaching the evaporator.
- Inconsistent Cooling: You might notice the air temperature fluctuating between cool and warm. This can be caused by a valve that is sticking intermittently.
- Frost on Vents or A/C Lines: If the valve is stuck open, it can allow too much refrigerant into the evaporator, causing it to get too cold and freeze over. You might see frost coming from the vents or forming on A/C components under the hood.
- A/C Compressor Runs Constantly: A faulty valve can send incorrect signals through the system's pressure sensors, causing the A/C compressor to run all the time, even when it shouldn't.
Choosing the Right Aftermarket Part
Since the labor to replace this part is so high, you don't want to do the job twice. Choosing a quality replacement part is essential. Here’s a look at the available brands:
- Denso: Denso is a well-regarded OEM (Original Equipment Manufacturer) for many car brands. Their parts are known for high quality, reliability, and precise fitment. If you want the best chance of a long-lasting repair and peace of mind, Denso is a top-tier choice.
- Four Seasons: As one of the largest aftermarket A/C parts suppliers, Four Seasons offers a balance of quality and affordability. While some of their remanufactured components get mixed reviews, their new parts, like expansion valves, are generally considered a reliable and cost-effective option for repairs.
- Global Parts (GPD): GPD is another popular aftermarket brand that mechanics often use. They are known for good fitment and offering complete kits. They represent a solid, standard-grade replacement option.
Pro Tip: Replace Other Components at the Same Time
Whenever you replace an expansion valve, it is standard practice to also replace the A/C system's receiver/drier (or accumulator). The system must be opened to the atmosphere for this repair, and the receiver/drier's job is to remove moisture. A new one ensures your system is protected from contamination and moisture that can cause future failures. A TSB for later SRX models noted that degraded desiccant from the drier could cause A/C issues, highlighting its importance.
Cost to Replace the A/C Expansion Valve
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Expansion Valve | $20 - $65 |
| Shop Labor & A/C Service (Evacuate & Recharge) | $1,000 - $1,600+ |
| Total Professional Replacement | $1,020 - $1,665+ |
Note: Costs are estimates and will vary based on your location and the specific repair shop. The primary cost is labor due to dashboard removal.
Frequently Asked Questions
Can I replace the A/C expansion valve myself?
This is not recommended for a DIY mechanic unless you are very experienced. The job requires specialized tools to safely evacuate and recharge the A/C system, as well as the complete removal of the dashboard assembly. For most owners, this is a job for a professional shop.
Is there a recall for the A/C expansion valve on the 2004-2010 SRX?
No, there are no specific recalls from GM or NHTSA for the A/C expansion valve on this vehicle. Any failure is considered a result of age or wear.
My SRX has rear A/C. Does it have a second expansion valve?
Yes, models equipped with the optional rear climate control system have a second expansion valve for the rear evaporator unit. It's important to identify which valve has failed. The rear valve is typically easier to access than the front one.
Could something else be causing my A/C to blow warm?
Absolutely. Before committing to an expansion valve replacement, a technician should check for other common issues like a low refrigerant level (leaks), a faulty pressure switch, a failing A/C compressor, or a bad blend door actuator. A proper diagnosis using manifold gauges is essential.
Technical Specifications

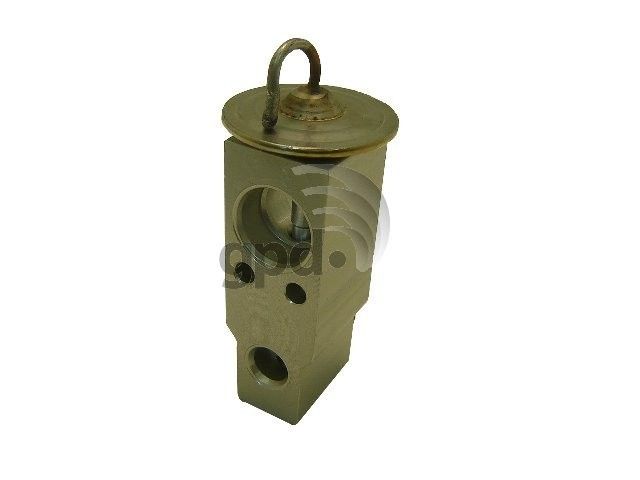

First-generation SRX models can have a front expansion valve and an optional rear expansion valve for vehicles with rear climate control. The front valve is a block-type valve located on the firewall, accessible only after removing the dashboard.
