Guide to Replacing the Wiper Motor on a 2004-2010 Dodge Ram 1500
If your Ram's wipers are slow, erratic, or have stopped working, this guide will help you understand your replacement options.
- Common failure symptoms include wipers only working on high, not parking correctly, or moving slowly.
- This is a common DIY repair that takes about an hour with basic tools like a socket set and trim tool.
- Recalls were issued for some 2008-2009 models and certain Mopar replacement motors due to premature failure.
- Before replacing the motor, check for debris in the linkage and ensure the linkage arms haven't popped off their pivots.
Is Your Ram's Wiper Motor Failing?
A failing wiper motor on a 2004-2010 Dodge Ram often gives clear warning signs before it quits completely. If you notice any of these issues, it's likely time for a replacement. Ignoring them can lead to a sudden failure, which is a serious safety hazard in rain or snow.
Common Failure Symptoms:
- Wipers Only Work on High Speed: If the low and intermittent settings stop working, but the high-speed setting still functions, it points to a problem with the motor's internal circuitry.
- Wipers Won't Park Correctly: When you turn the wipers off, they stop in the middle of the windshield instead of returning to the bottom. This is a classic sign of a bad park switch inside the motor.
- Slow or Stuttering Wipers: The arms move much slower than they used to, even on the fastest setting. This indicates a weak motor that is struggling to move the linkage.
- No Movement at All: You turn the switch and nothing happens. You might hear a humming or buzzing sound, which means the motor is getting power but is seized internally. If you hear nothing, you should check the fuse first before condemning the motor.
- Erratic Operation: The wipers turn on by themselves, won't turn off, or switch speeds randomly. 🎬 Watch this video to fix erratic wiper behavior and motor issues. This can point to a faulty motor module, though it can also be caused by the multifunction switch or the Totally Integrated Power Module (TIPM).
Recalls and Known Issues
Chrysler issued safety recall J10 for some 2008-2009 Dodge Ram trucks due to wiper motors that could fail unexpectedly. Another recall, J11, was for specific Mopar replacement motors (part number 55077098AJ) sold in 2008-2009 that were prone to water intrusion and failure. While these recalls may not apply to all trucks in this year range, they highlight known weaknesses in the wiper system. Water getting into the motor is a common cause of failure.
Choosing the Right Aftermarket Wiper Motor
For the 2004-2010 Ram 1500, the entire wiper module (motor and linkage assembly) is often sold as one unit. While some aftermarket brands allow you to buy just the motor, replacing the whole assembly is often easier and addresses potential wear in the linkage pivots.
Aftermarket Brand Tiers
- Good (Value-Oriented): Brands like Replacement offer a direct-fit, budget-friendly option. They are designed to match the original unit's specifications and get the job done, restoring function without the higher cost of premium brands.
- Better (Established Brands): Cardone and WAI Global are well-known aftermarket manufacturers. Cardone offers both new and remanufactured parts and is a common choice at many auto parts stores. WAI Global is a large supplier of electrical components with a reputation for producing reliable parts. Some forum users have had mixed experiences with remanufactured parts, so opting for a new unit is often a safer bet.
- OEM (Original Equipment): Mopar is the original parts supplier for Dodge. While it offers a guaranteed fit and quality, the cost is significantly higher than aftermarket alternatives. Given the known issues and recalls with some original motors, a quality aftermarket part provides comparable performance for a much lower price.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Motor | $73.52 - $94.15 |
| New OEM (Mopar) Motor | $280 - $376 |
| Shop Labor | $91 - $140 |
Pro Tip: Check the Linkage First
Before ordering a new motor, inspect the wiper linkage (the arms and pivots under the cowl). Debris like leaves and pine needles can clog the pivots, causing them to bind. A broken or disconnected linkage arm can also mimic the symptoms of a failed motor. Sometimes, simply cleaning and lubricating the linkage can restore proper function.
Frequently Asked Questions (FAQ)
Can I replace just the motor, or do I need the whole assembly?
You can often replace just the motor. The motor is typically bolted to the linkage assembly (also called the transmission or regulator). However, the plastic and rubber bushings in the linkage can wear out, causing sloppy wiper movement. Since you have to remove the entire assembly to get to the motor, replacing it as a complete unit is often a good idea for a longer-lasting repair.
Is replacing the wiper motor a difficult DIY job?
No, this is a very feasible DIY job for someone with basic tools. The process involves removing the wiper arms, the plastic cowl panel, and then unbolting the motor assembly. The main tools needed are a socket set (10mm), a Torx bit (T20 or T25), and a trim tool for removing plastic clips. The entire job can usually be done in about an hour.
🎬 See this step-by-step walkthrough for replacing the motor and linkage.Do I need to 'reset' or 'calibrate' the new motor?
Yes, in a way. Before you attach the wiper linkage to the new motor, it's a good practice to connect the motor's wiring harness and run the wipers for a cycle, then turn them off. This ensures the motor stops in its 'park' position. Then you can attach the linkage and be confident the wipers will park correctly at the bottom of the windshield.
🎬 Watch how to properly reset your motor to the home position.My wipers won't turn off. Is that always the motor?
Not always. While a faulty park switch inside the motor is a common cause, wipers that won't turn off can also be caused by a bad multifunction switch (the stalk on the steering column) or a problem with the Totally Integrated Power Module (TIPM), which controls many of the truck's electronics. However, if you are also experiencing other symptoms like incorrect parking or speed issues, the motor is the most likely culprit.
Helpful Videos

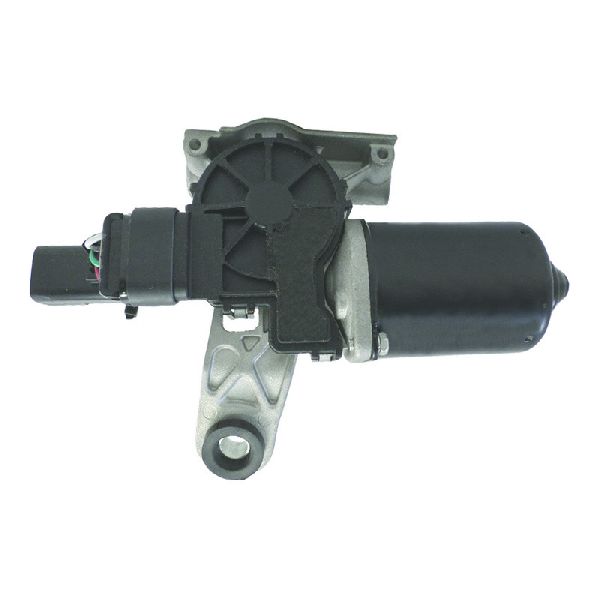

Technical Specifications
OEM Part Numbers: 55077098AJ
The wiper motor is part of a module that includes the motor and linkage assembly. It connects via a single electrical connector and is held in place by three 10mm bolts. The assembly is located under the plastic cowl cover at the base of the windshield.
