A Guide to Replacing Universal Joints on Your 2004-2010 Dodge Ram 3500
That clunking noise or vibration isn't going to fix itself—here's what you need to know about your Ram's U-joints.
- Listen for clunks, squeaks, and vibrations, as these are the primary signs of a failing U-joint.
- For maximum durability on a heavy-duty truck, choose a premium non-greasable U-joint from a brand like Dana Spicer.
- If you have a 4x4, confirm your axle type before ordering; the front axle shafts use a different U-joint than the driveshafts.
- Do not continue driving with severe symptoms, as a complete failure can cause the driveshaft to detach and lead to costly damage and a loss of control.
Is Your Ram 3500's U-Joint Failing?
A failing U-joint gives several warning signs. Ignoring them can lead to a driveshaft separating from the truck, causing major damage and leaving you stranded. Be aware of these common symptoms:
- Clunking Noise: A distinct "clunk" or "bang" when you shift from park into drive or reverse is a classic sign of a worn U-joint with too much play.
- Vibrations: You might feel a vibration throughout the truck that starts at a certain speed, like 30-40 mph, and gets worse as you accelerate. This happens when the worn joint throws the driveshaft out of balance.
- Squeaking or Chirping: A rhythmic squeak that sounds like a bird chirping, especially at low speeds, points to a dry, worn-out U-joint that has lost its lubrication.
- Clicking When Turning (4x4 Models): If you have a 4x4, a clicking or popping sound from the front wheels during tight turns often indicates a failing front axle U-joint.
Warning: Do Not Ignore a Failing U-Joint
A complete U-joint failure can cause the driveshaft to detach while you are driving. This can damage the transmission, exhaust, and fuel lines, and result in a total loss of power to the wheels, creating a serious safety hazard.
Choosing the Right Aftermarket U-Joint
The original factory U-joints on your Ram 3500 were made by American Axle & Manufacturing (AAM). While they do the job, many owners find that premium aftermarket parts offer better durability, especially for trucks that work hard. Aftermarket U-joints fall into a few quality tiers.
Tier 1: Premium & OEM Supplier Brands
These are the best choice for reliability and longevity, especially if you tow, haul, or go off-road.
- Dana Spicer: Widely considered the gold standard by mechanics and Ram owners. Dana is an original equipment (OE) manufacturer for many brands and their parts are known for excellent strength and durability. For the Ram 3500, their non-greasable "Spicer Life Series" joints are highly recommended because their seals are superior at keeping out water and dirt, which is a common cause of failure.

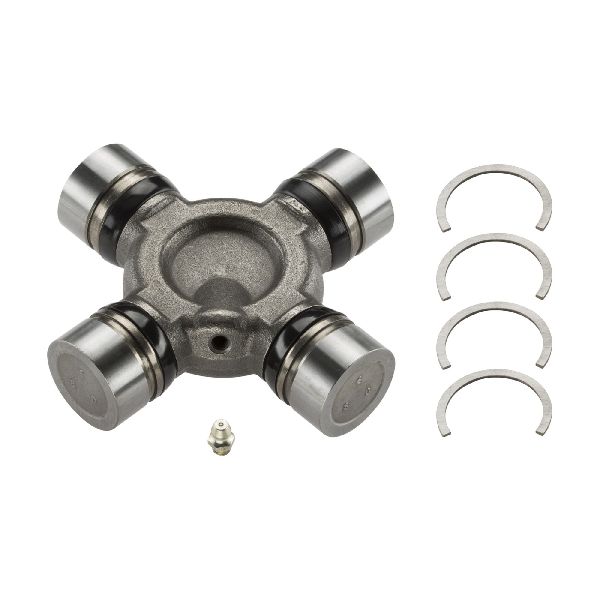

- Moog: Another top-tier brand known for its "Problem Solver" line. Moog U-joints often feature a grease fitting (zerk), which allows you to re-lubricate them as part of your regular maintenance. While some prefer this, others argue the seal design on non-greasable joints is more robust for heavy-duty applications.
Pro Tip: Greasable vs. Non-Greasable
For a heavy-duty truck like the Ram 3500, many experts prefer non-greasable U-joints. They are forged from solid steel, making them inherently stronger. Their seals are also designed to last the life of the part without maintenance, and they are less likely to let contaminants in. Greasable joints are strong, but their seals are designed to purge old grease, which can create a path for water and grit to enter if not maintained perfectly.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and price for daily driving and light-duty use.
- SKF: A well-respected bearing manufacturer that produces quality drivetrain parts.
- Crown Automotive: Specializes in Jeep and truck parts and offers reliable, OE-style replacements.
Tier 3: Economy Brands
These are the most budget-friendly options, suitable for getting a truck back on the road, but may not offer the same long-term durability under heavy loads.
- Dorman: Offers a wide range of replacement parts that meet basic requirements.

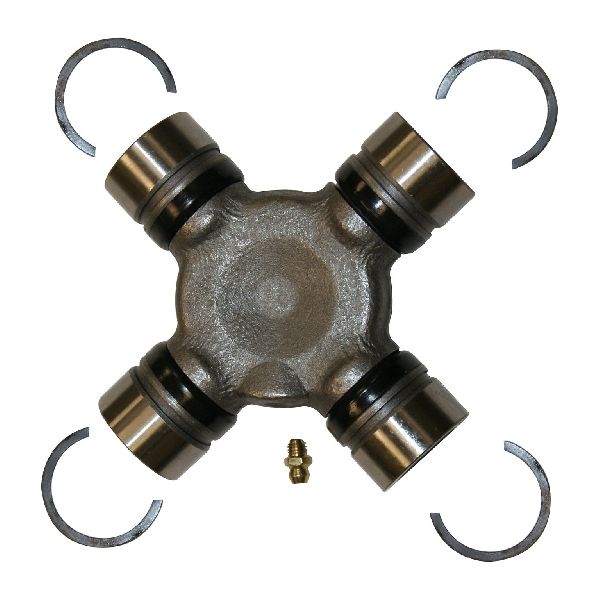

- GMB: A common budget-friendly brand that provides an economical solution.
How Much Does a U-Joint Replacement Cost?
The cost depends on the brand you choose and whether you do the work yourself or hire a professional. Front axle U-joints on 4x4 models typically cost more in labor due to the extra work needed to access them.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $20 - $238 |
| New OEM (AAM) U-Joint | $150 - $250+ (per joint) |
| Shop Labor | $200 - $450 (per joint) |
Frequently Asked Questions
How many U-joints does my 2004-2010 Ram 3500 have?
It depends on your truck's configuration. A 2-wheel drive model typically has two or three U-joints on its rear driveshaft. A 4-wheel drive model has those, plus one on the front driveshaft and one in each front axle shaft, for a total of five or more.
Can I replace a U-joint myself?
Yes, this is a DIY-feasible job if you have the right tools and mechanical experience. You will need heavy-duty jack stands, a good socket set, and a specialized tool like a U-joint press, ball joint press, or a large bench vise to press the old joint out and the new one in. It can be very difficult without a press.
🎬 See this step-by-step DIY guide for replacing your U-joints.What is the most common mistake when replacing a U-joint?
The most common mistakes are not marking the driveshaft's orientation before removal (which can cause vibrations) and accidentally dislodging the tiny needle bearings inside the new U-joint caps during installation. You also must clean the yoke bores thoroughly before pressing the new joint in.
Are there any recalls for Ram 3500 U-joints?
No, there are no specific recalls for universal joints on the 2004-2010 Dodge Ram 3500. Failures are typically related to normal wear and tear, which is accelerated by heavy use, large tires, or suspension lifts.
Which U-joint do I need for my 4x4 front axle?
The 2004-2010 Ram 3500 4x4 typically uses an AAM 9.25-inch front axle. 🎬 Watch: How to replace front axle U-joints on the AAM 9.25. A very common and highly recommended replacement part is the Spicer 5006813. However, it's always best to verify your specific configuration before ordering.
Helpful Videos
Technical Specifications
OEM Part Numbers: 05086665AC
Common front axle for 4x4 models is the American Axle (AAM) 9.25-inch, which uses a Spicer 1485-series style joint (e.g., Spicer P/N 5006813). Driveshaft U-joints can vary, so measuring cap diameter and width is recommended if you are unsure.
