Ford Expedition (2004-2010) Transmission Speed Sensor Guide
Solve harsh shifting and erratic speedometer issues by understanding the role of your Expedition's Output Shaft Speed Sensor.
- A bad Output Shaft Speed (OSS) sensor is a very common cause of harsh shifting and speedometer failure on the 2004-2010 Expedition.
- This is a simple, DIY-friendly repair; the sensor is on the driver's side of the transmission and held by one 8mm bolt.
- Always check for trouble codes like P0720 or P0722 before assuming a major transmission failure.
- Driving with a bad sensor is not recommended as it can cause further strain on the transmission.
Is Your Expedition Shifting Hard or Acting Strange?
A very common problem for 2004-2010 Ford Expedition owners is sudden harsh shifting, a flashing overdrive "O/D" light, and a speedometer that drops to zero while driving. These are classic symptoms of a failed transmission Output Shaft Speed (OSS) sensor. Because these symptoms seem like a major transmission failure, many owners worry about expensive repairs. However, the issue is often just this inexpensive and easy-to-replace sensor sending bad information to the truck's computer, which then puts the transmission into a protective "limp mode". Always check for speed sensor-related trouble codes 🎬 Watch: Diagnosing a P0720 output speed sensor circuit fault before assuming you have a major transmission problem.
Don't Confuse the OSS with ABS Sensors
Your Expedition has multiple speed sensors. The Output Shaft Speed (OSS) sensor is on the transmission and primarily controls shifting and the speedometer. The ABS (Wheel Speed) sensors are at each wheel and are used for the Anti-lock Braking System (ABS) and traction control. This guide focuses on the OSS sensor, which is the common cause of the shifting and speedometer issues described.
Choosing the Right Aftermarket Speed Sensor
When replacing the OSS sensor, you have a choice between the original part from the dealer (OEM) and aftermarket brands. For a simple electronic part like this, a quality aftermarket sensor is often a reliable and cost-effective choice.
- Motorcraft: This is Ford's own brand and the original equipment manufacturer (OEM). It's the benchmark for quality and fit, but usually the most expensive option.

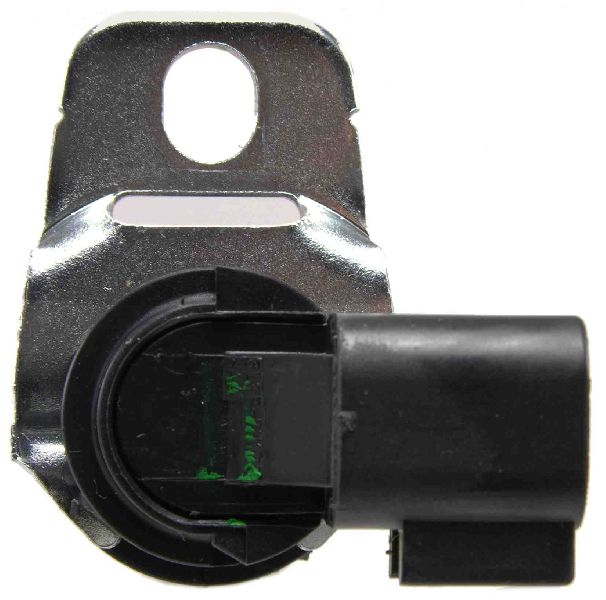

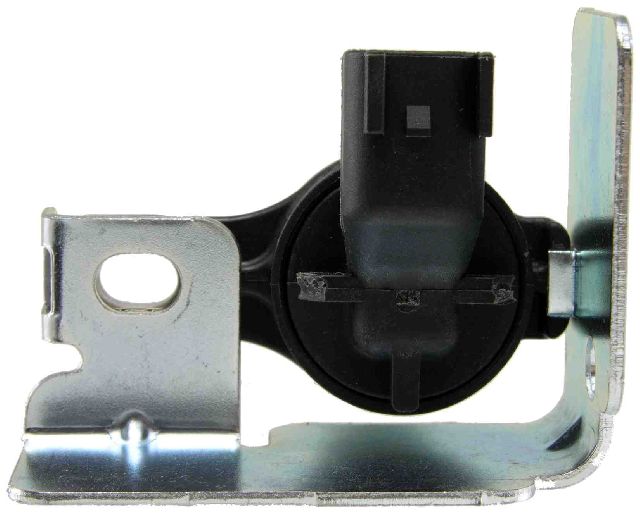

- NGK (NTK): NTK is the sensor division of NGK. They are a highly respected OEM supplier for many car brands and are known for producing high-quality sensors that meet or exceed original specifications. They are an excellent alternative to Motorcraft.
- Standard Ignition (SMP): A long-standing brand in the aftermarket, Standard Ignition produces a wide range of reliable engine management parts. Their sensors are a trusted choice for professional technicians.
- Walker Products: Walker is known for producing quality replacement parts that meet OE specifications for fit and function. They offer a dependable and affordable option for this repair.

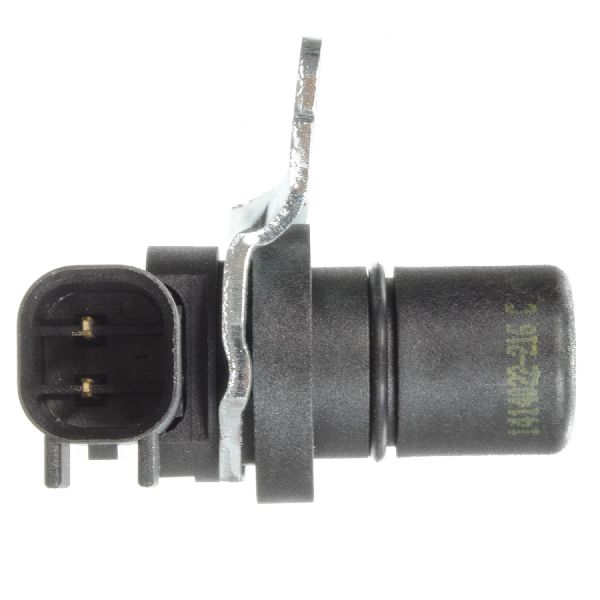

- Holstein: Holstein parts are designed to be direct-fit replacements, providing a functional and budget-friendly alternative.
Pro-Tip: Check the Connector First
Before replacing the sensor, always inspect the electrical connector and wiring harness. Corrosion or damage to the plug is a common issue and can cause the exact same symptoms as a failed sensor. Cleaning a corroded connector might fix your problem for free.
Cost of Replacing a Ford Expedition Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $55 - $90 |
| New Aftermarket | $20 - $98 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the speed sensor located on a 2004-2010 Expedition?
The Output Shaft Speed (OSS) sensor is located on the driver's side of the transmission housing, near the rear where the driveshaft connects. It is held in place by a single 8mm bolt, making it easy to access from under the vehicle.
🎬 Watch this step-by-step guide to changing the sensorCan I drive my Expedition with a bad speed sensor?
While you can technically drive the vehicle, it is not recommended. The transmission will be in a fail-safe or "limp" mode, causing very harsh, unpredictable shifts and poor engine performance. Driving this way puts unnecessary strain on your transmission and could lead to more serious damage.
What are the common trouble codes for a bad speed sensor?
The most common Diagnostic Trouble Codes (DTCs) are P0720 (Output Speed Sensor Circuit Malfunction) and P0722 (Output Speed Sensor No Signal). 🎬 See how these codes affect your Ford transmission You might also see secondary codes like P0500 (Vehicle Speed Sensor Malfunction) or codes for incorrect gear ratios (P0731, P0732) as a result of the sensor failure.
Is there a recall for the speed sensor on this Expedition?
No, there are no specific recalls from the NHTSA for the transmission speed sensor on the 2004-2010 Ford Expedition. While there have been some extended warranty programs for lead frames on later models which can cause similar issues, the 2004-2010 models are generally not covered for this specific sensor failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: DY-1215
This is the transmission Output Shaft Speed (OSS) sensor. It is a 2-prong sensor held by a single bolt on the transmission case.
