Ford Lobo Rack and Pinion Guide: 2004-2010 Models
Steering feel loose or hearing noises on your Ford Lobo? Here’s what you need to know before replacing your rack and pinion.
- Verify if your truck is 2WD or 4WD before ordering, as the parts are different.
- A clunking noise when turning the wheel while stopped is a strong indicator of a bad rack.
- Before replacing the rack for stiff steering, inspect the intermediate steering shaft U-joints first.
- A professional wheel alignment is mandatory after the replacement to prevent tire damage and ensure safety.
Is Your Ford Lobo's Steering Rack Failing?
The steering rack on the 2004-2010 Ford Lobo is a known wear item. Problems often start small but can become serious safety issues. If your steering feels sloppy, makes strange noises, or you see fluid leaks, your rack and pinion may be the cause. It's important to distinguish rack failure from other common issues, like worn inner tie rods, which can also cause steering play.
Common Failure Symptoms
- Power Steering Fluid Leaks: This is the most obvious sign. You might find reddish power steering fluid under the front of your truck. Leaks often start at the seals inside the rack and can get trapped in the rubber boots at each end before they drip onto the ground.
- Sloppy or Loose Steering: Your truck may feel like it wanders on the highway, needing constant small steering corrections. A significant "dead spot" or play in the steering wheel before the wheels respond is a classic symptom.
- Clunking or Knocking Noises: A distinct clunk or knock when you turn the steering wheel, especially when the truck is not moving, points to a problem inside the rack.
- Stiff or Difficult Steering: If turning the wheel becomes hard, especially at low speeds, it could mean the internal components of the rack are failing or the system isn't getting enough hydraulic pressure. However, before blaming the rack, check the intermediate steering shaft U-joints, as they are a very common cause of stiffness.
Important: 2WD vs. 4WD
The rack and pinion assemblies for 2-wheel drive and 4-wheel drive models of the Ford Lobo are different parts. They are not interchangeable. Always confirm your truck's drivetrain before ordering a replacement.
Choosing the Right Aftermarket Rack and Pinion
When your OEM rack fails, you have a choice between remanufactured and new aftermarket parts. For the 2004-2010 Ford Lobo, both are widely available.

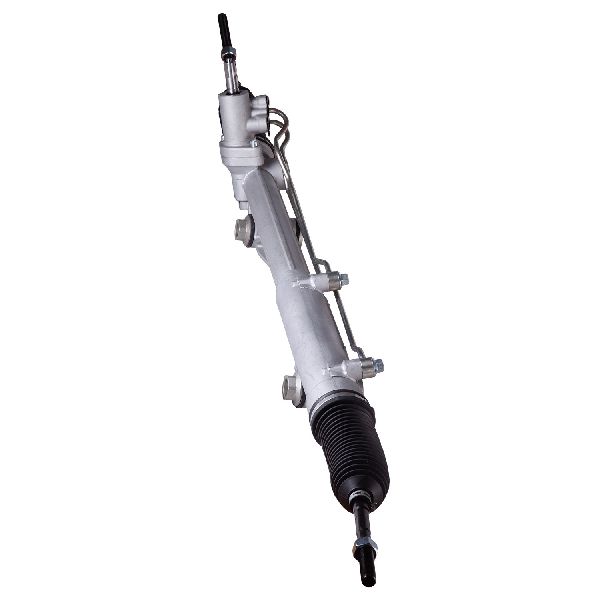

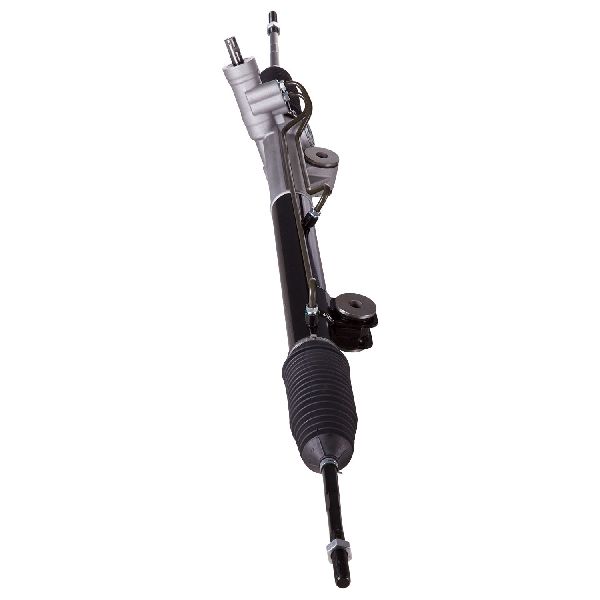

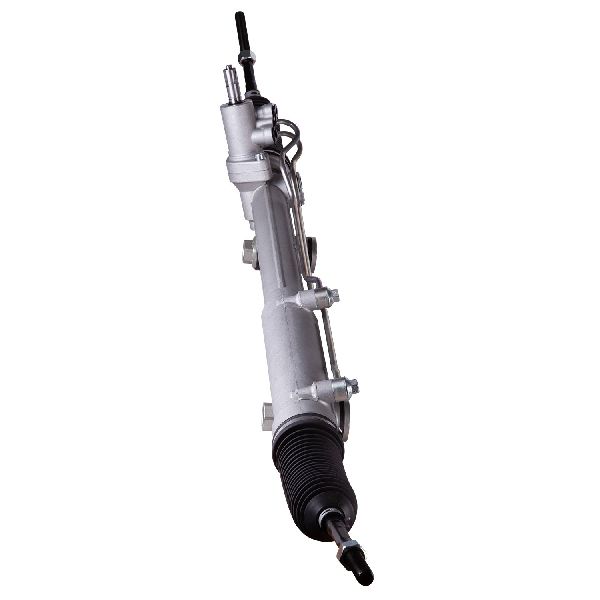

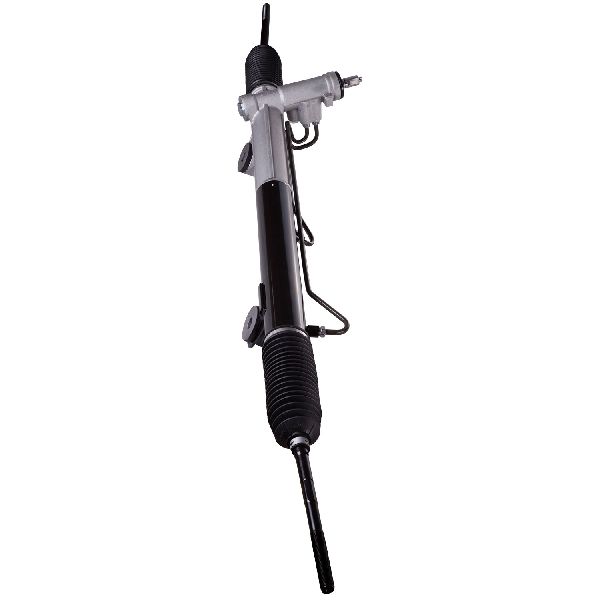

- New Aftermarket Racks: These are built from all-new components. Brands like PWR offer new units. The main advantage is that there are no previously worn parts, which can lead to better long-term reliability.

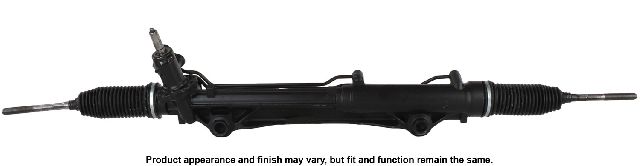

- Remanufactured Racks: Brands like Cardone offer remanufactured OEM units. In this process, an original rack is taken apart, cleaned, inspected, and reassembled with new seals, boots, and any other parts that don't meet specifications. Quality can vary significantly between remanufacturers. Some owners report success with remanufactured parts, while others experience premature failures like leaks or internal clunking.
Pro Tip: When replacing your rack and pinion, it's a good practice to also replace the power steering pressure and return lines and flush the system with fresh, correct-spec fluid. Old hoses can have blockages or fail when disturbed during the installation, and old fluid can damage the new rack.
Known Issues, Recalls, and TSBs
While there are no specific recalls for the rack and pinion assembly itself on the 2004-2010 Ford F-150 (the North American equivalent of the Lobo), there was a major recall for the 2004-2006 models concerning an airbag wire in the steering column that could short circuit. This does not directly affect the steering rack's function but is important safety information for owners working in this area of the vehicle.
Cost to Replace a Ford Lobo Rack and Pinion
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket (e.g., PWR) | $231.44 - $1026.47 |
| Remanufactured (e.g., Cardone) | $250 - $450 |
| New OEM (Motorcraft) | $550 - $950+ |
| Shop Labor | $317 - $465 |
| Alignment (Required) | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need a wheel alignment after replacing the rack?
Yes, absolutely. A professional front-end alignment is required after replacing the rack and pinion. Skipping this step will cause rapid and uneven tire wear and can make the truck handle unsafely.
Can I replace the rack and pinion myself?
This is a difficult job for a DIY mechanic. It requires lifting the front of the truck, draining fluids, and accessing tight spaces. Special tools may be needed to disconnect lines and press out tie rod ends. If you don't have significant experience, it's best left to a professional. The estimated time for a shop to do this is between 3 to 5 hours.
Should I buy a new or remanufactured rack?
A new aftermarket rack generally offers more peace of mind since all components are new. However, a quality remanufactured unit from a reputable brand can be a good value. Given the mixed reviews on some remanufactured parts, choosing a brand with a strong warranty is a smart move.
My steering is just stiff. Is it always the rack?
Not always. On these trucks, the U-joints on the intermediate steering shaft (the shaft connecting the steering column to the rack) can corrode and bind, causing stiff steering. It's crucial to inspect this part before condemning the entire rack, as it is a much cheaper and easier repair.
Technical Specifications
OEM Part Numbers: 8L3Z3504B 7L3Z3504B 8L3Z3504D 7L3Z3504D 4L3Z3504BB 4L3Z3504DB 6L3Z3504DA
System Type: Hydraulic Power Assist. Drivetrain specific parts for 2WD and 4WD models.
