A Guide to the 2004-2010 Mazda 3 Transmission Filter Kit
Keep your Mazda 3 shifting smoothly by learning the symptoms of a bad transmission filter and how to choose the right replacement.
- One filter kit fits both the 4-speed and 5-speed automatic transmissions for this generation.
- Symptoms like harsh shifting can also be caused by a faulty Transmission Control Module (TCM), a separate known issue.
- Always use the correct transmission fluid that meets Mazda's M-V (Type M5) specification to avoid damage.
- Aftermarket brands like ATP, Wix, and Beck Arnley are reliable alternatives to the more expensive OEM part.
Is Your Mazda 3 Shifting Strangely? It Could Be the Transmission Filter.
If you've noticed your 2004-2010 Mazda 3 isn't shifting as smoothly as it used to, a clogged transmission filter might be the culprit. This part is vital for keeping your automatic transmission fluid (ATF) clean. When the filter gets clogged with debris, it restricts fluid flow, leading to noticeable problems.
Symptoms of a Failing Transmission Filter
- Delayed or Harsh Shifting: The car may hesitate or jerk when shifting between gears.
- Slipping Gears: The transmission might unexpectedly slip out of gear while driving.
- Unusual Noises: You may hear whining, clunking, or grinding sounds coming from the transmission area.
- Transmission Overheating: A lack of fluid flow can cause the transmission to run hot, potentially triggering the 'AT' warning light on your dashboard.
- Contaminated Fluid: If you check the transmission fluid and it looks dark brown or black, or has a burnt smell, it's a strong sign the filter is saturated and not doing its job.
Choosing the Right Aftermarket Transmission Filter Kit
One of the most important things to know when shopping for this part is that both the 4-speed and 5-speed automatic transmissions used in the 2004-2010 Mazda 3 use the same filter and gasket. This simplifies your search. While an OEM filter is available, many aftermarket brands offer excellent quality for a lower price.
Aftermarket Brand Tiers

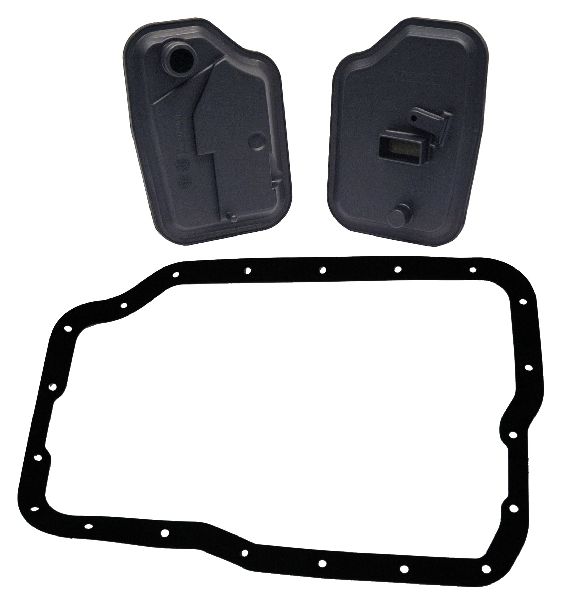

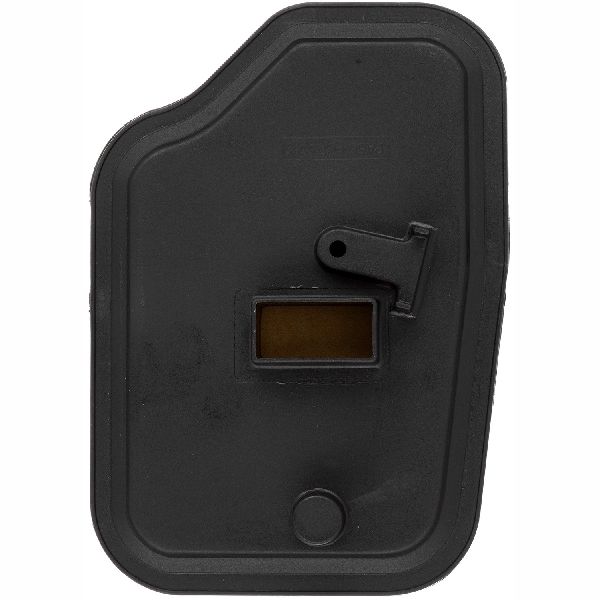

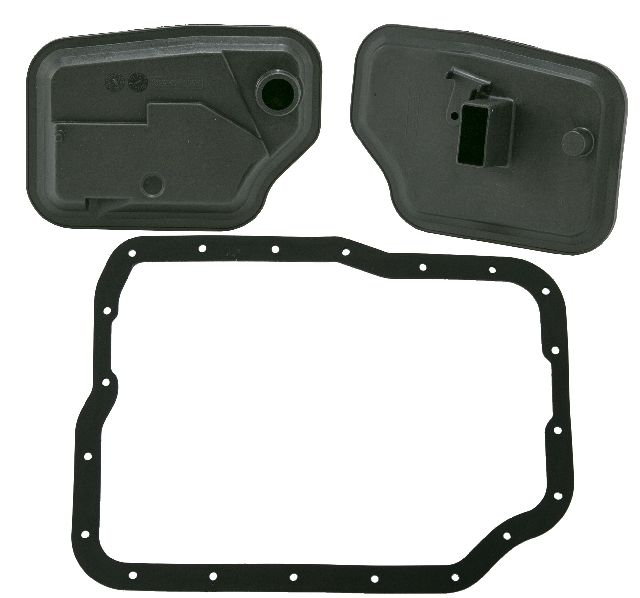

- Premium Aftermarket (Wix, Beck Arnley, ATP): These brands are well-regarded in the industry. Wix is known for its consistent quality. Beck Arnley focuses on providing parts that match OEM specifications. ATP is a transmission parts specialist, and their kits are often praised for including user-friendly "third-hand" gaskets that hold bolts in place, making DIY installation easier.

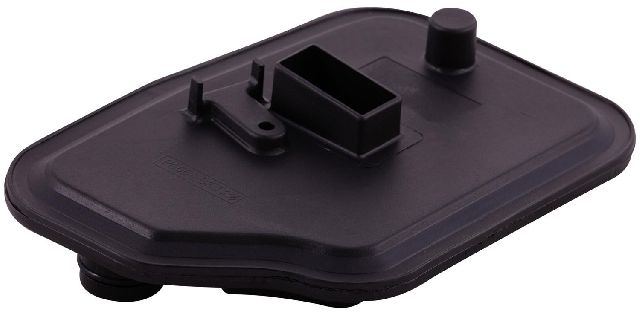

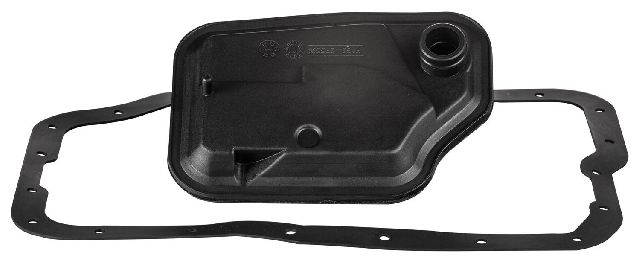

- Standard Aftermarket (Vaico, Premium Guard): These brands offer a balance of value and quality. Vaico is a German brand that positions itself as an OE alternative, and is a solid choice. Premium Guard is a budget-friendly option that is adequate for regular maintenance intervals.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Kit (Filter & Gasket) | $22 - $60 |
| New OEM Filter (Part Only) | $85 - $120 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $172 - $360 |
Frequently Asked Questions
Do I need to replace the filter every time I change the transmission fluid?
Yes. Since replacing the filter requires removing the transmission pan and draining the fluid, it is the best practice to replace both at the same time. A simple fluid drain only removes about a third of the old fluid, while a pan-drop service allows for a filter change and a more thorough service.
🎬 See how to properly drain, change the filter, and refill.What type of transmission fluid should I use?
This is critical. The 2004-2010 Mazda 3 requires a fluid that meets Mazda's M-V (Type M5) specification. Using a generic or incorrect type of ATF can cause shifting problems or even damage the transmission. Always double-check the bottle to ensure it lists compatibility with Mazda M-V.
Can I replace the transmission filter myself?
Yes, this is a manageable DIY job for those with some mechanical experience. 🎬 Follow this DIY guide for changing your '04 transmission filter. It involves safely raising the vehicle, draining the fluid, removing about 20 bolts, cleaning the pan and gasket surfaces, and reassembling everything. It can be messy, but it is straightforward.
Should I use the rubber gasket in the kit or RTV sealant?
The factory seal is a liquid RTV sealant. Many aftermarket kits come with a pre-formed rubber or cork gasket. While some DIYers prefer to use a high-quality RTV sealant like Permatex Ultra Grey for a leak-proof seal, the gaskets provided by reputable brands are generally reliable if installed correctly on a clean surface. ATP's "third hand" gaskets are particularly helpful for holding the pan in place during installation.
🎬 Watch a full walkthrough of the pan and filter replacement.Are there any recalls for the Mazda 3 transmission?
No, there have been no official NHTSA safety recalls for the transmission or transmission filter on the 2004-2010 Mazda 3.
Helpful Videos
Technical Specifications
OEM Part Numbers: FNC1-21-500 FNC1-21-500A 6E5Z-7B155-A 8E5Z-7B155-A
Fits both FN4A-EL (4-speed) and FS5A-EL (5-speed) automatic transmissions. Kit should include one filter/strainer and one transmission pan gasket or recommend RTV sealant.
