Engine Coolant Thermostat Guide for the 2004-2010 Mazda B2300
Is your truck's temperature gauge acting strange or is the heater not working? Your thermostat might be the problem.
- The 2004-2010 Mazda B2300 uses the same thermostat as the Ford Ranger 2.3L.
- It is strongly recommended to replace the entire thermostat and housing assembly, as the original plastic can crack.
- If your old thermostat failed while stuck open (engine runs cool, no heat), flush the cooling system to remove debris that could damage the new part.
- Always use a thermostat with the factory temperature rating (around 192-194°F) for proper engine performance.
Is My Thermostat Failing?
A thermostat can fail in two main ways: stuck open or stuck closed. Each has its own set of symptoms. Paying attention to your temperature gauge is the best way to spot a problem early.
Symptoms of a Bad Thermostat
| Symptom | Description | Failure Mode |
|---|---|---|
| Engine Overheating | The temperature gauge climbs into the red. You might see coolant leaking from the overflow or hear gurgling sounds as the coolant boils. This is a serious issue that can cause major engine damage. | Stuck Closed |
| Engine Runs Too Cool / No Heat | The temperature gauge never reaches the normal middle range. Your truck's heater blows cool or lukewarm air, and you might notice worse gas mileage. This can also trigger a Check Engine Light with code P0128. | Stuck Open |
| Erratic Temperature Gauge | The temperature gauge needle swings back and forth unpredictably, from cool to hot. This indicates the thermostat is not opening and closing smoothly. | Sticking / Erratic |
A Note on the 2.3L Engine and TSB 99-16-2
Though written for an earlier model, a Ford Technical Service Bulletin (TSB) highlights a known issue with the 2.3L engine family. Sand left over from the engine block casting process can break loose and jam the thermostat, forcing it to stay open. If you have 'stuck open' symptoms, it is highly recommended to flush the entire cooling system when you replace the thermostat to prevent the new part from failing for the same reason.
Choosing the Right Aftermarket Thermostat

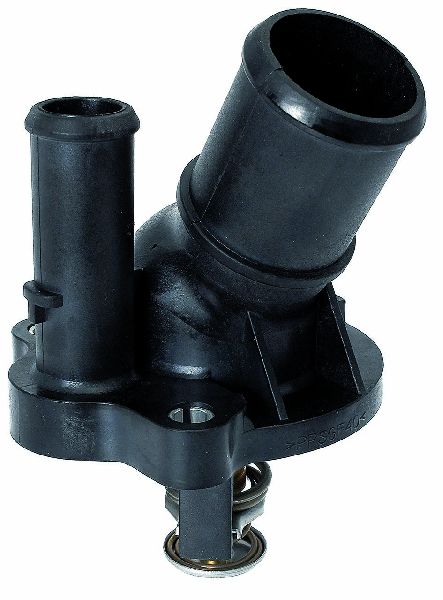

Your 2004-2010 Mazda B2300 is a twin to the Ford Ranger, and they share the same 2.3L Duratec engine and thermostat assembly. For this engine, the thermostat is part of a plastic housing. Because this plastic can become brittle and crack over time, it is almost always better to replace the entire thermostat and housing assembly, not just the thermostat itself.
Aftermarket Brand Quality
When choosing a new part, quality matters. Here’s an honest look at the brands available:
- OEM-Equivalent (Motorcraft/Mazda): The original parts are widely considered the most reliable option. If you want to fix it once and not worry, using an OEM part is a safe bet.
- Premium Aftermarket (Gates, Calorstat): Gates is a well-known brand that is generally reliable, though some users report they can run slightly cooler than OEM. Calorstat is a respected European brand known for good quality and value.
- Standard Aftermarket (Facet): Facet is an Italian brand that offers a solid, budget-friendly alternative. It's considered a reliable mid-tier choice.
- Performance (Mishimoto): Mishimoto specializes in high-performance parts, including lower-temperature thermostats. These are designed for modified or racing engines and should not be used on a stock B2300, as they will cause it to run too cool.
Pro Tip: Stick to the Stock Temperature
Always use a thermostat with the OEM-specified temperature rating (usually 192°F or 194°F). Using a lower temperature thermostat will not solve an overheating problem and will hurt your truck's performance and fuel economy.
Cost of Replacing a Mazda B2300 Thermostat
The cost can vary depending on whether you do the job yourself or take it to a shop. The part itself is often sold as a complete housing assembly.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Thermostat Assembly | $26.49 - $267.72 |
| New OEM (Mazda/Motorcraft) Thermostat Assembly | $210 - $230 |
| Shop Labor | $98 - $143 |
| Total Professional Replacement | $327 - $373 |
Frequently Asked Questions (FAQ)
What does the P0128 trouble code mean?
P0128 means the engine's coolant temperature is below the thermostat's regulating temperature. In simple terms, the engine is not warming up as quickly as the computer expects, which almost always points to a thermostat that is stuck open.
Should I buy a "fail-safe" thermostat?
Fail-safe thermostats are designed to lock in the open position if they fail, preventing a catastrophic overheating situation. While the idea is good, they can sometimes fail prematurely, leaving you with a stuck-open thermostat—the very problem you might be trying to fix. Sticking with a quality OEM or premium aftermarket part is often a more reliable choice.
Can I just replace the thermostat and not the whole plastic housing?
While some brands may sell the thermostat separately, it is highly recommended to replace the entire housing assembly. The original plastic housing on your B2300 is likely old and brittle. Trying to separate it can cause it to crack, leading to coolant leaks. Replacing the complete assembly is safer and ensures a proper seal.
Is it hard to replace the thermostat on a Mazda B2300?
No, it is a relatively easy job for a DIY mechanic. It is located on the driver's side of the engine and is held on by three bolts. The main steps are draining the coolant, removing the hoses, swapping the part, and then refilling and bleeding the cooling system.
Technical Specifications
OEM Part Numbers: 4L5Z8575B 1F2015172 YS4Z-8575-AA
The thermostat for the 2004-2010 Mazda B2300 is typically sold as a complete assembly with the plastic housing. The correct OEM-specified opening temperature is approximately 192°F to 194°F (89°C to 90°C).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
