A Guide to the 2004-2010 Suzuki Swift+ Alternator
Keep your Swift+ charging system working properly by understanding common failures and choosing the right replacement part.
- The simultaneous illumination of the battery and brake warning lights is a key indicator of alternator failure on this vehicle.
- The 2004-2010 Suzuki Swift+ is a rebadged Chevrolet Aveo, so parts and repair guides for the Aveo are interchangeable.
- Always test your battery when replacing the alternator; a bad battery can quickly ruin a new alternator.
- While a DIY replacement is possible, be aware that a support bracket can sometimes obstruct the lower alternator bolt, complicating the job.
Is Your Suzuki Swift+ Alternator Failing?
Alternator failure is a common issue for the Suzuki Swift+ and its sibling, the Chevrolet Aveo. When this part begins to fail, it provides several clear warning signs. Ignoring them can leave you stranded.
🎬 Watch: 6 common symptoms of a failing alternatorKey Failure Symptom: A unique and very common sign of alternator failure on the Swift+/Aveo is the battery warning light and the 'BRAKE' warning light turning on at the same time. If you see this combination on your dashboard, the alternator is the most likely cause.
Choosing the Right Aftermarket Alternator
For a vehicle like the 2004-2010 Suzuki Swift+, a new aftermarket alternator offers a great balance of price and performance. However, quality can vary. Some owners report having to replace alternators multiple times, which can be due to low-quality parts or not fixing a bad battery that damages the new alternator. Here is a general breakdown of the available brands based on reviews:
- Tier 1 (Good Quality & Reputation): Brands like Remy and WAI Global are generally considered solid choices. Remy is a long-established brand, though some recent reviews are mixed regarding long-term durability. WAI Global is often praised for its value, and many units come with a test result sheet, though some users have reported durability issues after a few years.
- Tier 2 (Budget-Focused): Brands like BBB Industries and MPA (Motorcar Parts of America) are major suppliers, often for store-brand parts. They can be a cost-effective option, but the quality can be inconsistent compared to more premium brands. Failures of budget remanufactured parts are a common complaint among car owners.
Pro Tip: The Suzuki Swift+ is a rebadged Chevrolet Aveo. Searching for parts and repair guides for a 2004-2010 Chevrolet Aveo will give you many more options and information, as they are mechanically identical.

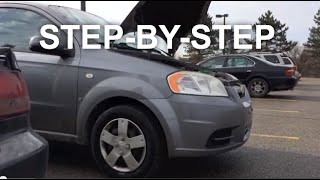

🎬 See this step-by-step Aveo alternator replacement guideTypical Replacement Costs
The cost can vary based on your location and the specific part you choose. Labor costs at a repair shop are typically estimated for 1-2 hours of work.
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket | $160 - $345 |
| Remanufactured Aftermarket | $75 - $200 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions
Is replacing the Swift+ alternator a DIY job?
For a moderately experienced DIYer, yes. The job is rated as intermediate and takes about 1-2 hours. It requires basic hand tools, but access can be tight. You will need to remove the air filter box and release the serpentine belt tensioner, which is often accessed from the passenger-side wheel well. Some owners have noted that a support bracket can block the lower alternator bolt, making removal tricky.

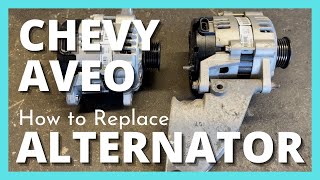

🎬 Watch: How to remove and replace the Swift alternatorAre there any recalls for the Swift+ alternator?
No, there are no official NHTSA recalls or Technical Service Bulletins (TSBs) specifically for alternator failure on the 2004-2010 Suzuki Swift+ or the Chevrolet Aveo, even though it is a commonly reported problem.
Should I replace the battery at the same time?
It is highly recommended to have your battery tested when you replace the alternator. A weak or failing battery can put extra strain on a new alternator and cause it to fail prematurely. If the battery is over four years old, replacing it is a smart preventative measure.
What's the difference between a new and a remanufactured alternator?
A new alternator is made with all-new components. A remanufactured alternator has been disassembled, cleaned, and had its worn-out components (like bearings and brushes) replaced with new ones before being tested. While remanufactured units are cheaper, their quality can be inconsistent, and some owners report higher failure rates.

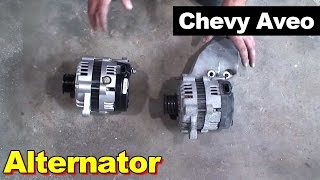

Helpful Videos
Technical Specifications
OEM Part Numbers: 96540541 96954112 96499043 96838439
The alternator for the 1.6L engine is typically rated at 85 or 90 amps. The electrical connector is a key detail; most models use a 4-pin square plug, but you should verify this on your specific vehicle before ordering.
