Engine Oil Pan Guide for the 2004-2011 Chevrolet Express 2500
Keep your workhorse van running strong by addressing a failing engine oil pan.
- The most common failure is rust on the original steel pan or leaks from the gasket.
- You must confirm your engine size (4.8L, 5.3L, 6.0L, etc.) before ordering, as pans are not interchangeable.
- Replacement is a labor-intensive job that may require lifting the engine for clearance, making it difficult for most DIYers.
- While the pan is off, it is highly recommended to also replace the oil pan gasket and the oil pickup tube O-ring.
Is Your Express Van Leaking Oil?
A puddle of dark brown or black oil under your 2004-2011 Chevrolet Express 2500 is a common sign of a problem. While several gaskets can cause leaks, the oil pan itself is a frequent culprit, especially on hardworking vans. The original steel pans are prone to rusting through, particularly in areas where salt is used on winter roads. Aluminum pans can crack from impacts or have their drain plug threads stripped over time. Ignoring a leak can lead to low oil levels, which may cause serious engine damage.
Symptoms of a Failing Oil Pan
Besides the obvious oil puddle, there are other signs to watch for. You might see the oil pressure warning light on your dashboard, or notice smoke coming from the engine bay if oil is dripping onto the hot exhaust. A visual inspection underneath the van might reveal a rusted, dented, or cracked oil pan.
Check Your Engine!
The Chevrolet Express 2500 was available with several different engines during this period, including the 4.8L, 5.3L, and 6.0L V8s. The oil pan is specific to the engine. Always verify your van's engine size before ordering a new part to ensure a proper fit.
Choosing the Right Aftermarket Oil Pan
When replacing the oil pan, you have options beyond the expensive OEM part. Aftermarket brands offer quality replacements that often meet or exceed original specifications.
- Dorman: A well-known brand, Dorman often provides durable replacements. Their pans are typically powder-coated for corrosion resistance 🎬 See why Dorman is a top choice for durable oil pans. and are designed for an exact fit. Some users note that the drain plugs can be a different size than the original.

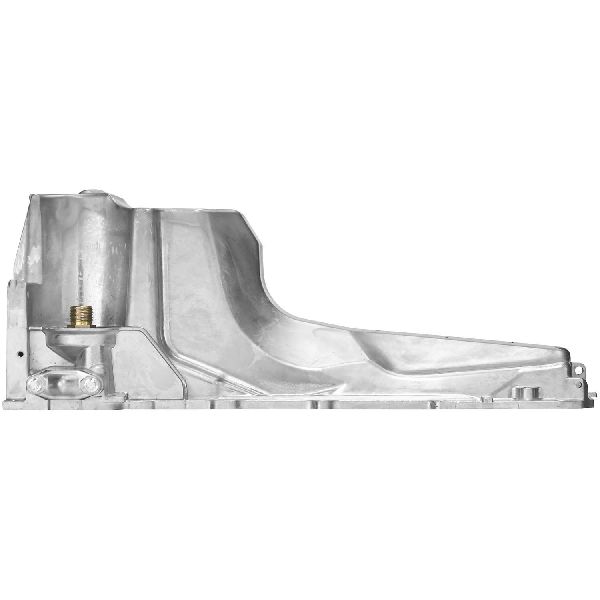

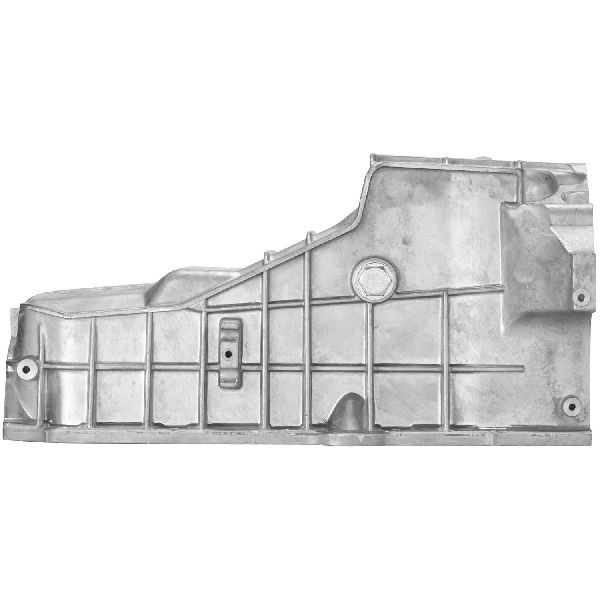

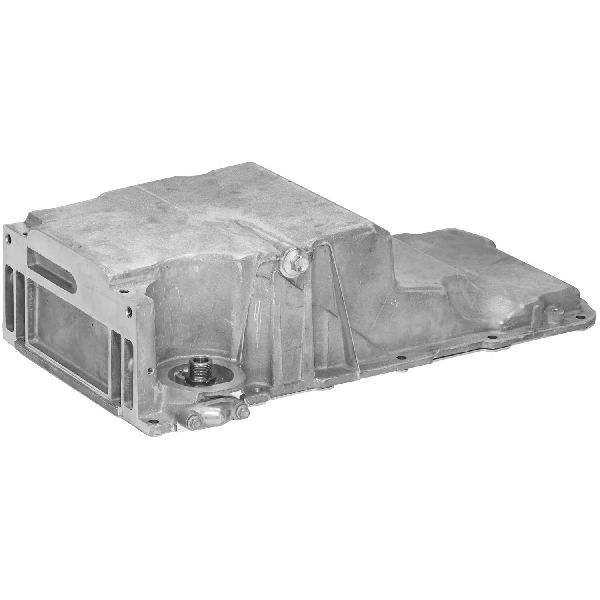

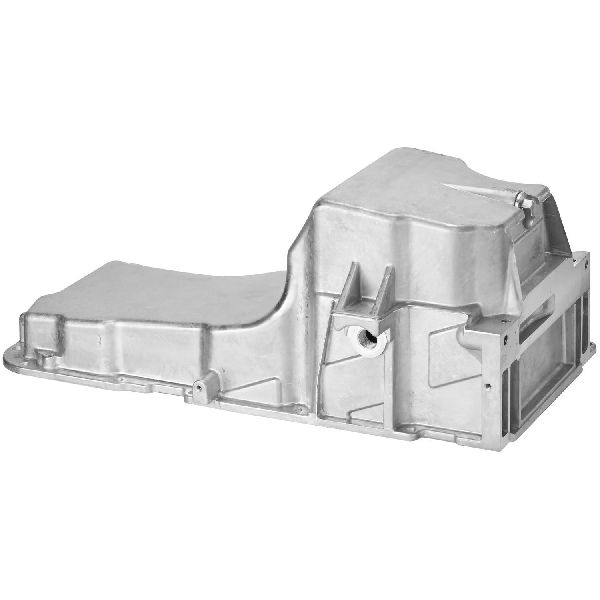

- Spectra Premium: Spectra is another reputable brand known for quality. Their oil pans are engineered based on OE knowledge and are often salt spray tested for durability. They are a popular choice and are often compared directly to Dorman.
- Pioneer Automotive Industries: Pioneer offers high-quality OE replacement pans made from heavy-gauge materials. They are powder-coated for durability and include a new drain plug. Some users have found their pans to be even thicker than the original.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $75 - $486 |
| New OEM Part | ~$479 - $671 |
| Shop Labor | $304 - $446 |
| Total Professional Job | $783 - $925+ |
Pro Tip: It's More Than Just the Pan
Replacing the oil pan is a great time to also replace the oil pan gasket for a leak-free seal. Many technicians also recommend replacing the oil pickup tube O-ring while the pan is off, as a failed O-ring can cause low oil pressure. Also, remember to get a new oil filter and fresh engine oil for the job.
Frequently Asked Questions (FAQ)
Is replacing the oil pan a difficult job?
Yes, this can be a challenging job for a DIY mechanic. On the Express van, replacement often requires disconnecting cooling lines, wiring harnesses, and sometimes even lifting the engine slightly 🎬 Watch how to remove the oil pan without lifting the motor. to get enough clearance to remove the pan. It is rated as a moderately difficult job.
Are there any recalls for the oil pan on my Express 2500?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls related to the engine oil pan for the 2004-2011 Chevrolet Express 2500.
What is the torque spec for the oil pan bolts?
The torque specification for the main oil pan bolts is typically 18 ft-lbs. It is important to tighten the bolts in a crisscross pattern to ensure the gasket seals evenly.
🎬 Follow this step-by-step guide to replace your oil pan gasket.Do I need to use RTV sealant with the new gasket?
Yes, a small dab of RTV sealant is typically required at the four corners where the engine block and front/rear covers meet. This is because there are small splits in the engine block that the gasket alone may not seal perfectly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12619776 264-375 264-135 125587620
Material: Steel or Aluminum. Gasket Type: One-piece molded rubber. Common Engine Fitments: 4.8L V8, 5.3L V8, 6.0L V8. Drain Plug Torque: 18 ft-lbs.
