Ford E-350 Super Duty (2004-2011) Engine Oil Pressure Switch: A Complete Guide
An erratic or illuminated oil pressure light on your Ford E-350 Super Duty often points to this simple but critical sensor.
- Always check your oil level first when the oil light comes on; never assume it's just a bad switch.
- A faulty switch is a common, inexpensive fix, but ignoring a real oil pressure problem can destroy your engine.
- The switch location varies by engine (gas vs. diesel), so confirm your engine type before buying or searching for the part.
- Choosing a quality aftermarket brand like Delphi or Rostra is a reliable, cost-effective alternative to OEM.
Is Your Oil Pressure Light On? Don't Panic, But Don't Ignore It.
The oil pressure warning light is one of the most serious warnings a driver can see. While a faulty oil pressure switch can cause a false alarm, you should never assume the warning isn't real. The first and most important step is to safely pull over, turn off the engine, and check your oil level. If the oil level is correct, the problem is likely electrical (the switch or wiring) or mechanical (an internal engine issue). A bad switch is a common and inexpensive fix.
Warning: Never Drive with a Confirmed Low Oil Pressure Warning

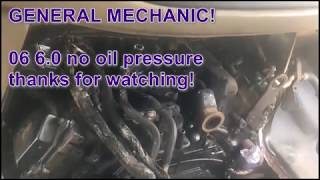

If your oil light is on and the engine is making ticking, clattering, or knocking noises, shut it off immediately. Driving with genuine low oil pressure can destroy 🎬 Watch: Real-world example of a 6.0 Ford with no oil pressure. the engine in minutes. Towing the vehicle is the only safe option.
Common Symptoms of a Failing Oil Pressure Switch
- Flickering or Illuminated Oil Pressure Light: The most common symptom is the oil pressure warning light on the dash coming on, either steadily or intermittently.
- Incorrect Gauge Reading: The oil pressure gauge may drop to zero or fluctuate wildly, even when you know the oil level is fine.
- Check Engine Light: In some cases, a failing switch can trigger the Check Engine Light. Associated trouble codes often include P0520, P0521, P0522, P0523, and P0524.
- Oil Leak: The switch itself can fail, developing a crack in its plastic housing or a bad seal, leading to an oil leak directly from the sensor.
Choosing the Right Aftermarket Part: Brand Quality Tiers
For a part like an oil pressure switch, you don't necessarily need to buy an expensive OEM part from a dealer. A quality aftermarket part can offer the same reliability for less money. However, quality varies significantly between brands.
Tier 1: OEM & Premium Aftermarket (Recommended)
- Delphi: Delphi is a well-respected manufacturer that supplies original equipment parts to many carmakers. They are known for high-quality electronics and are an excellent choice for reliability.
- Rostra Powertrain: Rostra specializes in powertrain electronics and is an ISO-certified manufacturer with a reputation for quality parts that meet or exceed OEM standards.
- Standard Ignition (SMP): A very popular aftermarket brand. While some users have great success, others report issues with their lower-cost lines. If choosing SMP, consider their higher-grade products if available.
Tier 2: Economy Brands
- True Tech, Global Parts: These brands represent the budget-friendly end of the market. While they provide a low-cost solution, their long-term durability and sensor accuracy may not match the standards of premium brands. For a sensor this critical, spending a few extra dollars for a Tier 1 brand is a wise investment.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $45 - $100 |
| New Aftermarket | $11 - $187 |
| Shop Labor | $75 - $150 |
Pro Tip: Check Your Engine Type
The 2004-2011 E-350 Super Duty came with several engines, including the 5.4L V8, 6.8L V10, and 6.0L Power Stroke diesel. The exact part number and location of the switch can vary. For the 6.0L diesel, the switch is often found in the engine valley. 🎬 See this walkthrough for replacing the sensor on a 6.0L Powerstroke. For gas engines, it is typically screwed into the engine block near the oil filter housing. Always verify the part for your specific engine before purchasing.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on my E-350?
The location depends on your engine. On 6.0L Power Stroke diesel models, it is generally located on top of the engine in the valley, between the turbocharger and the fuel filter housing. On gasoline V8 and V10 engines, it is most often found screwed into the side of the engine block, usually near the oil filter. Access can be tight due to the van's engine bay configuration.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most home mechanics. It typically requires basic hand tools, including a special deep socket for oil pressure 🎬 Watch: A quick 5-minute guide to replacing the switch on gas engines. switches. The process involves disconnecting the electrical connector, unscrewing the old switch, and screwing in the new one. Be prepared for a small amount of oil to drip out during the swap.
Is there a recall for the oil pressure switch on my van?
Based on searches of the National Highway Traffic Safety Administration (NHTSA) database, there are no specific recalls for a faulty engine oil pressure switch on the 2004-2011 Ford E-350 Super Duty. While Ford has issued recalls for oil pressure issues on other models, they do not apply to this specific part and vehicle range.
Should I use thread sealant on the new switch?
Many new oil pressure switches come with a thread sealant compound already applied to the threads. If your new switch has this, no additional sealant is needed. If the threads are bare, it is good practice to apply a small amount of automotive-grade thread sealant or Teflon tape to ensure a leak-free seal.
Helpful Videos
Technical Specifications

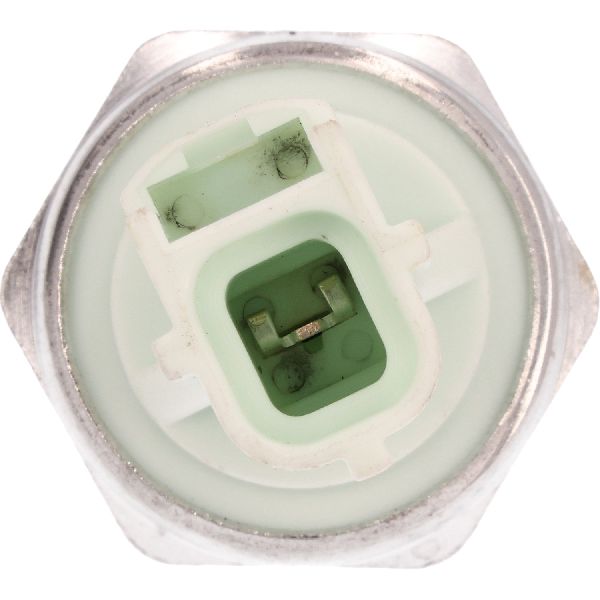

OEM Part Numbers: 6U5Z-9278-D E4ZZ-9278-A 1U5Z9278A SW6357
The oil pressure switch for the Ford E-350 is a pressure-activated electrical switch, not a variable sender. It is designed to close or open an electrical circuit when oil pressure drops below a preset threshold (typically 5-7 PSI), illuminating a warning light. The connector type and thread size vary by engine model and year.
