A Practical Guide to the Serpentine Belts on Your 2004-2011 Mazda RX-8
Understand the symptoms of a failing belt and learn how to choose the right aftermarket replacement for your Renesis engine.
- The RX-8 uses two separate belts; it's best practice to replace both at the same time.
- Squealing noises are the most common symptom and are often caused by incorrect manual tension, not a bad part.
- A broken main belt will cause the engine to overheat quickly, which is a critical failure.
- Reputable aftermarket brands like Continental, Gates, and Dayco offer OEM-quality performance for a lower price.
Is Your RX-8's Serpentine Belt Failing?
A failing serpentine belt on a Mazda RX-8 gives clear warning signs. Because the belt powers so many different parts, you might notice several issues at once. Being able to spot these symptoms early can prevent a sudden breakdown.
Common Symptoms of a Bad Belt:
- Squealing or Chirping Noises: This is the most common sign. You'll likely hear a high-pitched squeal or chirp from the engine bay, especially on cold starts or during acceleration. This noise means the belt is slipping on one of the pulleys.
- Power Steering Issues: If steering becomes difficult, especially at low speeds, the belt driving the power steering pump may be slipping.
- Electrical Problems: Dimming headlights or a battery warning light on your dashboard points to the alternator not being spun properly by the main belt.
- Engine Overheating: If you see the temperature gauge climbing, the main belt may have failed, stopping the water pump from circulating coolant. This is a critical issue that can cause severe engine damage.
- Visible Wear: A visual inspection can reveal a lot. Look for cracks, fraying, missing ribs, or a glazed, shiny appearance on the belt's surface. 🎬 Watch: See the difference between worn and new RX-8 belts.
A Note on RX-8 Belt Tension
The Mazda RX-8 uses manual belt tensioners, not automatic spring-loaded ones. This means tension must be set correctly by a mechanic during installation. Many owner complaints about squealing after a belt replacement are due to improper tensioning, not a faulty belt. A belt that is too loose will slip and squeal, while a belt that is too tight can damage the bearings in your alternator or water pump.
Choosing the Right Aftermarket Serpentine Belt
For the RX-8, a high-quality aftermarket belt from a reputable manufacturer is a reliable and cost-effective alternative to the OEM (Original Equipment Manufacturer) part. Brands like Continental, Dayco, and Gates are well-regarded in the industry and often supply the original parts to carmakers.
- Good (Tier 2): Store brands can be a budget-friendly option, but their quality and longevity can be inconsistent. For a car like the RX-8, it's generally worth spending a few extra dollars for a recognized brand.
- Better (Tier 1): Dayco and Gates are excellent choices. They are known OEM suppliers and produce durable, reliable belts that meet or exceed factory specifications. Many mechanics trust and use these brands daily.
- Best (Premium): Continental belts, particularly those with their anti-noise technology (formerly known as Goodyear Gatorback), are often considered a top choice for vehicles prone to belt noise. If you've had issues with squealing in the past, a Continental belt may provide the quietest operation.
Pro Tip: Replace in Pairs
Your RX-8 has two accessory belts. Since the labor to access them is the same, it is highly recommended to replace both belts at the same time, even if only one is showing signs of wear. This saves you money on future labor costs and ensures the reliability of the entire system.
Cost of Replacing a Mazda RX-8 Serpentine Belt
The cost to replace the serpentine belts on an RX-8 depends on the parts you choose and who performs the labor. Below is an estimated breakdown for the main serpentine belt.
| Item | Estimated Cost |
|---|---|
| OEM Main Serpentine Belt | $30 - $70 |
| Aftermarket Main Serpentine Belt (Continental, Dayco, Gates) | $20 - $45 |
| Shop Labor | $100 - $150 |
| Total Professional Replacement (Aftermarket) | $120 - $195 |
Frequently Asked Questions
Are there any recalls for the RX-8 serpentine belt?
No, there are no safety recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA specifically related to the serpentine belts for the 2004-2011 RX-8.
Can I replace the serpentine belt myself?

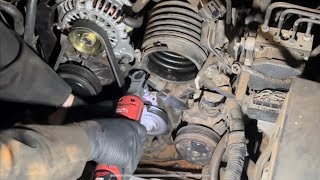

Yes, this is a DIY-feasible job for someone with mechanical experience. It requires removing the airbox and battery for access and properly using the manual tensioner adjustment bolts. 🎬 Watch: A complete DIY walkthrough for replacing your RX-8 belts. However, due to the critical importance of setting the correct tension, beginners may want to leave this job to a professional.
How often should the serpentine belts be replaced?
Most serpentine belts have a lifespan of 60,000 to 100,000 miles. However, it's best to inspect them visually at every oil change for signs of cracking or fraying and replace them as needed.
My new belt is squeaking. Is it defective?
Probably not. The most common cause of squeaking with a new belt on an RX-8 is incorrect tension from the manual tensioner. The belt is likely too loose and needs to be re-tensioned by a mechanic.
🎬 See this guide on diagnosing and fixing belt squealing noises.Helpful Videos
Technical Specifications

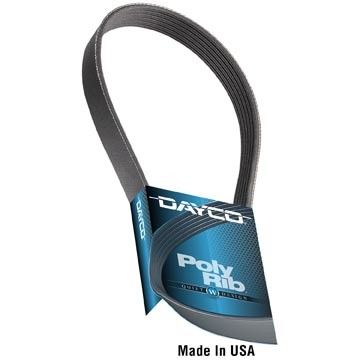

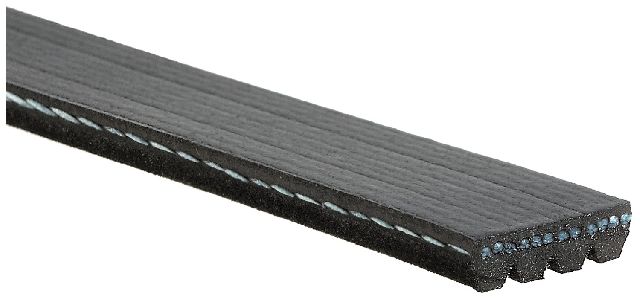

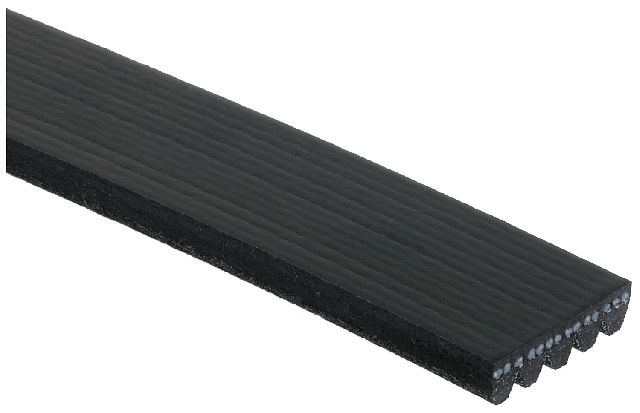

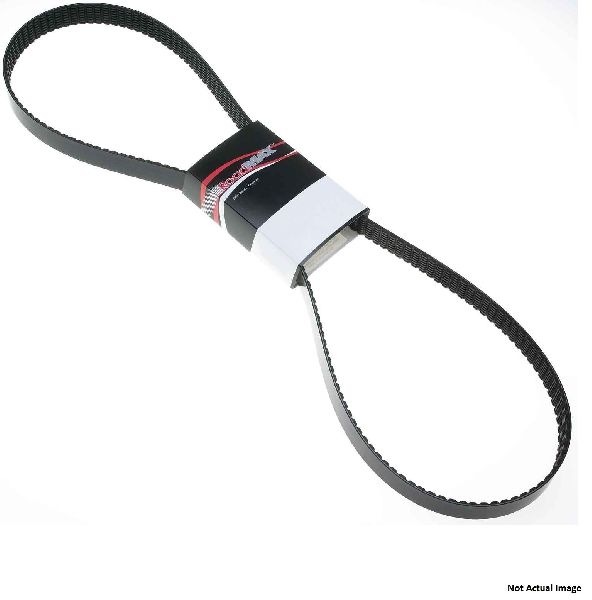

OEM Part Numbers: N3H1-18-381A N3R1-18-381
System uses two separate multi-rib (serpentine) belts. One for Alternator/Water Pump and one for A/C/Power Steering. Features manual tensioners.
