Volkswagen Beetle Manifold Absolute Pressure (MAP) Sensor Guide (2004-2011)
Understand why this tiny sensor is critical for your Beetle's engine and how to choose the right replacement.
- On 2.5L engines, check the PCV system and clean the throttle body before replacing the MAP sensor, as this is a common cause for the P0106 code.
- For reliability, choosing an OEM supplier brand like Bosch is the safest bet for this critical sensor.
- Replacement is simple for DIYers; the sensor is usually held by one or two Torx screws on the intake manifold.
- Check for a software update TSB (V011423) if you have a 2011 model with a P0106 code, as a new part may not be needed.
Is Your Beetle Running Rough? It Could Be the MAP Sensor.
If your 2004-2011 VW Beetle is idling poorly, losing power, or getting bad gas mileage, a faulty Manifold Absolute Pressure (MAP) sensor might be the problem. This sensor is vital for your engine's computer to correctly balance the air and fuel mixture. When it fails, it can cause a variety of noticeable issues.
A Common Issue on the 2.5L Engine
For Beetles with the 2.5L 5-cylinder engine, the P0106 trouble code is very common. Often, this code is triggered not by a failed MAP sensor, but by other issues. A dirty throttle body or a failing PCV valve can contaminate the sensor with oil, causing it to send incorrect readings. Before replacing the sensor, it's wise to inspect and clean the throttle body and check the PCV system. Volkswagen also issued a Technical Service Bulletin (TSB) for some 2011-2014 models (including the Beetle) because the sensor monitoring was too sensitive, suggesting a software update could fix the P0106 code 🎬 Watch this guide on fixing the P0106 code and software issues. without replacing parts.
Symptoms of a Failing MAP Sensor
- Check Engine Light: This is often the first sign. The most common trouble code is P0106 (Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem).
- Poor Engine Performance: You might feel sluggish acceleration, hesitation, or a general lack of power.
- Rough Idle: The engine may shake, vibrate, or have a fluctuating RPM at idle.
- Bad Fuel Economy: An incorrect signal can cause the engine to use more fuel than necessary.
- Failed Emissions Test: An improper air-fuel mixture leads to higher emissions of pollutants like HC, CO, and NOx. 🎬 Watch a breakdown of common symptoms caused by a bad sensor.
Choosing the Right Aftermarket MAP Sensor
When it comes to sensors for a German car, quality matters. A cheap sensor that sends slightly off-spec signals can cause persistent performance issues that are hard to diagnose. Here’s a breakdown of the brands available.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| OEM Supplier / Premium Aftermarket | Bosch, Delphi | Bosch is the original equipment manufacturer (OEM) for many VW parts, so their sensors are considered a direct equivalent to the genuine VW part, just without the VW logo. They are a top choice for reliability. Delphi is another major OEM supplier known for high-quality electronics. Both are excellent choices for a guaranteed fit and proper function. Expect to pay a premium for this quality. |
| Quality Aftermarket | Spectra, Standard Ignition (SMP), Vemo | These brands are well-regarded in the aftermarket. Standard Motor Products has a long history of producing reliable replacement parts. Vemo is a German brand that specializes in parts for European cars. Spectra offers quality parts that often meet or exceed OE specs. These are solid mid-range options that balance cost and quality. |
| Standard / Economy Aftermarket | Facet, Global Parts, Holstein, URO Parts | These brands offer a more budget-friendly solution. URO Parts is known for providing affordable alternatives for European cars, with some parts even having a lifetime warranty. Holstein advertises OE-matching form and fit with a 3-year/36k mile warranty. While functional, these economy parts may not have the same long-term durability or precise calibration as premium brands. They can be a good choice for a quick, low-cost repair, but be aware of potential inconsistencies. |
Pro Tip: Check the O-Ring
When installing the new sensor, make sure it comes with a new O-ring and that the O-ring is properly seated. A missing or damaged O-ring will cause a vacuum leak, leading to the same performance problems you're trying to fix.
Frequently Asked Questions (FAQ)
Where is the MAP sensor located on my 2004-2011 Beetle?
On most engines for this Beetle generation, including the popular 2.5L, the MAP sensor is mounted directly on the intake manifold, often near or underneath the throttle body. For the 1.8T engine, it's typically found on the intercooler or intercooler piping. It's a small black plastic sensor held in by one or two screws (usually T20 Torx) with an electrical connector.
Can I just clean my old MAP sensor?
Sometimes, yes. If the sensor is contaminated with oil or carbon, you can try cleaning it with a dedicated Mass Airflow (MAF) or electronics cleaner. Do not touch the internal sensing element. 🎬 See this tutorial on how to safely clean your MAP sensor. However, if the sensor's internal electronics have failed, cleaning will not help and replacement is necessary.
Do I need to do anything after installing a new MAP sensor?
After installing the new sensor, it's a good practice to clear the stored fault codes from the engine computer using an OBD-II scanner. Some sources also recommend recalibrating the throttle body, especially on the 2.5L engine, which may require a more advanced diagnostic tool.
Is there a recall for the MAP sensor on the 2004-2011 Beetle?
No, there are no specific recalls for the MAP sensor itself. However, Volkswagen did issue Technical Service Bulletins (TSBs) for some models with the 2.5L engine that experienced a P0106 code due to overly sensitive software. The TSB recommends a software update rather than replacing the sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 07C906051

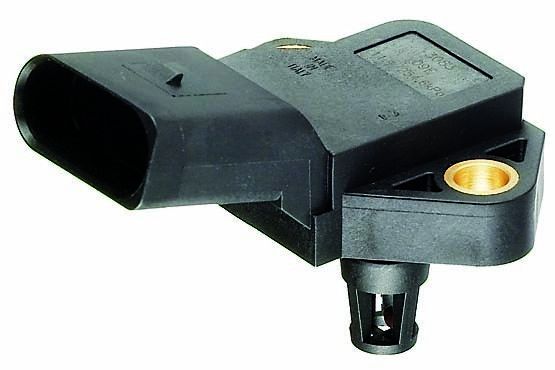

Typically a 3 or 4-pin sensor that mounts to the intake manifold with one or two T20 Torx screws.
