Engine Coolant Thermostat Guide for 2004-2012 Blue Bird Vision School Bus
Keep your bus fleet running on schedule by understanding thermostat failure, symptoms, and replacement options.
- A failing thermostat can either stick open (engine runs too cool) or stick closed (engine overheats). Overheating is a critical issue that can cause major engine damage.
- You must match the new thermostat to your specific engine (e.g., Caterpillar C7, Cummins ISB 6.7L) to ensure proper fit and temperature rating.
- While a recall for a thermostat issue existed for some Blue Bird buses, it specifically named the All American model, but highlights the importance of using updated parts.
- For a commercial school bus, using a high-quality aftermarket brand like Gates or an OEM part is recommended for maximum reliability.
Symptoms of a Failing Thermostat
A bad thermostat can cause significant issues for your bus, leading to unscheduled downtime. The most common failures are getting stuck open or stuck closed.
🎬 Watch this breakdown of common symptoms of a failing thermostat.Stuck Closed: The Most Dangerous Failure
If the thermostat sticks closed, coolant cannot get to the radiator to cool down. This will cause the engine to overheat rapidly, which can lead to severe and expensive engine damage, like warped cylinder heads or blown gaskets. Symptoms include the temperature gauge quickly moving to the red zone, engine overheating warnings, and potentially gurgling or hissing noises from the engine. You may also see coolant leaking as pressure builds in the system.
Stuck Open: The Sneaky Failure
When a thermostat sticks open, the engine may never reach its proper operating temperature, especially in colder weather. This leads to poor fuel efficiency, increased engine wear, and a heater that doesn't produce much heat. On modern buses, this can trigger a Check Engine Light with code P0128.
🎬 Learn how to test your thermostat and clear code P0128.Choosing the Right Aftermarket Thermostat

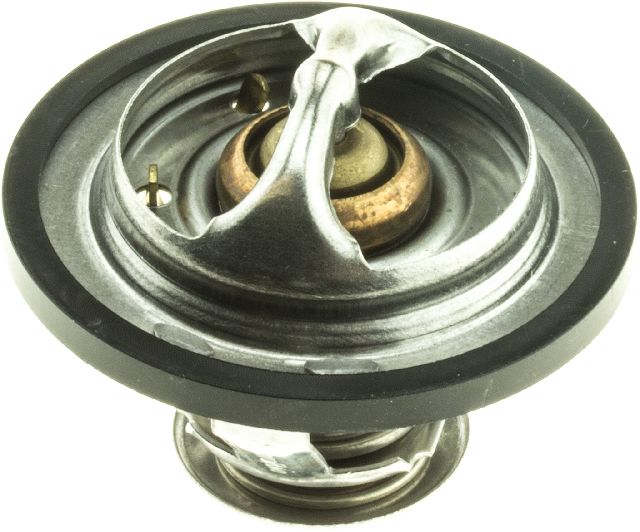

For a commercial vehicle like a school bus, reliability is the top priority. While OEM parts are always a safe bet, high-quality aftermarket parts can offer a significant cost saving without sacrificing performance. The 2004-2012 Blue Bird Vision was equipped with several different engines, most commonly the Caterpillar C7 and Cummins ISB 6.7L. 🎬 See how to fix common thermostat issues on a 6.7L Cummins. It is critical to select the thermostat designed for your specific engine.
Brand Quality: Gates vs. Motorad
Both Gates and Motorad are major manufacturers of cooling system components.
- Gates: Generally considered a high-quality aftermarket brand, often on par with OEM for cooling system parts. They have a long-standing reputation for reliability.
- Motorad: A very large manufacturer that supplies parts to many other brands, including some OEM and other aftermarket companies like Gates and Stant in some cases. While many of their products are reliable, some users report mixed experiences, with some parts being flimsier than their OEM counterparts. However, for many applications, a Motorad thermostat will perform correctly.
For a Blue Bird Vision, either brand is likely a suitable replacement, but given the critical nature of a school bus, leaning towards a trusted brand like Gates or even a direct OEM Cummins or Caterpillar part is a wise investment.
Known Issues, Recalls, and TSBs
A safety recall (NHTSA RECALL NO. 14V-313) was issued for some 2008-2013 Blue Bird buses, though it specifically mentioned the All American model with Cummins ISC and ISL-G engines, not the Vision. The issue involved the original thermostat causing a pressure pulsation at high RPMs, which could lead to a heater hose failure in the passenger compartment. The fix was to install a new "barrel-type" thermostat. While this recall may not directly apply to all 2004-2012 Vision buses, it highlights the importance of using the correct, updated part to ensure the safety and reliability of the cooling system.
Cost of Replacing an Engine Coolant Thermostat (2004-2012 Blue Bird Vision)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat (Part Only) | $12.21 - $61.33 |
| New OEM Thermostat (Cummins/CAT - Part Only) | $90 - $170 |
| Shop Labor | $150 - $300+ |
| Total Professional Replacement (Aftermarket) | $165 - $365+ |
| Total Professional Replacement (OEM) | $240 - $470+ |
Frequently Asked Questions
Can I replace the thermostat myself?
Yes, for someone with mechanical experience, this is a feasible DIY job. The thermostat is usually located at the front of the engine where the upper radiator hose connects. The process involves draining the coolant, removing the housing, swapping the thermostat, and then refilling and bleeding the system to remove air pockets. However, given the large volume of coolant in a bus, proper disposal is essential.
Why is my temperature gauge moving erratically?
A temperature gauge that bounces around can be a sign of a malfunctioning thermostat that is opening and closing at the wrong times. It can also indicate air in the cooling system or a faulty sensor. It's a symptom that should be investigated promptly.
Do I need to replace the gasket or seal?
Absolutely. Never reuse the old thermostat gasket or seal. Most new thermostats come with a new one, but if not, you must purchase one separately to ensure a leak-free repair.
What temperature thermostat should I use?
Always use the thermostat with the OEM-specified temperature rating for your bus's engine. Using a thermostat with a lower or higher temperature can negatively affect engine performance, fuel economy, and emissions.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5292740 (Cummins) 10032468 (Blue Bird)
The 2004-2012 Blue Bird Vision was primarily equipped with a Caterpillar C7 (2004-2009) or a Cummins ISB 6.7L (2006-2012) diesel engine. Some later or specialized models had propane or gasoline options. The correct thermostat depends entirely on the engine installed in the bus.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
