A Guide to the Engine Camshaft Position Sensor for the 2004-2012 Mercedes-Benz SL600
Keep your V12 engine running smoothly by understanding this critical sensor.
- A failing camshaft sensor can cause stalling, no-start conditions, and a Check Engine Light.
- For the SL600's V12 engine, using a high-quality aftermarket brand like Bosch (an OEM supplier) is strongly recommended over cheaper alternatives.
- Check the sensor's electrical connector for oil leaks; if oil is present, replace the sensor immediately to prevent costly damage to the engine's main computer.
- Replacement is a simple DIY task for most owners, requiring basic tools and access to the front of the engine.
Understanding the Camshaft Position Sensor in Your SL600
The V12 engine in your 2004-2012 Mercedes-Benz SL600 is a complex piece of machinery that relies on precise data from numerous sensors. One of the most important is the engine camshaft position sensor. This sensor acts like a messenger, constantly informing the main engine computer about the camshaft's rotation. This allows the computer to perfectly time when to inject fuel and when to fire the spark plugs. When this sensor starts to fail, the computer receives bad information, which can cause noticeable problems with how your car drives.
Symptoms of a Failing Camshaft Position Sensor
A bad camshaft position sensor can make itself known in several ways. You don't want to ignore these signs, as they can get worse over time.
🎬 Watch this video to learn about common sensor failure symptoms.- Check Engine Light: This is often the first and most obvious sign. The computer will detect a problem with the sensor's signal and trigger a warning light. Common trouble codes include P0340 and P0341. 🎬 Learn more about troubleshooting and diagnosing these specific sensor codes.
- Difficulty Starting: The engine may crank for a long time before it starts, or it might not start at all. This happens because the computer doesn't have the information it needs to begin the combustion sequence.
- Rough Idle and Stalling: Your SL600 may idle unevenly, shake, or even stall unexpectedly at a stoplight or while driving.
- Poor Performance and Fuel Economy: You might notice a loss of power, hesitation when you accelerate, and more frequent trips to the gas station.
- Oil Leaks at the Sensor: A common issue on Mercedes engines is for the sensor's internal seal to fail, causing oil to leak through the electrical connector. This oil can travel down the wiring harness and potentially damage the main engine computer, leading to very expensive repairs.
Oil Contamination Warning
It is highly recommended to inspect your camshaft position sensor connectors for oil. If oil is present, replace the sensor immediately to prevent it from wicking down the wiring harness and damaging the ECU. This is a known issue on many Mercedes-Benz engines from this era.
🎬 See how oil leaks can damage your engine's wiring harness.Choosing the Right Aftermarket Sensor
For a high-performance, sensitive engine like the SL600's V12, the quality of electronic sensors is critical. While saving money is always a goal, choosing a low-quality, no-name sensor can lead to continued problems and leave you replacing the part again.
- Premium Aftermarket (Recommended): Brands like Bosch are often the Original Equipment Manufacturer (OEM) for Mercedes-Benz. Choosing a Bosch sensor is the closest you can get to the dealer part without the dealer price. They are designed to meet the original specifications for performance and durability.
- Standard Aftermarket: Brands like Vemo, Facet, and Standard Ignition offer a more budget-friendly option. While they can be a good value, some forum users report mixed results with non-OEM brands on sensitive German engines. For an SL600, it is generally advised to stick with an OEM-quality brand if the budget allows.
- Budget Aftermarket: Lower-cost brands may use materials that don't hold up as well to the high heat of the V12 engine bay, potentially leading to premature failure. Given the critical function of this sensor, these are best avoided for this specific vehicle.
Pro Tip: How Many Sensors?
The Mercedes-Benz M275 V12 engine in your SL600 has multiple camshafts, and therefore uses multiple camshaft position sensors (four in total: two intake, two exhaust). While you only need to replace the one that has failed, if one has failed due to age, the others may not be far behind. It is also wise to replace them if you find oil leaking from the connectors.
Cost to Replace an SL600 Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $100 - $150 per sensor |
| New Aftermarket | $24.97 - $84.72 per sensor |
| Shop Labor | $70 - $140 per sensor |
Note: Costs are estimates and can vary based on your location and the specific repair shop. Labor costs may be lower if multiple sensors are replaced at the same time.
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor located on the 2004-2012 SL600?
The sensors are located on the front of the engine's cylinder heads. There are four in total, two on each side (one for the intake camshaft, one for the exhaust camshaft). They are typically held in by a single E8 Torx bolt and are accessible after removing the front engine cover.
Can I replace this sensor myself?
Yes, this is a DIY-friendly job for many home mechanics. The sensors are relatively easy to access on the front of the engine. The basic steps involve removing the engine cover, disconnecting the electrical plug, removing a single bolt, and swapping the old sensor for the new one. It's important to be gentle with the plastic electrical connectors, as they can become brittle with age.
Are there any recalls for the camshaft position sensor on the SL600?
There are no specific recalls found for the camshaft position sensor on the 2004-2012 SL600. There was a recall for the camshafts themselves on some newer, different model Mercedes vehicles with four-cylinder engines, but this does not apply to the SL600's V12.
Should I replace the crankshaft position sensor at the same time?
It is not required, but the camshaft and crankshaft position sensors work together. They are often made of similar materials and fail at similar ages. If your car has high mileage and you are replacing the camshaft sensors, replacing the crankshaft sensor as preventative maintenance can be a good idea to avoid future starting issues. However, the crankshaft sensor is much harder to access on this engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: A0041539628 A0041536928

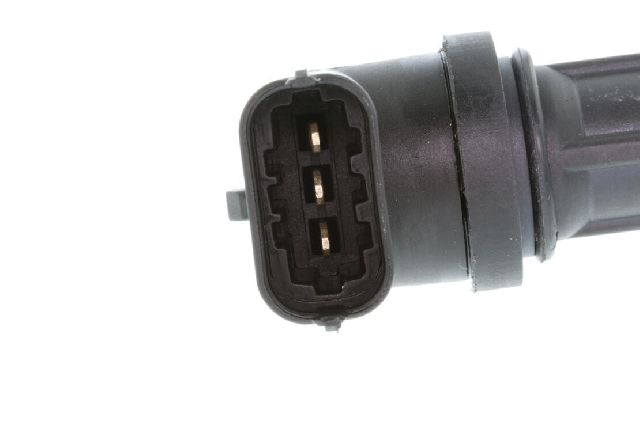

The SL600 uses four Hall effect camshaft position sensors, two for each cylinder bank (intake and exhaust). Each sensor is a 3-pin rectangular connector type.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
