A Guide to Replacing the Engine Oil Pan on Your 2004-2012 Volvo S40
Dealing with oil leaks? Here’s what you need to know about choosing a new oil pan for your S40.
- The most common failures are leaks from the sealant, stripped drain plugs, and cracks from impacts.
- Confirm if your car has an oil level sensor and buy a pan that matches, or be prepared to lose that function.
- Replacement is complex, requiring removal of the A/C compressor and replacement of multiple O-rings and liquid sealant.
- Aftermarket pans offer significant savings over OEM parts, making them a popular choice for this repair.
Is Your S40's Oil Pan Failing?
The oil pan itself is a durable part, but it's not invincible. Being at the bottom of the car, it's exposed to road hazards. The most common reasons for replacement are physical damage, like cracks from hitting debris, and persistent leaks that can't be fixed by other means. Here are the signs that your oil pan needs attention:
- Visible Oil Puddles: The most obvious sign is finding fresh oil spots on your driveway or garage floor, directly under the engine. 🎬 Watch: Identifying a common oil pan leak on the T5 engine.
- Low Oil Level Warning: If your S40 is equipped with an oil level sensor, you might see a warning light on your dashboard. This means the oil level is dangerously low, which could be caused by a leak.
- Stripped Drain Plug: The original oil pan is aluminum, and the drain plug threads can get stripped or damaged over time from repeated oil changes. Over-tightening the plug can also crack the pan itself. Once the threads are gone, you often can't get a good seal, leading to a constant drip.
- Burning Oil Smell: If oil is leaking from the pan, it can drip onto the hot exhaust pipes, creating a distinct burning smell while you drive.
Don't Ignore Leaks
A small oil leak might seem like just an annoyance, but it can lead to major engine damage if the oil level drops too low. Running an engine without enough oil will cause catastrophic failure. It's always cheaper to fix a leak than to replace an engine.
Choosing the Right Aftermarket Oil Pan
When shopping for a new oil pan for your 2004-2012 S40, you'll find several aftermarket brands. The original Volvo part can be expensive, often over $400, making aftermarket options an attractive choice. Here’s a look at the available brands:

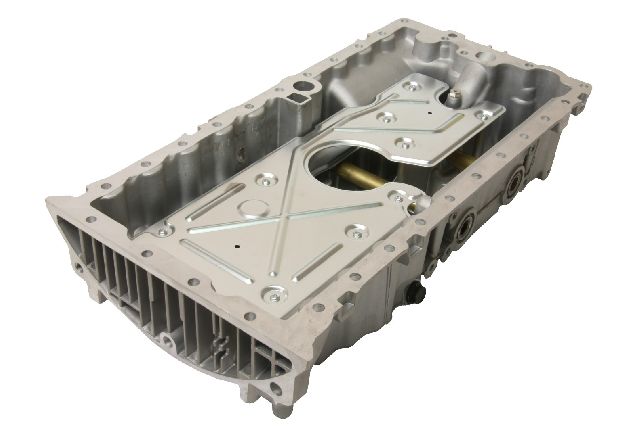

- URO Parts: A very common aftermarket brand for European cars, often seen as a budget-friendly alternative to genuine parts that meets original specifications.
- ATP: Some users in forums have noted that ATP pans can be more corrosion-resistant and may feature a more robust design for the drain plug threads compared to other value-oriented brands.

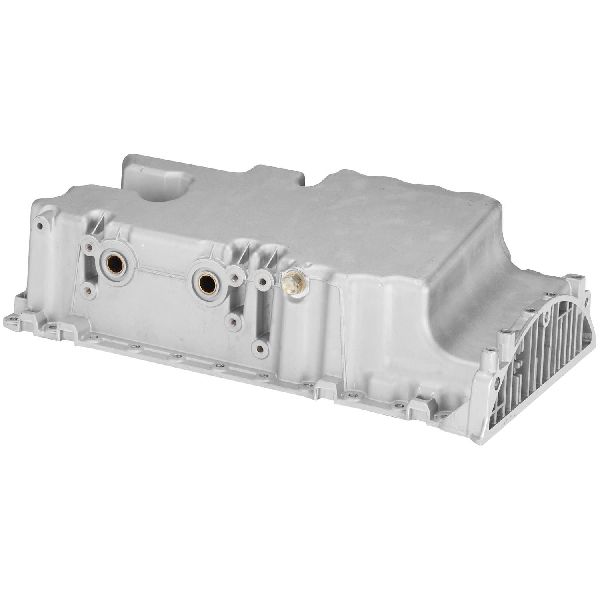

- Spectra: This is another widely available brand. Some reviews suggest they are a direct fit, while others have reported issues with leaky drain plugs on different vehicle models. Spectra notes that some of their aluminum pans include stainless steel thread inserts for better durability.
- Skyward: This brand is available, but specific owner reviews or detailed information regarding its quality for the Volvo S40 are not readily found in forums or reviews.
Important: Check for the Oil Level Sensor
Some S40 models came with an electronic low oil level sensor, while others did not. Aftermarket pans are available in both configurations. The pans are physically interchangeable. If your car has a sensor, make sure you buy a pan with the correct provision for it. If you install a pan without the sensor port on a car that needs one, the sensor will be eliminated and the warning light will no longer function.
Cost to Replace a Volvo S40 Oil Pan
| Part Type | Estimated Part Cost |
|---|---|
| New OEM | $400 - $550 |
| New Aftermarket | $182 - $445 |
| Shop Labor | $250 - $450 |
Frequently Asked Questions (FAQ)
Does the S40 oil pan use a gasket or sealant?
The 2004-2012 Volvo S40 does not use a traditional, pre-formed oil pan gasket. It uses a liquid anaerobic sealant. The mating surfaces on the engine block and the new pan must be perfectly clean before applying a thin, even layer of the sealant, often with a small foam roller.
Do I need to replace any other parts at the same time?
Yes. When you replace the oil pan, you must also replace several O-rings to prevent leaks. This includes three O-rings between the pan and the engine block, two for the oil cooler that attaches to the pan, and one for the dipstick tube. It's also the perfect time for an oil and filter change.
How difficult is it to replace the oil pan myself?
This is a job for an experienced DIYer. It is more complex than simply unbolting the pan. You will need to drain the coolant and oil, remove the A/C compressor and some power steering lines to gain access, and transfer the oil cooler from your old pan to the new one. The job typically takes 2-3 hours.
🎬 Watch this step-by-step guide to replacing your S40 oil pan.Can I repair my cracked aluminum oil pan?
While welding aluminum is possible, it's often not recommended for a DIY repair. A poor weld job on an oil-soaked pan will likely fail and continue to leak. Given the reasonable cost of a new aftermarket pan, replacement is almost always the better and more reliable solution.
🎬 See a close-up look at a damaged pan and repair options.Helpful Videos
Technical Specifications
OEM Part Numbers: 30777912 30777739 8692614
Material: Aluminum. Gasket Type: Liquid Sealant (Anaerobic). Fits both 2.4i and T5 5-cylinder engines. May or may not have a provision for an oil level sensor.
