A Guide to the Fuel Pressure Sensor for the 2004-2012 Volvo S40
Fixing stalling, hard starts, and poor performance begins with understanding this critical fuel system component.
- A failing fuel pressure sensor is a common cause of stalling, hard starts, and poor acceleration on the 2004-2012 S40.
- Bosch is the Original Equipment Manufacturer (OEM) and is the most recommended aftermarket brand for reliability.
- This is a simple DIY repair that can be done in under an hour with basic tools.
- Always relieve the fuel pressure from the fuel rail's Schrader valve before removing the old sensor to prevent fuel spray.
Is Your Volvo S40 Stalling or Hesitating?
If your 2004-2012 Volvo S40 is experiencing strange behavior like stalling, a long time to start, or a lack of power, a failing fuel pressure sensor could be the culprit. This sensor is a common failure point, especially on earlier models from 2004-2007 which may have used a flawed sensor from the factory. Ignoring the problem can lead to more severe issues, including the car not starting at all.
Common Symptoms of a Bad Fuel Pressure Sensor:
- Engine stalling, especially when accelerating from a stop
- Hard starting or taking longer than usual to crank
- Hesitation or surging power during acceleration
- Check Engine Light is on
- Reduced gas mileage
Known Issue: Early Sensor Failure
It's a known issue that the original Bosch sensors on some 2004-2007 models can fail prematurely. If you have an earlier S40 in this range and are experiencing symptoms, the fuel pressure sensor is a highly likely cause.
Choosing the Right Aftermarket Sensor
When it comes to sensitive electronic parts on a Volvo, brand choice matters. Not all aftermarket parts are created equal.
- Tier 1 (Best Quality): Bosch
Bosch was the original equipment manufacturer (OEM) for this part, meaning they made the part that Volvo originally put in your car. Choosing a Bosch aftermarket sensor is the closest you can get to buying the part from a Volvo dealer, but at a much better price. It is a direct replacement and is trusted for its quality and reliability. - Tier 2 (Good Quality): Standard Ignition (SMP)
Standard Ignition is a well-regarded aftermarket manufacturer that produces reliable sensors. While not the OEM, they are a solid choice if a Bosch part is not available. - Tier 3 (Budget): URO Parts, Replacement
These brands offer a more budget-friendly option. While they can get your car back on the road, their long-term reliability and manufacturing consistency may not match that of Bosch or Standard Ignition. For a critical sensor like this, it's often worth spending a little more for a higher-quality part to avoid doing the job twice.
Pro Tip: Check the Connector

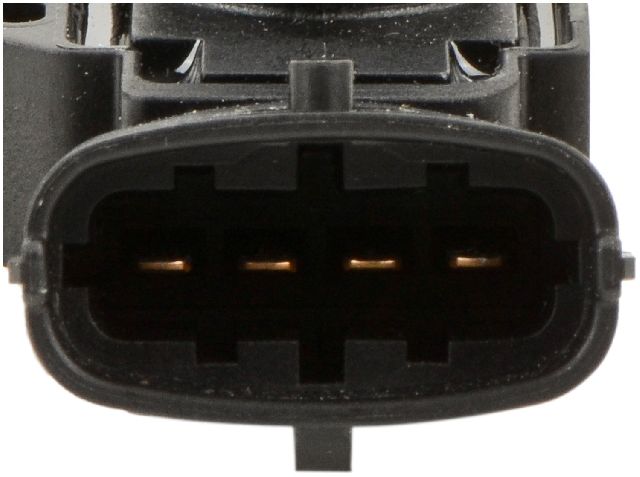

Before installing your new sensor, take a moment to inspect the electrical connector. Look for any signs of corrosion or damage on the wiring harness side. A bad connection can mimic the symptoms of a failed sensor.
Cost of Replacing the Fuel Pressure Sensor
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $42 - $85 |
| New OEM (Dealer) Sensor | $175 - $240 |
| Shop Labor | $100 - $150 |
| Total (DIY) | $42 - $85 |
| Total (Shop) | $275 - $390 |
Frequently Asked Questions (FAQ)
Where is the fuel pressure sensor located on my S40?
The fuel pressure sensor is located on the end of the fuel rail, which sits on top of the engine. You will need to remove the plastic engine cover to see it. It is held in place by a single T25 Torx screw and has an electrical connector attached.
Is this a difficult repair to do myself?
No, this is a very DIY-friendly repair. The most important steps are to relieve the fuel system pressure before you start and to work carefully. The job requires basic tools like a T25 Torx bit and can typically be done in under an hour. You must relieve the fuel pressure via the Schrader valve on the other end of the fuel rail to prevent fuel from spraying out.
Are there any recalls for this part?
There was a safety recall (NHTSA ID: 07V-226) for a faulty fuel pressure sensor on some 2003-2004 Volvo models, but it primarily concerned the S60 and V70. While the S40 was not the main focus, some early models in the 2004-2012 range experienced similar premature failures. There are no other widespread recalls specifically for the fuel pressure sensor on the 2004-2012 S40.
Can I just clean the old sensor?
No, cleaning the sensor is not a solution. The failure is typically internal to the sensor's electronics. Once it starts sending incorrect signals, it needs to be replaced.
Helpful Videos

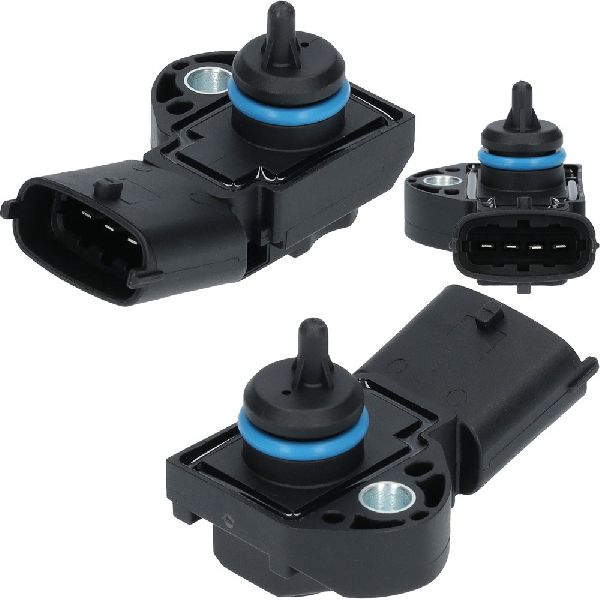

Technical Specifications
OEM Part Numbers: 31272730 30756097 8699449 30650015
Location: End of the fuel rail. Attachment: Single T25 Torx screw.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
