A Guide to the A/C Pressure Switch on Your 2004-2013 Cadillac Escalade
If your Escalade's A/C is blowing warm, this small sensor could be the simple fix you need.
- A faulty A/C pressure switch is a common, inexpensive, and simple fix for an A/C system that blows warm air.
- Symptoms include warm air, intermittent cooling, or a compressor that won't turn on at all.
- Replacement is very DIY-friendly; the switch often sits on a Schrader valve, so no refrigerant evacuation is needed.
- An aftermarket brand like Four Seasons is a reliable and cost-effective alternative to the OEM ACDelco part for this component.
Is Your Escalade's A/C Acting Up? Check the Pressure Switch
When the air conditioning in your 2004-2013 Cadillac Escalade stops blowing cold, it's easy to assume the worst, like a failed compressor or a major refrigerant leak. However, a common and much simpler point of failure is the A/C pressure switch. This small, inexpensive sensor plays a huge role in your A/C's operation and can cause a complete shutdown if it fails.
Symptoms of a Failing A/C Pressure Switch
A bad pressure switch can mimic other A/C problems. Here are the most common signs to watch for:
- A/C Blows Warm Air: This is the most obvious symptom. The switch may send a false signal that pressure is too low or too high, preventing the compressor from turning on at all.
- Intermittent Cooling: The A/C might cycle on and off rapidly, providing cool air one moment and warm air the next. 🎬 Watch: How to fix A/C that blows cold then stops. This can sometimes be heard as a clicking noise from the engine bay as the compressor clutch engages and disengages.
- A/C System is Completely Inoperative: If the switch fails completely, it won't send the necessary signal to allow the compressor to engage, resulting in no A/C function.
- Check Engine Light: A failing pressure switch can trigger a Check Engine Light with codes like P0532 (circuit low input) or P0533 (circuit high input).
Choosing the Right Aftermarket Switch: OEM vs. Four Seasons
For your Escalade, the original equipment (OEM) part is made by ACDelco. Aftermarket options, like those from Four Seasons, are also widely available.
- ACDelco (OEM): Generally considered the benchmark for quality and fit. If the price difference is minimal, choosing the OEM part provides peace of mind.

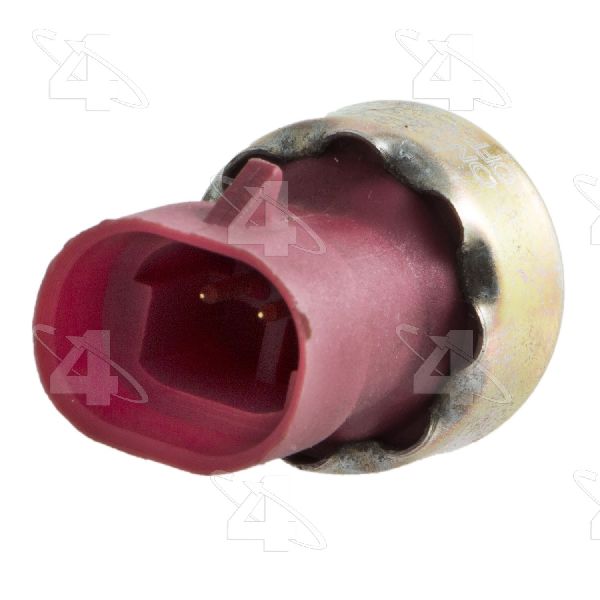

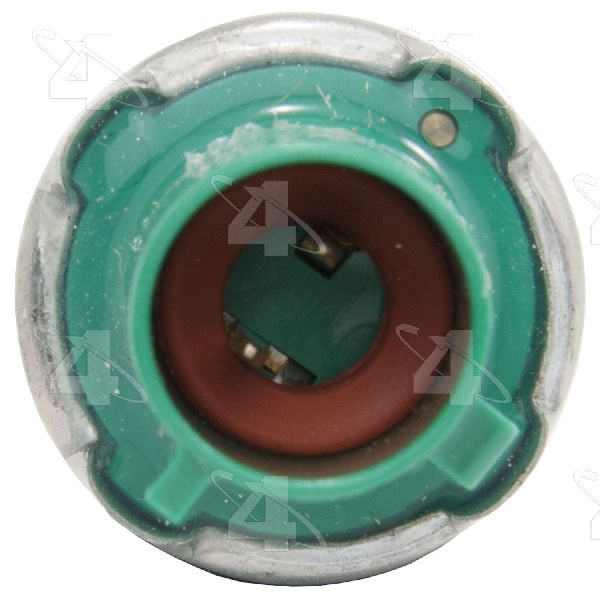

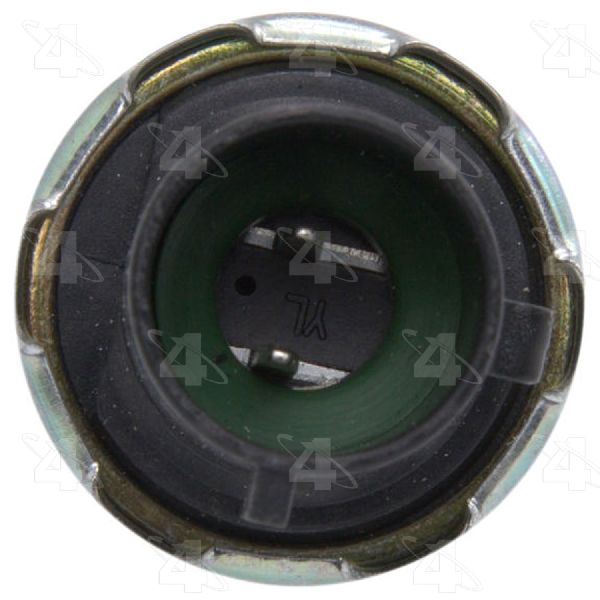

- Four Seasons (Aftermarket): Four Seasons is a well-known brand in the A/C parts industry and is generally considered a reliable, standard-quality replacement. For a simple electronic switch like this, an aftermarket part from a reputable brand like Four Seasons is often a cost-effective and perfectly suitable choice.
Pro Tip: An Easy DIY Replacement
On many GM trucks from this era, including the Escalade, the A/C pressure switch is mounted on a Schrader valve, similar to a tire valve. This means you can simply unscrew the old switch and screw on the new one without losing refrigerant or needing to evacuate the A/C system. 🎬 See this walkthrough on how to replace the pressure switch. Always confirm this by looking at the port where your switch is mounted before removal. If you don't see the valve pin, the system will need to be professionally evacuated first.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not reveal any specific recalls or widespread issues directly concerning the A/C pressure switch for the 2004-2013 Cadillac Escalade. Most A/C issues on these vehicles are related to leaks, compressor wear, or blend door actuators.
🎬 Watch: Top 5 reasons your GM A/C isn't blowing cold.Cost to Replace an A/C Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part (e.g., Four Seasons) | $30 - $40 |
| New OEM Part (ACDelco) | $40 - $55 |
| Shop Labor | $37 - $55 |
| Total Professional Replacement (Aftermarket) | $67 - $95 |
| Total Professional Replacement (OEM) | $77 - $110 |
Frequently Asked Questions
Can I replace the A/C pressure switch myself?
Yes, this is a very DIY-friendly repair. The switch is typically easy to access on one of the A/C lines in the engine bay. Since it usually sits on a Schrader valve, you can replace it in minutes with a simple wrench without any special A/C equipment.
Will a bad pressure switch damage my A/C compressor?
No, the switch is designed to fail in a way that protects the compressor. By preventing the compressor from running when pressure is unsafe, it avoids damage. Driving with a bad switch won't cause further harm, but you won't have air conditioning.
My A/C is blowing warm, but I don't have a Check Engine Light. Could it still be the switch?
Yes. The switch can fail to operate correctly without triggering a specific trouble code. If your A/C system is properly charged with refrigerant but the compressor won't engage, the pressure switch is a primary suspect.
What's the difference between a high-pressure and low-pressure switch?
Older systems had separate switches for high and low pressure. Your 2004-2013 Escalade uses a single pressure sensor (transducer) that reads the entire pressure range and communicates it to the computer. This single sensor handles both high and low-pressure cut-off functions.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13502759 22634172 22678731 15765001 88972205
This is a 3-wire pressure transducer that provides a variable voltage signal to the vehicle's computer, not a simple on/off switch.
