GMC Canyon 2004-2013 Windshield Washer Pump Replacement Guide
If your washer fluid isn't spraying, the fix is likely a simple and affordable new washer pump.
- A silent pump is the most common sign of failure on a GMC Canyon.
- This is a very easy DIY repair that most owners can complete in under an hour.
- Aftermarket pumps from brands like Trico are a cost-effective and reliable alternative to expensive OEM parts.
- Always replace the small rubber grommet that seals the pump to the tank to prevent leaks.
Is Your GMC Canyon Washer Pump Failing?
A non-working windshield washer system is a common issue on the 2004-2013 GMC Canyon. Most of the time, the problem is a failed washer pump. Before you buy a new part, it's smart to do a quick check. First, make sure your washer fluid reservoir is full. If it is, have a friend listen near the front passenger side of the engine bay while you activate the washer switch. If they don't hear a humming or whirring sound, the pump motor has likely failed. If you do hear the pump working but no fluid comes out, your nozzles or lines might be clogged.
🎬 Watch how to fix a washer system that won't spray.Check for Simple Fixes First
Always check for a blown fuse before replacing the pump. On these trucks, the washer pump fuse is often shared with the wipers, so if your wipers work, the fuse is likely fine. Also, in cold weather, make sure your fluid and nozzles aren't simply frozen.
Choosing a New Aftermarket Washer Pump
When shopping for a new washer pump for your Canyon, you'll find Original Equipment (OEM) and aftermarket options. For a simple part like this, an aftermarket pump is a reliable and cost-effective choice.
- OEM (ACDelco): This is the same part your truck was built with. It's a guaranteed fit but comes at a much higher price.
- Aftermarket (Trico, ACI, etc.): Aftermarket brands like Trico produce pumps designed to meet or exceed original specifications. They offer similar performance and reliability for a fraction of the cost, making them a popular choice for this repair. The installation is identical to the OEM part.
Cost of a New Windshield Washer Pump (2004-2013 GMC Canyon)
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $75 - $132 |
| New Aftermarket | $29 - $35 |
| Shop Labor | $50 - $100 |
Pro Tip: Replace the Grommet
The new pump should come with a new rubber grommet. Always use the new grommet to ensure a tight seal with the washer fluid reservoir and prevent leaks. Applying a little washer fluid to the grommet can make it easier to press the new pump into place.
Frequently Asked Questions (FAQ)
Can I replace the washer pump myself?
Yes, this is a great DIY job for beginners. The pump is typically located on the washer fluid reservoir in the engine bay or behind the passenger-side wheel well liner. The job requires basic tools and usually takes less than an hour.

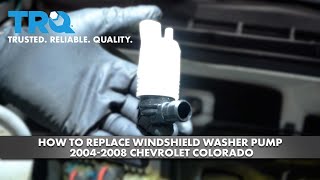

🎬 See this step-by-step walkthrough for replacing the washer pump.Are there any recalls on the washer pump for my Canyon?
No, there are no specific recalls or Technical Service Bulletins (TSBs) for the windshield washer pump on the 2004-2013 GMC Canyon. A recall for the 2011 model year (NHTSA 11V276000) concerned the wiper motor crank arm nut, which is a different part of the wiper system.
How do I test the old pump?
The easiest test is to listen for the motor's hum when the switch is activated. For a more definitive test, you can disconnect the electrical connector and use a multimeter to check for 12-volt power at the connector 🎬 Watch this video for a full windshield washer system diagnosis. when the switch is on. If you have power but the pump doesn't run, the pump is bad.
Why did my washer pump fail?
Failure is usually due to normal wear and tear of the internal electric motor. Running the pump while the reservoir is empty can also cause it to wear out faster. In some cases, the seal or grommet can fail, causing a leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89025062 22127652 89001122 19244681
12V electric motor, single outlet port, 2-pin electrical connector.
