Engine Water Pump Replacement Guide for the 2004-2014 Acura TSX
Learn how to choose the right replacement water pump to prevent overheating in your TSX's K24 or J35 engine.
- First, confirm if your TSX has the 2.4L 4-cylinder or 3.5L V6 engine, as the water pumps and replacement jobs are completely different.
- For V6 models, the water pump MUST be replaced with the timing belt and tensioner as a complete kit to prevent catastrophic engine failure.
- Aisin is the original equipment manufacturer; choosing Aisin or other reputable brands like Gates, Dayco, or Beck Arnley is recommended for longevity.
- Always replace the thermostat and use the correct Honda/Acura Type 2 blue coolant when changing the water pump.
Critical: 4-Cylinder vs. V6 Engine
Before buying a water pump for your 2004-2014 Acura TSX, you must know which engine your car has. This is the most important factor, as the parts and the replacement job are completely different.

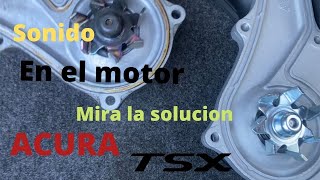

- 2.4L 4-Cylinder (K24 Engine): Found in all TSX models from 2004-2014. The water pump is driven by the external serpentine belt. Replacement is a moderately difficult job that can be done without major engine disassembly. 🎬 Watch this step-by-step 4-cylinder water pump replacement guide.

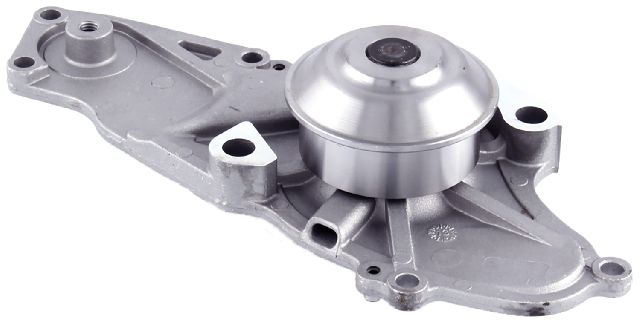

- 3.5L V6 (J35 Engine): Optional on TSX models from 2010-2014. The water pump is located behind the timing covers and is driven by the timing belt.
V6 Owners: Replace as a Kit!

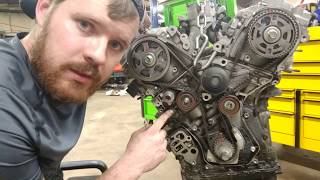

If you have the 3.5L V6, the water pump is a critical part of the timing belt system. It should always be replaced at the same time as the timing belt, tensioner, and pulleys, typically every 100,000 miles. 🎬 See how the water pump is replaced during a V6 timing belt job. The labor involved is extensive, so replacing only the pump is not cost-effective and risks catastrophic engine failure if the old belt or tensioner fails later.
Symptoms of a Failing Water Pump
A bad water pump usually gives warning signs before it fails completely. Ignoring these can lead to your engine overheating.
- Coolant Leaks: This is the most common symptom. You may see puddles of green or blue coolant under the front, passenger side of the car. The leak often comes from a small "weep hole" on the pump, which is designed to leak when the internal seal fails.

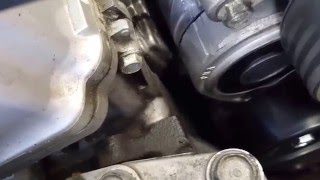

- Grinding or Whining Noise: A rough, grinding, or squealing noise from the engine bay that changes with engine speed 🎬 Listen to an example of a failing water pump bearing. often points to a failing bearing inside the pump.
- Engine Overheating: If the pump can no longer circulate coolant effectively, your temperature gauge will climb into the red. You might also see steam coming from the engine.
- Wobbly Pulley: If you can see the water pump pulley wobbling while the engine is running, the bearing has failed and immediate replacement is needed.
Choosing the Right Aftermarket Water Pump
For Acura and Honda vehicles, using the Original Equipment (OE) part is often recommended for critical components. The original manufacturer for the TSX water pump is Aisin. However, several high-quality aftermarket brands offer reliable alternatives that can provide excellent service life.
Here is a breakdown of common aftermarket brands:
- Tier 1 (Excellent Quality): Brands like Aisin are the OE supplier and offer a direct-fit, high-quality replacement. Gates and Dayco are also highly respected, especially in their timing belt kits which include a quality water pump. Many mechanics trust these brands for their reliability.
- Tier 2 (Good Quality & Value): Beck Arnley often sources parts from OE manufacturers, so you may receive an Aisin pump in a Beck Arnley box. GMB is a very common and generally reliable aftermarket brand, considered a standard replacement for many shops.
- Tier 3 (Economy): Brands like US Motor Works and Skyward are typically more budget-focused. While they meet fitment requirements, some owner experiences suggest they may not have the same long-term durability as higher-tier brands. One owner on a forum noted a poor fit with a generic aftermarket pump and strongly recommended sticking with OEM or a proven brand.
Replacement Cost
The cost to replace your TSX water pump depends heavily on your engine and whether you do the work yourself or go to a shop. The V6 is significantly more expensive due to the extensive labor of a timing belt job.
| Part / Service | 2.4L 4-Cylinder Cost | 3.5L V6 Cost |
|---|---|---|
| New Aftermarket Water Pump | $53 - $105 | $60 - $120 |
| Shop Labor (Pump Only) | $250 - $400 | N/A (Should be part of timing belt job) |
| Shop Labor (V6 Timing Belt & Water Pump Job) | N/A | $450 - $700 |
| Estimated Total (Shop) | $300 - $505 | $900 - $1,200+ (for full kit) |
Frequently Asked Questions
Should I replace my thermostat at the same time?
Yes, it is highly recommended. The thermostat is an inexpensive part and you'll already be draining the cooling system to replace the water pump. Replacing it at the same time is cheap insurance against future cooling system problems.
What is a "weep hole"?
The weep hole is a small opening on the water pump housing. It is designed to let a small amount of coolant escape when the internal shaft seal begins to fail. If you see coolant dripping from this hole, the pump needs to be replaced soon.
Do I need special coolant for my Acura TSX?
Yes. You must use a silicate-free, Asian-vehicle-compatible coolant, often labeled as "Blue" or "Type 2". Using the wrong type of coolant (like orange Dex-Cool) can cause corrosion and damage to cooling system components, including the new water pump.
Is an aftermarket water pump as good as OEM?
It depends on the brand. A pump from an OE supplier like Aisin is identical to the factory part. High-quality aftermarket brands like Gates, Dayco, and Beck Arnley are also trusted to meet or exceed OEM performance. While some budget pumps may work, forum discussions often recommend spending a little more for a reputable brand to avoid premature failure and having to do the job twice.
Pro Tip: Flush and Refill
When replacing your water pump, you should perform a complete coolant flush to remove any old, contaminated fluid and debris from the system. Refill with new, vehicle-specific coolant to protect your new pump and the entire cooling system.
Helpful Videos
Technical Specifications

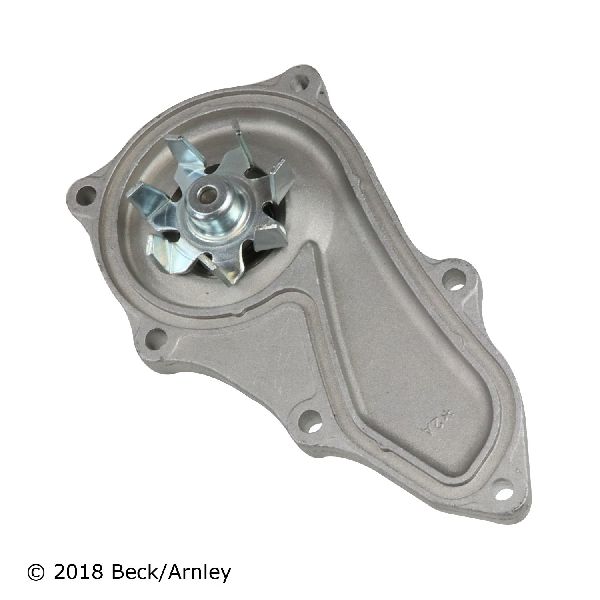

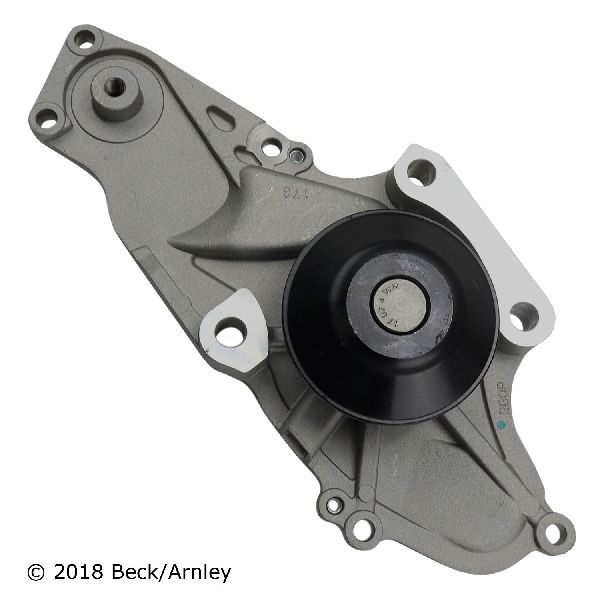

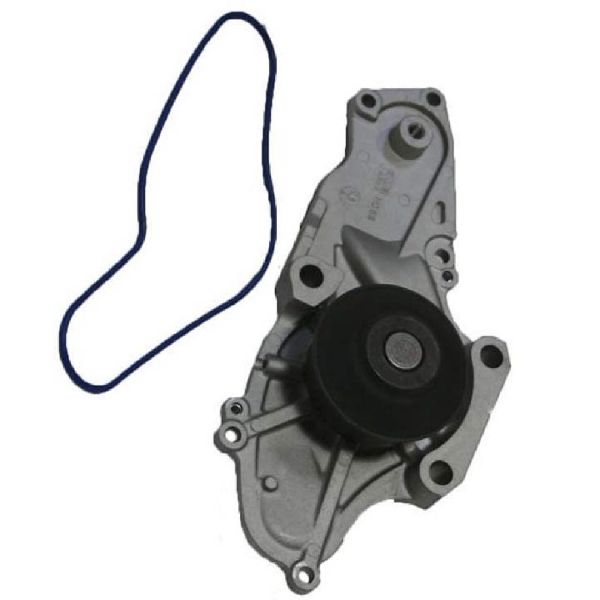

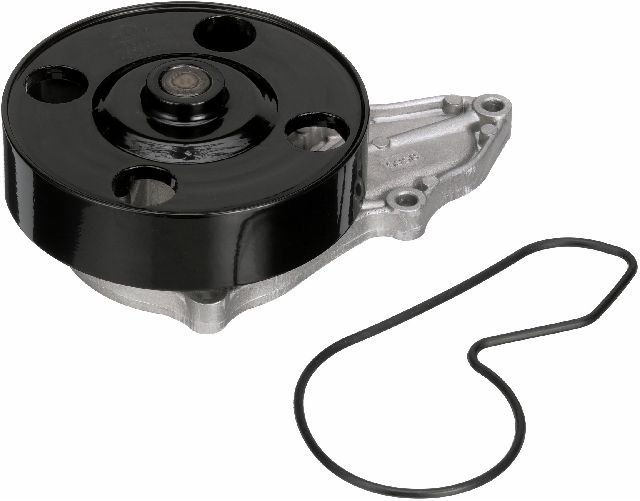

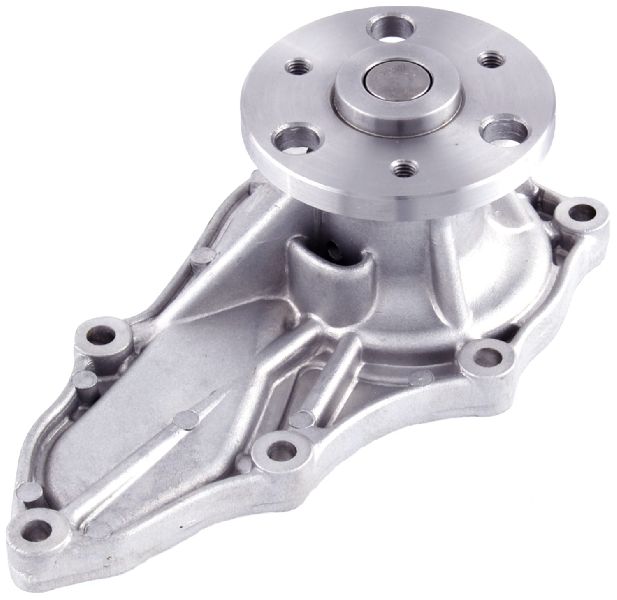

OEM Part Numbers: 19200-RBC-013 (2004-2008 2.4L) 19200-R40-A01 (2009-2014 2.4L) 19200-RDV-J01 (2010-2014 3.5L V6)
The 2.4L K24 engine uses a water pump driven by the serpentine belt. The 3.5L J35 V6 engine uses a water pump driven by the timing belt.
