Engine Water Pump Guide for 2004-2014 Chevrolet Express 1500
Keep your Express van's engine from overheating by understanding water pump replacement options.
- A leaking water pump is a known issue for these vans; look for coolant drips or a rising temperature gauge.
- Do not drive if the engine is overheating, as it can cause severe and expensive engine damage.
- For reliability, choose a premium aftermarket brand like Melling or ACDelco OE/Professional.
- While replacing the pump, it is highly recommended to also replace the thermostat, belt, and tensioner.
Signs of a Failing Water Pump
A bad water pump on your Chevy Express will usually give you a few warning signs before it fails completely. Ignoring these can lead to serious engine damage. 🎬 Watch a step-by-step guide on replacing your Express water pump. A common issue on the 2004 model, in particular, is a leaking water pump which can cause coolant loss and overheating.
🎬 Video: Replacing a leaking water pump on a 2004 model.- Coolant Leaks: This is the most obvious sign. You might see puddles of green, orange, or pink fluid under the front-center of your van. Sometimes, it's a slow leak that leaves a crusty residue on the engine. The leak can come from the pump's main gasket or the shaft seal.
- Overheating Engine: If the pump isn't circulating coolant effectively, your van's temperature gauge will climb into the red. Driving an overheating engine is a major risk and can cause warped cylinder heads or a blown head gasket.
- Whining or Grinding Noises: A high-pitched whining sound from the front of the engine that changes with engine speed often points to a failing bearing inside the water pump. This means the pump's internal parts are worn out.
- Wobbly Pulley: If you can safely inspect the front of the engine (with it turned off), check the pulley on the front of the water pump. If it feels loose or wobbly when you try to move it, the bearing is shot and failure is imminent.
Choosing the Right Aftermarket Water Pump
When replacing the water pump on your Express 1500, you have several options. Since these vans are often used for work, choosing a reliable part is key. OEM parts can be expensive, but many aftermarket brands offer good quality at a better price.
Aftermarket Brand Tiers
| Tier | Brands | Description |
|---|---|---|
| Premium Aftermarket | ACDelco (OE & Professional), Melling, Gates | These brands are known for high-quality materials and engineering that meets or exceeds original factory standards. ACDelco is the original parts supplier for GM. Melling has a strong reputation for quality engine parts and their water pumps are well-regarded. Gates is a trusted name in cooling systems, though some users suggest their water pumps can be hit-or-miss. |
| Quality Mid-Range | Dayco, GMB | Dayco is a reputable brand, often considered equivalent to OEM quality by mechanics. GMB is a long-standing company that serves as an OE supplier for some carmakers and is generally seen as a solid choice. |
| Economy | US Motor Works, Store Brands | These pumps are the most budget-friendly. However, quality can be inconsistent. Some users have reported premature failures or fitment issues with brands like US Motor Works. These are best suited for a temporary fix or if budget is the absolute top priority. |
Pro Tip: Replace More Than Just the Pump
While you have the cooling system apart, it's a smart and cost-effective move to replace other related wear items. This includes the serpentine belt, the belt tensioner, and the idler pulleys. Often, a failing water pump bearing has put extra stress on these parts. Also, always replace the thermostat and water pump gaskets with the new pump.
Frequently Asked Questions (FAQ)
Is an ACDelco "Professional" water pump the same as an OEM one?
No. ACDelco offers multiple product lines. The "OE" or "GM Original Equipment" line is the exact same part your van was built with. The "Professional" line is their high-quality aftermarket offering, which is good but may be made by a different manufacturer to different specs. The "Advantage" line is their budget-friendly option.
Do I need a special tool to replace the water pump on my Express van?
For the most part, you can do the job with standard tools like a socket set and pliers. However, the fan clutch nut can be difficult to remove without a specific fan clutch wrench set to hold the pulley while you turn the nut. You can often rent this tool from an auto parts store.
🎬 See how to remove the water pump and fan clutch.Should I use sealant on the new water pump gaskets?
Most modern gaskets, especially the metal ones with rubber coatings that come with quality pumps, are designed to be installed dry. However, some mechanics use a light spray of gasket tack adhesive to hold the gaskets in place on the pump during installation, which can be helpful. Avoid using thick silicone sealant (RTV) unless specified, as it can squeeze into the cooling passages and cause blockages.
How do I make sure I get all the air out of the cooling system after replacement?
After refilling the radiator, leave the radiator cap off and start the engine. Let it run with the heater on full blast. As the thermostat opens, you'll see the coolant level drop. Keep topping it off until the level is stable and you don't see any more large air bubbles. Some mechanics use a vacuum-fill tool to eliminate air pockets from the start.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19195104 12703898

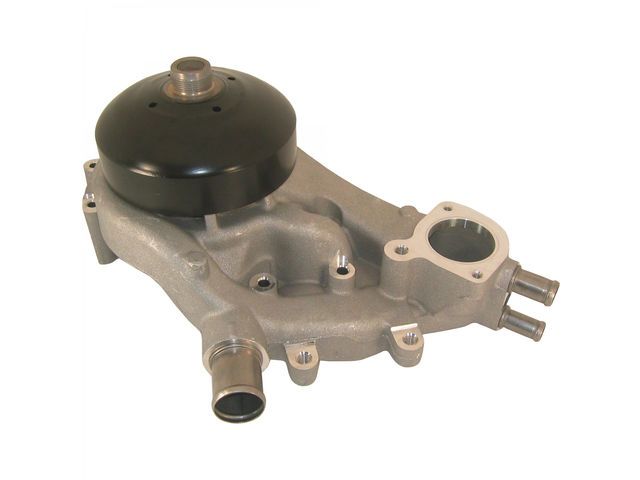

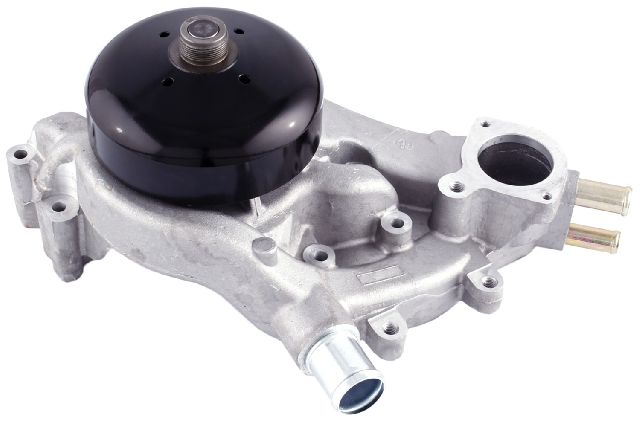

The water pump for the 2004-2014 Express 1500 with V8 engines (4.8L, 5.3L) is driven by the serpentine belt and typically has a 6-bolt mounting pattern. It features an aluminum housing and a steel or cast iron impeller. The pump circulates coolant in a reverse rotation. Ensure the replacement pump matches the engine type (V6 vs V8) as designs can differ.
