A Guide to Replacing Fuel Injectors on Your 2004-2014 Mazda 3
Keep your Mazda 3 running smoothly by understanding when and how to replace your fuel injectors.
- Confirm your engine type before buying: 2004-2011 models use port injectors (PFI), while 2012-2014 Skyactiv models use direct injectors (GDI).
- Symptoms like rough idle, poor gas mileage, and a check engine light often point to a failing fuel injector.
- It is strongly recommended to replace all fuel injectors as a set to ensure balanced engine performance and avoid future repairs.
- Brands like Bosch and Standard Ignition offer OEM-quality replacements, while Beck Arnley and Walker are solid mid-tier options.
Understanding Your Mazda 3's Fuel Injectors
The fuel injectors in your 2004-2014 Mazda 3 are critical for engine health. They deliver a precise amount of fuel at the right moment for combustion. This 11-year span covers two generations of the Mazda 3, which used different engine and fuel system technologies. It's crucial to know which one you have before buying parts.
Generation 1 (2004-2009) vs. Generation 2 (2010-2014)
The first-generation Mazda 3 (and 2010-2012 non-Skyactiv models) used traditional port fuel injection (PFI). In this system, fuel is sprayed into the intake manifold just before the cylinder. These injectors are generally reliable and easier to service. The second generation introduced Mazda's Skyactiv technology around 2012, which uses gasoline direct injection (GDI). GDI injectors spray fuel directly into the combustion chamber at very high pressure. This improves efficiency but also makes the injectors more complex and susceptible to issues like carbon buildup.
Symptoms of a Failing Fuel Injector
A bad fuel injector can cause a range of problems. If you notice any of these signs, it might be time for a replacement.
- Rough Idle and Misfires: The most common symptom is a shaky or vibrating engine, especially when stopped. This happens when a cylinder doesn't get the right amount of fuel, causing a misfire.
- Poor Fuel Economy: If you're filling up your gas tank more often, a leaking or inefficient injector could be wasting fuel.
- Check Engine Light: A failing injector will often trigger the check engine light. Common codes include P0300-P0304 for misfires and P0201-P0204 for injector circuit faults. 🎬 Watch: How to test if your fuel injector is working
- Hard Starting or Stalling: Not enough fuel from a clogged injector can make the car difficult to start or cause it to stall unexpectedly.
- Fuel Smell: A strong smell of gasoline in or around the engine bay could mean a leaking injector, which is a serious fire hazard.
Is It Safe to Drive with a Bad Fuel Injector?
You can usually drive with a minor injector issue, but it's not recommended for long. A misfiring cylinder can damage your catalytic converter, and a leaking injector is a fire risk. It's best to get it checked out as soon as possible.
Choosing the Right Aftermarket Fuel Injector
When your original injectors fail, you have several options. While OEM parts from Mazda are a guaranteed fit, high-quality aftermarket parts can offer similar performance for a lower price.
OEM vs. Aftermarket
The original injectors in your Mazda were likely made by a major manufacturer like Bosch or Denso. Buying an aftermarket injector from one of these brands often means you're getting the same quality as the original part without the dealership markup. Other aftermarket brands provide a range of options from budget-friendly to premium.
Brand Tiers for Your Mazda 3
OEM-Quality (Bosch, Standard Ignition): Bosch is a well-known OEM supplier for many brands, including Mazda. Their injectors are built to meet or exceed original specifications. Standard Ignition (SMP) is another trusted brand known for producing reliable, direct-fit replacement parts.
Mid-Tier (Beck Arnley, Walker Products): Beck Arnley specializes in sourcing parts that match the original form, fit, and function, often from the same factories that supply the OEM. Walker Products has a long history in fuel systems and produces parts that meet OEM standards.
Budget-Friendly (GBR Fuel Injection): GB Remanufacturing offers remanufactured injectors that provide a cost-effective alternative to new parts. While they can save you money, ensure they come with a good warranty.
Replacement Cost
The cost to replace fuel injectors can vary widely based on your engine type (PFI vs. GDI) and whether you do it yourself or go to a shop.
| Item | Estimated Cost |
|---|---|
| New OEM Injector (1) | $210 - $440 |
| New Aftermarket Injector (1) | $47 - $540 |
| Shop Labor | $140 - $350 |
| Total Professional Replacement (Set of 4) | $800 - $2500+ |
Cost estimates are based on 2026 data and may vary by location and vehicle specifics.
Frequently Asked Questions
Should I replace all four fuel injectors at once?
Yes. Injectors wear out at a similar rate. Replacing them as a set ensures balanced fuel delivery and prevents you from having to do the same job again in a few months when another old injector fails.
What's the difference between port (PFI) and direct (GDI) injectors?
Port injectors spray fuel into the air intake before it enters the cylinder. They are simpler and operate at lower pressures. Direct injectors spray fuel straight into the cylinder at very high pressure. This is more efficient but makes the injectors more complex and expensive. Your 2004-2011 Mazda 3 likely has PFI, while 2012-2014 Skyactiv models have GDI.
Can I clean my fuel injectors instead of replacing them?
Sometimes, a professional cleaning service can restore clogged injectors. However, if an injector has an internal electrical failure or is heavily worn, cleaning won't help. Given the labor involved in removing them, replacement is often a more reliable long-term solution.

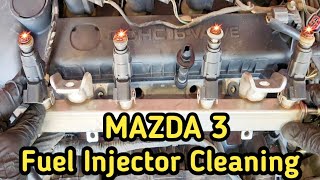

🎬 See how to clean dirty or clogged Mazda 3 injectorsIs replacing Mazda 3 fuel injectors a DIY job?
For non-Skyactiv engines with port injection, it's a manageable DIY job for someone with moderate mechanical skill. For Skyactiv direct injection engines, the job is more complex due to the high-pressure fuel system and may require special tools. Always disconnect the battery and relieve fuel system pressure before starting.

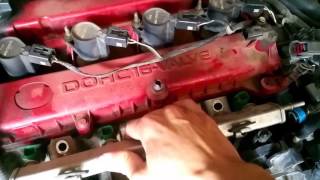

🎬 Follow this step-by-step DIY guide for fuel injector replacementHelpful Videos
Technical Specifications
OEM Part Numbers: L3K9-13-250A (2.3L Turbo) LF94-13-250 (2.0L/2.5L PFI) PE01-13-250B (2.0L Skyactiv) PE01-13-250D (2.0L Skyactiv)
Varies by engine. Port Fuel Injection (PFI) for 2.0L, 2.3L, and 2.5L MZR engines. Gasoline Direct Injection (GDI) for 2.0L and 2.5L Skyactiv engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
