Mazda 3 Rear Suspension Shock Mount Guide (2004-2014)
Addressing the common clunking noise and failure of the rear shock mounts in your 2004-2014 Mazda 3.
- The aluminum rear shock mounts on 2004-2014 Mazda 3s are a common failure point; expect to replace them.
- A loud clunking from the rear over bumps is the primary symptom of a failed mount.
- For improved durability, choose an aftermarket steel replacement mount, like the Dorman 924-412HP.
- Always replace rear shock mounts in pairs to maintain vehicle stability.
Is Your Mazda 3 Making a Clunking Noise?
If you own a 2004-2014 Mazda 3, you may have heard a distinct clunking or knocking sound coming from the rear of the car, especially when going over bumps. This is a very common symptom of a failed rear shock mount. The original factory mounts are known to be a weak point in the suspension system. Other signs of a bad shock mount include a bouncy or unstable ride, excessive vibrations, and uneven tire wear.
Known Issue: Failing Aluminum Rear Mounts

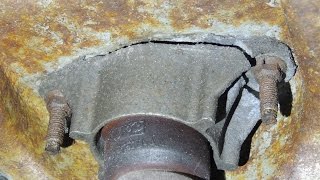

The original equipment (OEM) rear shock mounts on the first and second-generation Mazda 3 are made of cast aluminum. Over time, especially in areas with road salt and moisture, this aluminum corrodes, becomes brittle, and can physically break apart. When this happens, the shock absorber can detach from the vehicle's body, leading to a loud clunk and a dangerous loss of suspension control 🎬 Watch this walkthrough on replacing a broken mount and shock. on that corner. This is a widely documented failure point for these vehicles.
Choosing the Right Aftermarket Shock Mount
When replacing your shock mounts, you have a few options. Given the known issues with the original parts, this is one area where an aftermarket part can be a significant upgrade.
Brand Quality Tiers

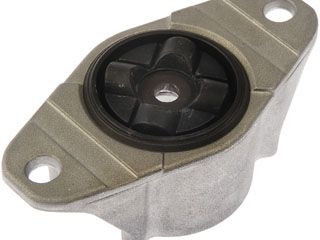

- Problem-Solver Upgrade (Dorman): Dorman offers a heavy-duty steel replacement mount (part number 924-412HP) specifically to address the failing OEM aluminum part. Many owners and mechanics recommend this steel version as a more robust, long-term solution that prevents the common breakage issue. Dorman also offers a standard aluminum replacement.

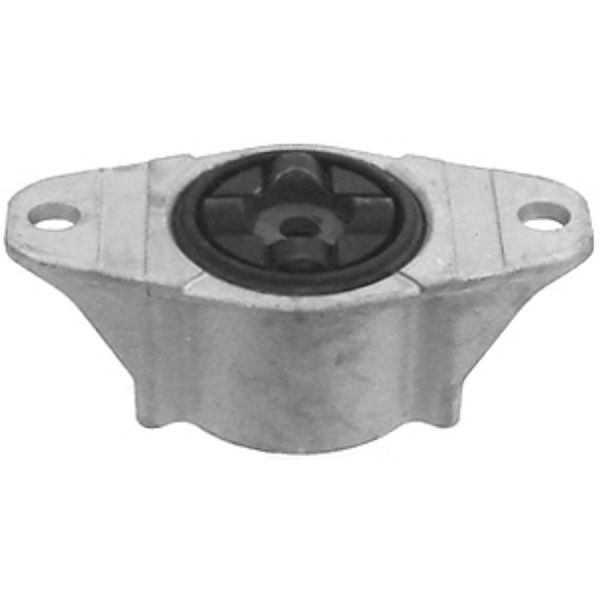

- Premium Quality (KYB): KYB is a highly respected brand in the suspension world and is often considered OEM-quality or better. Their mounts are known for restoring the original ride and performance. If you are replacing the entire shock and mount assembly, KYB is a top choice recommended by many Mazda 3 owners. 🎬 See a step-by-step guide to replacing your rear shock mounts.

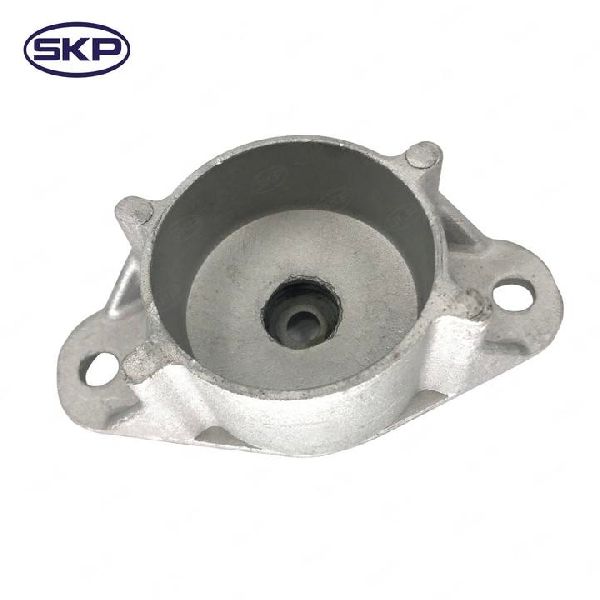

- Budget-Friendly (Skyward): Skyward represents the more economical end of the market. While no specific reviews were found for this brand on a Mazda 3, budget brands typically offer a functional replacement at a lower cost, though long-term durability and ride quality may not match premium offerings.
Avoid Common Ordering Mistakes: Gen 1 vs. Gen 2
The 2004-2014 range covers two Mazda 3 generations (Gen 1: 2004-2009, Gen 2: 2010-2013). While the upper rear shock mounts themselves are interchangeable, the lower mounting point of the shock absorber is different. Gen 1 shocks have a wider lower mount that requires a longer bolt. If you are replacing shocks at the same time, ensure you have the correct parts and hardware for your specific year to avoid installation problems.
Cost to Replace Mazda 3 Shock Mounts
| Part/Service | Estimated Cost |
|---|---|
| DIY Aftermarket Rear Mounts (Pair) | $35 - $140 |
| Shop Labor (Rear Pair) | $150 - $250 |
| Shop Replacement (All-in, Rear Pair) | $185 - $390 |
Costs are estimates and will vary based on your location, the specific parts chosen, and your mechanic's labor rates.
Frequently Asked Questions
Is this a DIY-friendly job?
Yes, for many home mechanics, replacing the rear shock mounts is a very achievable DIY job. It does not require a spring compressor and can be done with common hand tools. 🎬 Watch a DIY video on how to replace these mounts yourself. The job involves removing the wheel, unbolting the two nuts at the top of the mount inside the trunk or wheel well, and removing one bolt at the bottom of the shock. The entire assembly can then be removed from the car.
Should I replace mounts in pairs?
Yes, you should always replace suspension components like shock mounts in pairs (both rear mounts at the same time). If one has failed due to age and corrosion, the other is likely in a similar condition. Replacing them in pairs ensures balanced handling and predictable performance.
Are there any recalls or TSBs for this issue?
There are no official recalls for the Mazda 3 shock mount failure. However, there was a recall for other Mazda models around the same time for improperly torqued front strut bolts, which shows suspension hardware was a point of attention. There is also a Technical Service Bulletin (TSB 02-005/17) for popping and squeaking noises from the front suspension, which can be caused by the strut bearing or lower arm bushing. This is important to know so you can correctly diagnose the source of any suspension noise.
What's the difference between front and rear mounts?
The front mounts on a Mazda 3 are part of a more complex MacPherson strut assembly. They include a bearing that allows the entire strut to pivot as you steer. Replacing front mounts is a more involved job that often requires a spring compressor. The rear mounts are simpler, serving only to attach the separate shock absorber to the chassis.
Helpful Videos
Technical Specifications
OEM Part Numbers: BBM5-28-380 BJS8-28-380 KD45-28-380A BP4K-34-380
The key difference in aftermarket parts is material: OEM-style aluminum vs. upgraded steel replacements. The choice depends on prioritizing cost or long-term durability.
