Audi A6 A/C Receiver Drier Guide (2004-2015)
Everything you need to know before replacing the A/C receiver drier on your C6 or C7 Audi A6.
- The receiver drier MUST be replaced any time the A/C system is opened for service; failure to do so will void part warranties.
- Symptoms like weak cooling on C7 models (2012-2015) are very often caused by a faulty A/C pressure sensor, not the drier.
- This is not a DIY job. It requires a professional with special equipment to evacuate and recharge the A/C system.
- Verify your A6 generation (C6 vs. C7) before ordering, as the part type is different.
Is Your A6 A/C Not Blowing Cold?
If the air conditioning in your 2004-2015 Audi A6 isn't cooling like it used to, a few parts could be the cause. One of these is the A/C receiver drier. This part is a service item, which means it has a limited life. It must be replaced every single time the A/C system is opened for a repair, like when changing the A/C compressor or a hose. Failing to replace it can ruin your new parts and void their warranty.
A Very Common A6 Issue: The A/C Pressure Sensor

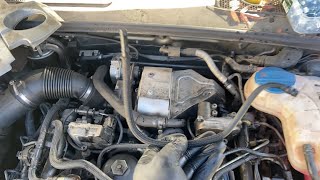

🎬 Watch this walkthrough for replacing the drier and pressure sensor.Before you blame the receiver drier for your A/C problems, know that a faulty A/C pressure sensor (part number G395) is a very common issue on the C7 generation A6 (2012-2015). This sensor can fail and tell the A/C system to shut down, even if everything else is fine. This leads to warm air from the vents. A pressure sensor is often a simpler and cheaper repair, so proper diagnosis by a mechanic is key to avoid replacing the wrong parts.
Symptoms of a Failing A/C Receiver Drier
When a receiver drier goes bad, it can't do its job of filtering and drying. Here are the signs:
- Weak or No Cold Air: This is the most common symptom. A clogged drier blocks refrigerant flow, so the system can't cool the air properly.
- Musty or Moldy Smell: When the desiccant material is full of water, it can allow mold to grow inside the A/C system. This causes a bad smell from your vents.
- Rattling Noises: If the desiccant bag inside the drier breaks, the loose material can rattle around. This is a serious problem that needs to be fixed immediately to prevent damage.
- Frost on A/C Parts: You might see frost forming on the drier itself or the A/C lines connected to it.
Choosing the Right Aftermarket Drier
For the Audi A6, the original part is usually made by a top-quality brand like Mahle. Aftermarket brands offer a more budget-friendly choice that works well for this specific part. Since the drier must be replaced every time the system is serviced, a quality aftermarket part is a smart, cost-effective option for most owners.
| Brand Tier | Brands | Our Assessment |
|---|---|---|
| Premium Aftermarket | Mahle, Nissens | Mahle is an OEM supplier for Audi, so their quality is considered excellent and a direct equivalent to the dealer part. Nissens is another well-respected European brand known for quality cooling and A/C components. Choose these for the best fit and longest service life. |
| Standard Aftermarket | Global Parts | Global Parts provides a reliable, budget-friendly option. For a mandatory replacement part like a receiver drier, this tier offers a good balance of quality and cost, meeting the necessary specifications for the A/C system. |
C6 vs. C7: A Critical Difference
It is essential to order the correct part for your A6 generation.
2004-2011 (C6): On these models, the receiver drier is a separate canister.

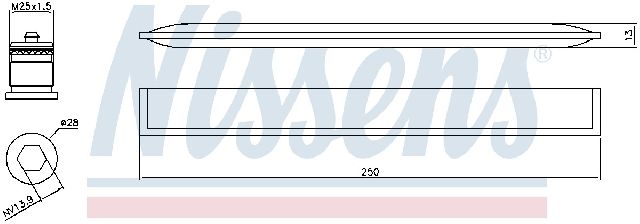

2012-2015 (C7): The drier is a 'desiccant bag' or cartridge that fits inside the A/C condenser. 🎬 See how to replace a desiccant element inside the condenser. You do not need to replace the entire condenser. Always verify the part type for your specific year.
Cost to Replace the Audi A6 Receiver Drier
The labor is the most expensive part of this job because it requires special equipment to service the A/C system. The mechanic must recover the old refrigerant, replace the part, pull a vacuum to remove all air and moisture, and then recharge the system with the correct amount of new refrigerant and oil.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $60 - $160 |
| New Aftermarket Part | $27.37 - $72.64 |
| Shop Labor & A/C Service | $387 - $568 |
| Total Professional Replacement | $415 - $640 |
Frequently Asked Questions
Do I have to replace the receiver drier when I replace my A/C compressor?
Yes, absolutely. The receiver drier must be replaced any time the A/C system is opened to the air. Not doing so will likely void the warranty on your new compressor and cause it to fail quickly.
Can I replace the Audi A6 receiver drier myself?
This is not recommended for a DIY mechanic. The job requires expensive, specialized equipment to safely recover refrigerant, pull a vacuum on the system, and recharge it correctly. Incorrect service can lead to poor cooling and damage to A/C components.
Are there any recalls for the 2004-2015 Audi A6 A/C system?
No, there are no specific recalls from the NHTSA for the A/C receiver drier or major A/C components on this generation of Audi A6.
What is an A/C system TSB?
A Technical Service Bulletin (TSB) is a notice from Audi to its technicians about known common issues. For the A6, Audi issued TSB 2044717 for a high-pitched A/C whine, which includes instructions related to the receiver-drier insert on C7 models. Other issues, like a faulty A/C pressure sensor, are also common and can be mistaken for a bad drier.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4F0820191B 8D0820193A 8K0298403
For the 2004-2011 (C6) models, the part is a standalone canister. For 2012-2015 (C7) models, it is a desiccant cartridge that fits inside the condenser assembly. It is crucial to verify the correct part for your specific model year before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
