A Guide to the Transmission Filter Kit for the 2004-2015 Cadillac SRX
Learn how to choose the right transmission filter kit to protect your SRX's complex automatic gearbox.
- You must identify if you have a 1st Gen (2004-2009) or 2nd Gen (2010-2015) SRX to buy the correct kit.
- Symptoms like shifting delays, whining noises, or a burning smell point to a needed transmission service.
- Using a quality brand is crucial; a poor filter fit can cause catastrophic transmission damage.
- Replacing the filter is a standard maintenance item that helps extend the life of your transmission.
A Critical First Step: Identify Your SRX Generation
Before you buy a transmission filter kit for your Cadillac SRX, you must know which generation you have. The 2004-2015 model years cover two completely different vehicle designs with different transmissions. Ordering the wrong kit is a common and frustrating mistake.
| SRX Generation | Years | Transmission Type | Key Identifiers |
|---|---|---|---|

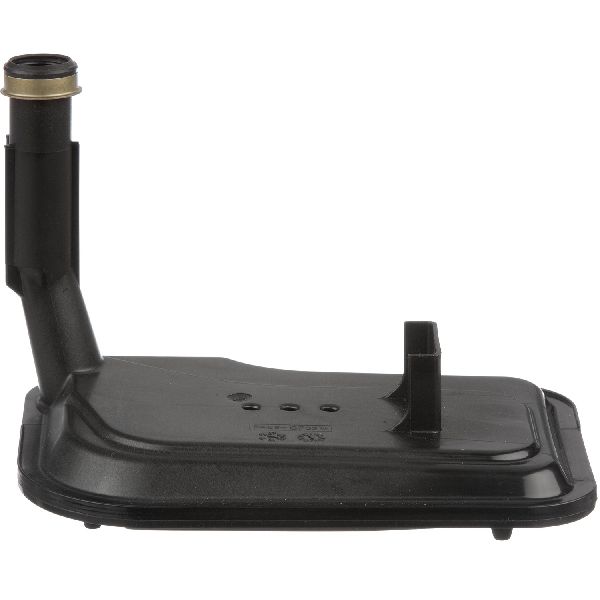

| First Generation | 2004-2009 | 5-Speed Automatic (5L40-E) | Rear-wheel drive (RWD) or All-wheel drive (AWD) platform. Offered with V6 and V8 engines. The filter kit uses a pan gasket with 22 bolt holes. | 🎬 Watch: First-generation SRX transmission fluid and filter change walkthrough.
| Second Generation | 2010-2015 | 6-Speed Automatic (e.g., 6T70) | Front-wheel drive (FWD) or All-wheel drive (AWD) platform. Offered with V6 engines only. |
Symptoms of a Clogged Transmission Filter
When the filter gets clogged with debris, it restricts fluid flow. This starves the transmission of the clean fluid it needs to shift smoothly and stay cool. Look out for these warning signs:
- Delayed or Rough Shifting: The vehicle may hesitate or jerk when shifting gears.
- Whining or Grinding Noises: A struggling transmission pump or poorly lubricated parts can make unusual sounds.
- Burning Smell: Restricted fluid flow causes the transmission to run hot, which can burn the fluid and create a distinct, acrid smell.
- Fluid Leaks: While not always caused by the filter, pressure changes from a clog can sometimes contribute to leaks.
- Reduced Power: The transmission may struggle to transfer power from the engine to the wheels, making the vehicle feel sluggish. 🎬 See this guide on common Cadillac transmission problems and causes.
Known Issues for the 2004-2015 Cadillac SRX
While no recalls exist for the transmission filter itself, several transmission-related issues are documented for this vehicle range:
Relevant Recalls & Service Bulletins
- 2010-2011 Models: A recall was issued for an improperly installed transmission shift cable that could allow the vehicle to roll away when in Park.
- 2013 Models: A software recall could cause the transmission to unexpectedly drop out of manual shift mode. Another software issue could cause a 3-4 second lag in acceleration.
- 2013 Models (TSB): A Technical Service Bulletin (TSB 13077A) was released for some 2013 models with the 6T70 transmission. It addresses a potential casting defect in the transmission housing that could cause a fluid leak over time.
Choosing the Right Aftermarket Filter Kit
For a part this critical, quality matters. A poorly fitting filter can fail to seal properly, allowing dirty, unfiltered fluid into the transmission or even sucking in air, which can quickly cause severe damage. Here’s a breakdown of available brand tiers.
OEM vs. Aftermarket
The original equipment (OEM) filter is made by ACDelco or GM Genuine Parts. It's the benchmark for quality and fit. However, high-quality aftermarket brands can offer good performance at a lower price. For many owners, a premium aftermarket filter is a smart choice, but budget filters can be risky due to inconsistent quality control.
- Premium Aftermarket (Wix): Wix is a well-respected brand known for making high-quality filters that meet or exceed OEM specifications. They are often considered a reliable and safe alternative to the dealer part.

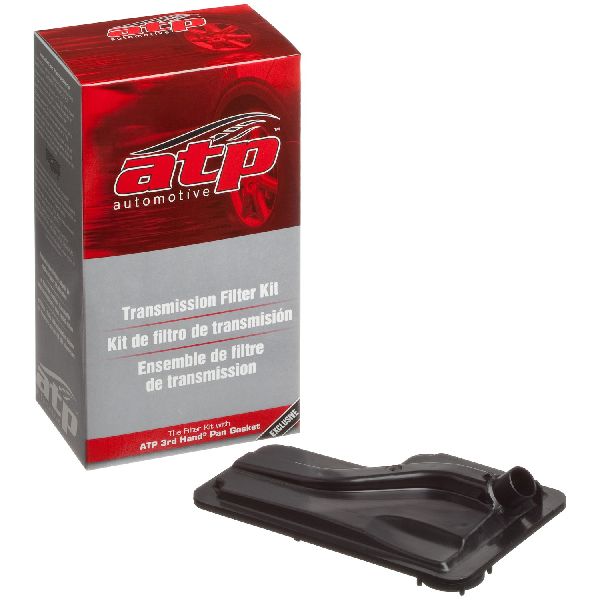

- Quality Aftermarket (ATP, Pioneer Cable): Brands like ATP often provide reliable kits and sometimes include helpful features, like gaskets designed to hold bolts in place during installation. These brands offer a good balance of quality and value.
- Value Brands (Premium Guard): These filters are designed to be a budget-friendly option. While they meet basic requirements, they may not have the same level of construction or material quality as premium brands. They are best suited for owners on a tight budget who still need to perform essential maintenance.
Cost of Replacing the Transmission Filter Kit
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $39 - $85 |
| New OEM (ACDelco) Kit | $70 - $130 |
| Shop Labor | $150 - $250 |
Frequently Asked Questions
How often should I change the transmission filter on my SRX?
Most manufacturers recommend a transmission service, including a filter change, every 30,000 to 60,000 miles. However, if you frequently tow or drive in heavy city traffic, you should consider servicing it more often.
Can I just change the fluid and not the filter?
It is not recommended. The filter holds onto years of accumulated debris. Adding fresh fluid without changing the filter can sometimes dislodge this debris, causing it to circulate and potentially clog narrow passages in the valve body, leading to shifting problems.
Is an aftermarket filter kit good enough for my Cadillac?
Yes, a high-quality aftermarket kit from a reputable brand like Wix or ATP is a perfectly acceptable choice. The most important factor is ensuring the filter fits correctly to prevent unfiltered fluid or air from entering the system. Avoid the cheapest options, as the risk of poor fitment is higher.
What type of transmission fluid does the Cadillac SRX use?
Fluid specifications are critical. First-generation (2004-2009) models typically require DEXRON-VI fluid. Second-generation (2010-2015) models also use DEXRON-VI. Always confirm the exact specification in your owner's manual before adding any fluid.
🎬 Watch: How to perform a V6 transmission drain and fill.Helpful Videos
Technical Specifications
OEM Part Numbers: 96042545 24208576
Vehicle-specific fitment for either the 1st Generation (5L40-E) or 2nd Generation (6T70) transmission. Kit typically includes filter, pan gasket, and necessary seals/o-rings.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
