Ford Explorer Horn: A Guide for 2004-2015 Models
If your Explorer's horn has gone silent, this guide will help you diagnose the issue and choose the right replacement part.
- Always check the horn fuse and relay first; it's the most common and cheapest fix.
- A faulty clock spring is another common cause, which also affects steering wheel controls and the airbag light.
- The horn is usually located behind the driver's side wheel well liner, requiring wheel removal for access.
- Aftermarket brands like Hella and Replacement offer cost-effective alternatives to OEM parts.
Is Your Ford Explorer's Horn Not Working?
A silent horn is a common issue for many vehicle owners. For the 2004-2015 Ford Explorer, the problem can stem from several sources. You might experience a horn that doesn't work at all, sounds weak or muffled, or only works intermittently. Before assuming the horn assembly itself has failed, it's wise to check a few other, less expensive components first.
Start with the Simple Stuff

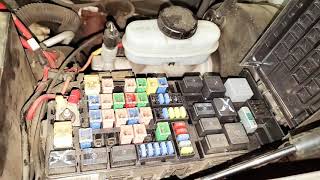

Always check the fuse and relay before buying a new horn. A blown fuse is a very common cause of horn failure and is the cheapest and easiest part to replace. For 2011-2015 models, the horn fuse is typically fuse #22 in the interior fuse box. 🎬 See this video to find the 2011-2015 horn fuse location. For earlier 2004 models, the fuse and relay are often in the under-hood fuse box. 🎬 Watch: Locate the horn fuse and relay on 2004 models. If you hear a clicking sound from the relay when the horn button is pressed but no horn sound, the relay is likely working, and the problem lies elsewhere.
Common Causes of Horn Failure in a Ford Explorer
- Blown Fuse: The most common and easiest fix.
- Faulty Horn Relay: The switch that sends power to the horn can fail.
- Bad Clock Spring: This part in the steering column allows the steering wheel to turn while maintaining electrical connections. If it fails, the horn button, airbag, and steering wheel controls may stop working. A recall (23S63/23V847) was issued for some Ford vehicles for clock spring issues that could affect horn function.
- Corroded Connectors or Wires: The horn is often located in the front of the vehicle, exposed to moisture. Corrosion on the electrical connectors or broken wires can interrupt power.
- Failed Horn Assembly: The horn itself can wear out or be damaged from exposure to the elements.
Choosing the Right Aftermarket Horn
When it's time to replace the horn assembly, you have options. You don't have to buy an expensive part from the dealer. Aftermarket parts offer a great balance of quality and value.
Brand Tiers:

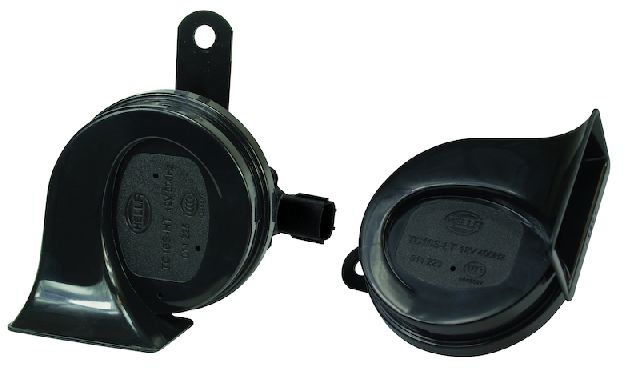

- Hella: Hella is a well-respected German brand known for making high-quality automotive lighting and electronic components. Their horns are often louder and have a more distinct, European tone than factory horns. They are a durable and reliable choice if you're looking for an upgrade in sound and performance.
- Replacement: This brand represents a budget-friendly, direct-fit alternative. These horns are designed to function just like the original part and get the job done without the brand-name price tag. They are a practical choice for owners who want a simple, cost-effective repair.
A Note on Installation
On many 2004-2015 Explorers, the horn is located behind the driver's side front wheel well liner. This means you will likely need to remove the wheel and the plastic splash guard to access it. While not overly difficult, it requires a few basic tools and a safe way to lift the vehicle.
Cost of Replacing a Ford Explorer Horn
The cost can vary depending on who does the work and which parts you choose. Doing it yourself is the most affordable option.
| Part / Service | Estimated Cost |
|---|---|
| New OEM Horn Assembly | $55 - $80 |
| New Aftermarket Horn (Hella, Replacement) | $45 - $72 |
| Shop Labor | $152 - $222 |
| Total Professional Replacement | $207 - $281+ |
Frequently Asked Questions
Where is the horn located on the 2004-2015 Ford Explorer?
On many models within this year range, the horn assembly is found behind the driver's side front wheel, requiring removal of the wheel and the inner fender liner or splash guard to access it. On some models, it may be behind the front grille.
My horn isn't working, but the fuse is good. What's next?
If the fuse is good, the next step is to check the horn relay. You can often swap it with an identical relay from a non-essential system (like the A/C) to test it. If the relay is good, the problem could be the clock spring, wiring, or the horn assembly itself.
Is it hard to replace the horn myself?
For a DIYer with basic tools, this is a manageable job. The main challenge is accessing the horn's location. You'll typically need a jack and jack stands, a lug wrench, and basic sockets and screwdrivers. The replacement itself usually involves removing one bolt and one electrical connector.

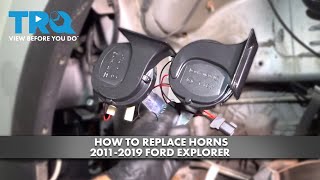

🎬 Watch this step-by-step walkthrough for replacing the horn assembly.Do I need to replace both the high and low-tone horns?
Most aftermarket replacements are sold as single units (either high or low tone), while some kits include both. If only one of your horns has failed, your horn might just sound weak or strange. It's often a good idea to replace them as a pair to ensure a proper, strong sound and to avoid having the other original horn fail soon after.
Helpful Videos
Technical Specifications
OEM Part Numbers: BB5Z-13832-A 6L2Z-13832-AB 4L3Z-13832-AB GB5Z-13832-B
Most 2004-2015 Ford Explorers use a dual-horn system, consisting of a high-tone and a low-tone horn. They operate on the vehicle's 12V electrical system. Replacement horns should be compatible with the factory wiring connector, though some universal-fit horns may require splicing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
