Scion xB A/C Expansion Valve: Your Guide for 2004-2015 Models
Is your Scion xB's air conditioning blowing warm? The A/C expansion valve could be the problem.
- A bad expansion valve causes warm or intermittent A/C; however, for 2004-2005 models, check for a simple cable adjustment first (TSB AC002-04).
- Replacement is drastically different by generation: 1st Gen (2004-06) is an engine bay job, while 2nd Gen (2008-15) requires removing the dashboard.
- This is not a DIY-friendly repair. It requires specialized equipment to handle refrigerant, and the labor for 2nd Gen models is extensive.
- Choose a high-quality aftermarket brand like Denso or Four Seasons. The cost savings on a budget part are not worth the risk of a repeat repair.
Is Your Scion xB's A/C Failing? Understanding the Expansion Valve
If your 2004-2015 Scion xB struggles to blow cold air, especially on hot days, a failing A/C expansion valve might be the culprit. This component is essential for regulating refrigerant flow. When it fails, it can cause a range of frustrating A/C problems. This guide will walk you through the symptoms, replacement considerations, and how to choose the right aftermarket part for your xB.
Symptoms of a Bad A/C Expansion Valve in a Scion xB
A bad expansion valve can mimic other A/C problems, but here are the most common signs for this specific failure:
- Warm or Lukewarm Air: The most obvious symptom. The valve is stuck, preventing the right amount of refrigerant from entering the evaporator.
- Intermittent Cooling: The A/C works sometimes but not others. It may blow cold for a few minutes and then turn warm. This can happen if the valve is sticking intermittently.
- Frost on A/C Components: You might see frost or ice on the A/C lines or the valve itself. This can indicate a valve that is stuck closed or clogged.
- A/C Only Works at Highway Speeds: While often a sign of a bad cooling fan, if the fan is working correctly, a faulty expansion valve can sometimes contribute to this issue.
First Generation (2004-2005) Known Issue
For 2004-2005 Scion xB models, a common complaint of "A/C not cold enough" is addressed by Technical Service Bulletin (TSB) AC002-04. This issue is often caused by a poorly adjusted air mix damper cable, not a failed expansion valve. 🎬 Watch this video to see how to fix the air mix damper cable. Before replacing parts, check if this simple adjustment resolves your weak A/C problem.
Choosing the Right Aftermarket Expansion Valve
When replacing the expansion valve, you have several brand choices. Quality matters, as a failed part means repeating an expensive, labor-intensive job.
Brand Tiers for Your Scion xB:
- Tier 1 (OEM Quality): Denso. Denso is the original equipment manufacturer for many Toyota and Scion parts. If a Denso expansion valve is available for your year, it is the most recommended choice for fit and reliability.
- Tier 2 (Quality Aftermarket): Four Seasons, Nissens. Four Seasons is a well-known aftermarket brand that offers a good balance of price and quality for a new part like an expansion valve. Nissens is also considered a quality brand, though it's always wise to confirm fitment.
- Tier 3 (Economy): Global Parts (GPD), UAC. These brands are typically the most affordable. While they can be a budget-friendly solution, some users report a higher rate of premature failure with more complex components like compressors from these brands. For a part with such high labor costs to replace, investing in a higher-tier brand is often worth the extra money.
Pro Tip: Replace the Receiver/Drier
Anytime the A/C system is opened to the atmosphere, you MUST replace the receiver/drier (also called an accumulator). The drier contains a desiccant that absorbs moisture. Once exposed to air, it becomes saturated and useless. Failing to replace it will lead to moisture in the system, corrosion, and premature failure of your new parts.
A/C Expansion Valve Replacement: Cost & Difficulty
This is not a simple DIY job for most home mechanics. The replacement requires specialized tools to legally and safely recover the old refrigerant and vacuum/recharge the system after the new part is installed. Attempting this without proper procedure can damage the A/C system and is harmful to the environment.
🎬 Watch a general guide on how to replace a car's expansion valve.Generation Differences are KEY:
- 1st Gen (2004-2006): The expansion valve is located on the firewall in the engine bay. While in a tight spot, it is accessible without removing the dashboard. 🎬 See a walkthrough of the 1st Gen expansion valve removal process. This makes the labor much more reasonable.
- 2nd Gen (2008-2015): The expansion valve is typically located behind the dashboard and requires removing the glove box, and in many cases, the entire dashboard and heater core assembly to access. This is a significantly more labor-intensive and expensive job.
| Generation | Part Cost (Aftermarket) | Estimated Shop Labor | Estimated Total Cost |
|---|---|---|---|
| 1st Gen (2004-2006) | $30 - $105 | $250 - $400 | $280 - $505 |
| 2nd Gen (2008-2015) | $30 - $105 | $900 - $1,600+ | $930 - $1,705+ |
*Costs are estimates and will vary based on your location, the specific shop, and the brand of part used. The wide range reflects the major difference in labor between the two generations.
Frequently Asked Questions (FAQ)
Are there any recalls for the Scion xB A/C expansion valve?
No. As of early 2026, there have been no recalls issued by the NHTSA for the A/C expansion valve on any 2004-2015 Scion xB. Recalls for these vehicles have focused on issues like Takata airbags and power window switches.
Can I just use an A/C recharge can to fix this?
No. If the expansion valve has failed, adding more refrigerant will not solve the problem. In fact, overcharging the system can cause more damage. Proper diagnosis with a set of A/C manifold gauges is needed to confirm the failure.
Why is the replacement cost so different between a 2006 and 2008 xB?
The location of the part is completely different. On the first-generation (2004-2006) xB, the valve is on the engine-side of the firewall, making it relatively easy to access. On the second-generation (2008-2015) xB, the valve is inside the cabin, behind the dashboard, requiring many hours of labor to remove interior components for access.
Should I buy an OEM or aftermarket expansion valve?
For this part, an OEM-quality aftermarket brand like Denso is an excellent choice and is often the same part as the original without the dealer markup. High-quality aftermarket brands like Four Seasons or Nissens are also reliable options. Given the high cost of labor, especially for 2nd gen models, it is not recommended to use budget-tier parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88515-52040 88515-52020 88515-26070 88515-12100 88515-42090 88515-02480

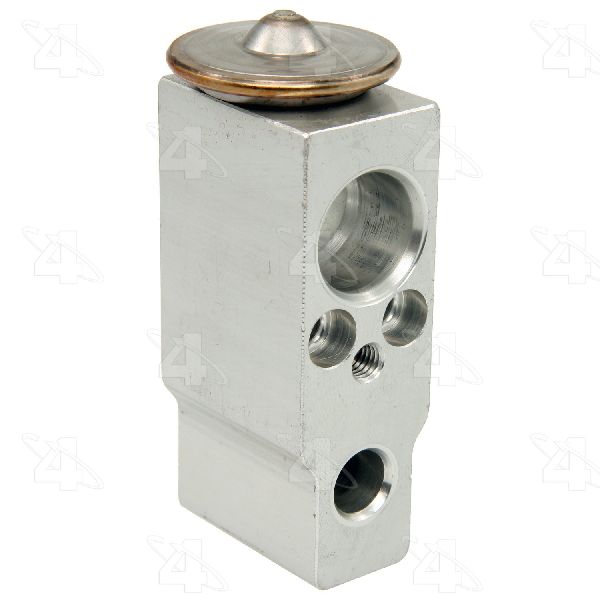

The Scion xB uses a block-type expansion valve. Part numbers vary significantly by model year and generation. Always confirm fitment using your vehicle's VIN before ordering.
