A Scion xB Owner's Guide to the Brake Light Switch (2004-2015)
Fix brake light failures, cruise control problems, and dashboard warning lights on your Scion xB.
- A bad brake light switch on an xB often causes VSC and ABS warning lights, not just brake light failure.
- Replacement is very easy for a DIYer, requiring no special tools and taking under 30 minutes.
- Before buying a new switch, check for a broken plastic stopper on the pedal arm, which causes identical symptoms.
- Verify if you need a 2-pin or 4-pin switch; models with cruise control typically use a 4-pin switch.
Is Your Scion xB Brake Light Switch Failing?
A faulty brake light switch can cause confusing problems that seem unrelated to the brakes. Because this switch communicates with multiple systems in your xB, its failure can trigger a range of symptoms beyond just the brake lights themselves. Identifying these signs early can save you from a wrong diagnosis.
Common Symptoms of Failure
- Brake Lights Don't Work: The most obvious and dangerous symptom. Your brake lights do not turn on at all when you press the brake pedal.
- Brake Lights Stay On: The switch can fail in the 'on' position, leaving your brake lights illuminated constantly, which can drain your battery.
- Cannot Shift Out of Park: The safety interlock system requires a signal from the brake switch to allow the shifter to move. If the signal is missing, your gear selector will be stuck in Park. 🎬 Watch: How to fix a shifter stuck in Park
- Cruise Control Won't Engage: If the switch sends a constant 'brake on' signal, the cruise control system will not activate as a safety measure.
- ABS or VSC/TRAC Warning Lights: Many Scion xB owners report that a bad brake light switch can cause the ABS, VSC, and/or TRAC warning lights to appear on the dashboard. This is a known electrical quirk in these vehicles.
A Critical Safety Check

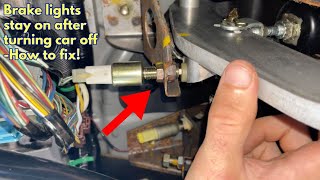

Before replacing the switch, check the small plastic or rubber stopper on the brake pedal arm where it contacts the switch plunger. These stoppers can become brittle and break. If it's missing, the switch won't be pressed, causing the brake lights to stay on. This is a very common issue and a much cheaper fix.
🎬 See how to replace a broken brake pedal stopperChoosing the Right Aftermarket Brake Light Switch
For a part like a brake light switch, a quality aftermarket replacement is often a reliable and budget-friendly choice compared to a dealer part. The brands available can be grouped into tiers based on general reputation for quality and materials.
Brand Quality Tiers

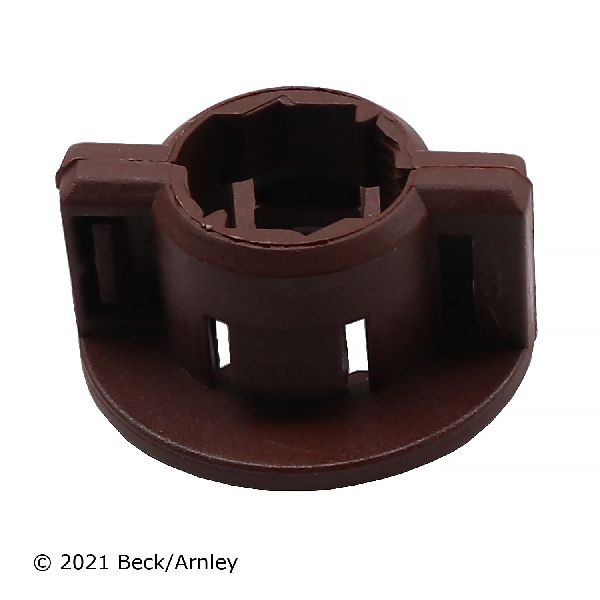

- OEM-Equivalent Brands (Highest Quality): Brands like Beck Arnley are known for sourcing parts that match the original equipment (OE) form, fit, and function. They are often a top choice for a replacement that aims to be as close to factory-spec as possible without the dealer price tag.
- Reputable Aftermarket Brands (Good Quality): Standard Ignition (also known as Standard Motor Products or SMP) and Holstein are well-regarded manufacturers in the aftermarket industry. They produce reliable parts that meet or exceed industry standards and offer a great balance of quality and value.

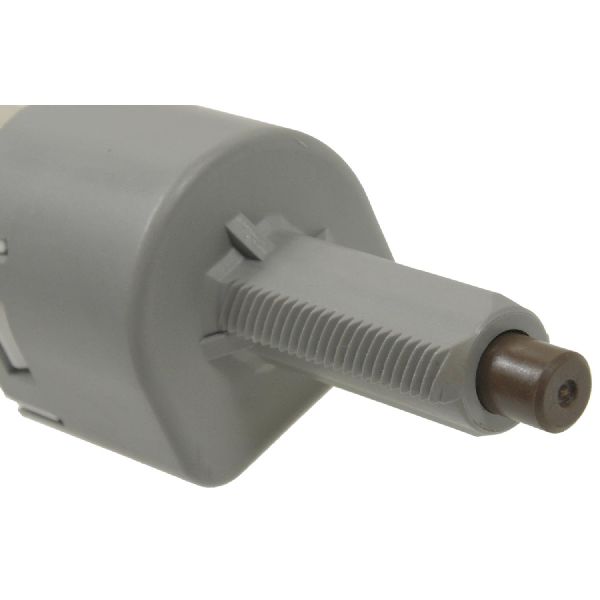

- Standard Replacement Brands (Value-Oriented): Brands like True Tech, Vemo, and Replacement offer a functional and cost-effective solution. These parts will get the job done and are a good option for those on a tighter budget.
Match the Terminals
Your Scion xB may have a 2-pin or 4-pin switch, especially depending on whether it has cruise control. Always verify the number of electrical terminals on your original switch before ordering a new one. Part numbers can vary between the first generation (2004-2006.5) and second generation (2008-2015).
Cost of Replacing a Scion xB Brake Light Switch
Replacing the brake light switch is an inexpensive repair, whether you do it yourself or have a shop handle it.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $16 - $62 |
| New Aftermarket | $24 - $44 |
| Shop Labor | $50 - $75 |
| Total (Shop Repair) | $74 - $119 |
Frequently Asked Questions
Can I replace the brake light switch myself?
Yes, this is a great DIY job for beginners. The switch is located just above the brake pedal. It is typically held in place by a plastic nut or clip that you can twist off by hand or with simple tools. The process involves disconnecting the electrical connector, unscrewing the old switch, screwing in the new one, and reconnecting the plug. It usually takes less than 30 minutes.
Is a bad brake light switch dangerous?
Yes. If your brake lights don't work, drivers behind you won't know you are slowing or stopping, which is a major safety hazard. If the lights are stuck on, it can confuse other drivers and drain your battery. It's a repair that should be done immediately.
How do I know it's the switch and not the bulbs or a fuse?
If all brake lights stop working at once, the switch or a fuse is a likely culprit. If only one light is out, it's probably a bulb. If symptoms like cruise control failure or VSC lights appear along with the brake light issue, it points more strongly to the switch. Always check the 'STOP' fuse in your fuse box first, as it's the easiest check.
Do I need to adjust the new switch?
Most aftermarket switches are designed to be direct-fit. When installing, ensure that when the brake pedal is not touched, the switch's plunger is fully depressed. When you press the pedal, the plunger should release. You can test this by having someone watch the brake lights as you manually operate the plunger before finishing the installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84340-69025 84340-47010 84340-19025 84340-09310
Located on the brake pedal support bracket. Typically a 2-pin or 4-pin electrical connector. Plunger-type, normally closed switch.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
